6-6 Options and Accessories
1 Rack Mount Ear 107-049 2
2 Screw, 6-32 x 1/2 Inch 0-035 6
FHMS, Phillips
3 Front Locking Bracket 107-042 1
4 Rear Locking Bracket 107-043 2
5 Screw, 6-32 x 3/8 inch 0-043 4
PHMS, Phillips
Additional Parts for Model RM-3H2-H
6 Rack Mount Handle 107-433 2
7 Screw, 8-32 x 3/8 inch 0-081 4
FHMS, Phillips
Item Description P/N Qty
* Remove and discard two screws above front fan slots.
Replace with two longer screws (Item 2).
† The tabs on the front mounting bracket (Item 3) will slide
into corresponding fan slots on the controller to the left.
The bracket must be mounted to the controller on the right
to avoid interfering with fan operation.
‡ The Model RM-3H2 is the basic Rack Mounting Kit. The
Model RM-3H2-H adds the two handles (Item 6) and
associated screws (Item 7).
NOTES
6
1
7
2
7
5
4
2
4
2
3
7
2
6
7
1
M
o
d
e
l
3
3
0
M
o
d
e
l
3
3
0
*
†
‡
*
‡
C-330-U-6-5

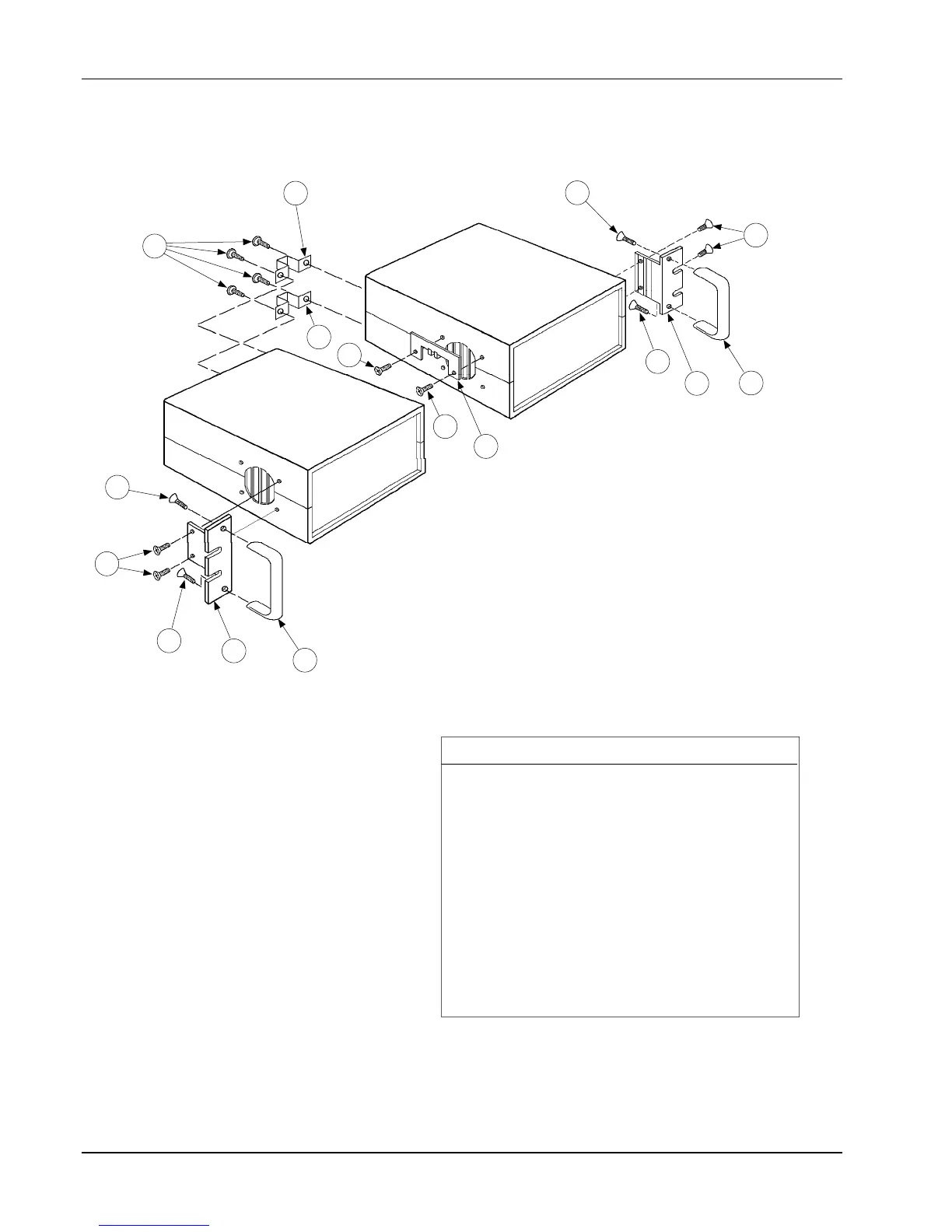

Figure 6-5. Model RM-3H2(-H) Dual Rack-Mount Kit
