29
5

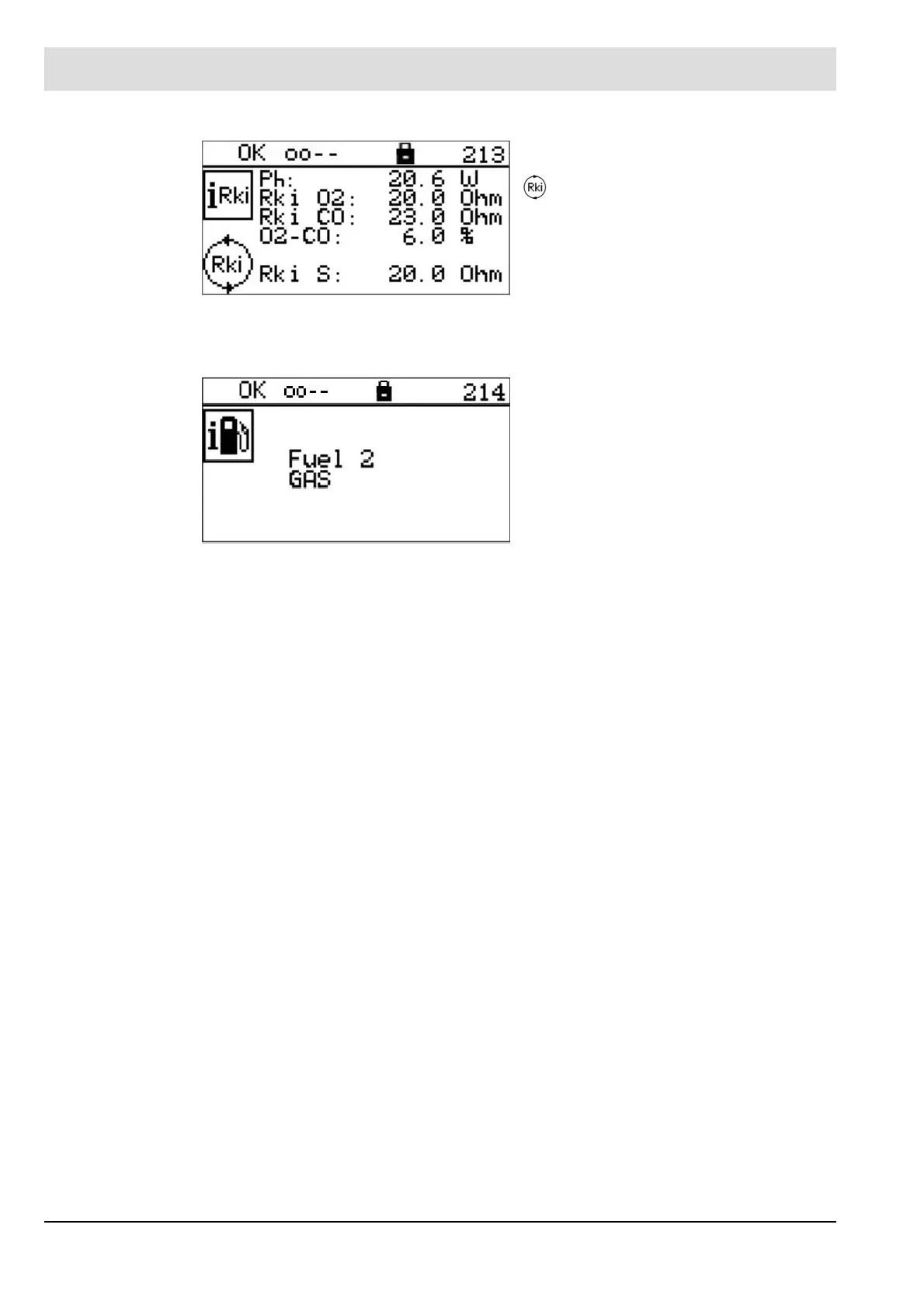

Maintenance
The R
ki
internal probe resistance values
lie between 15
...
25
ļ
.
Display of whether the internal probe
resistance regulation is active!
P
h
Display of the current heating capacity
R
ki
S
Display of the setpoint value for the
internal resistance regulation.
O
2
-CO:
Evaluates the cross-talk response
between the O2 and CO electrodes.
If the influence is too large (>15
%), the sen-
sor signals overwrite each other
.
Currently selected fuel.
29
31
Table of Contents
Default Chapter
3
Table of Contents
3
1 Important Information about the Manual
5
Validity of These Instructions
5
Information on Using this Operating Manual
6
2 General Safety Instructions
7
Classification of the Safety Instructions and Warnings
7
Proper Use - Conditions of Use
8
Permissible Users
9
Safety Equipment/Safety Measures
10
3 Product Description
12
Designs and Accessories of the KS1D Combination Probe
12
C: Declaration of Conformity
14
4 Display and Operational Controls
16
Operation
17
Menu Structure
17
Information Menu Structure
18
Calibration Menu Structure
18
Settings Menu Structure
19
Status Line
20
Main Menu
21
Main Menu - Password Entry
22
Main Menu - Information
23
Main Menu - Calibration
24
Main Menu - Settings
25
LSB Remote Software (Optional)
26
External Operation Via Programming Unit (Optional)
27
5 Maintenance
28
Checking/Calibrating the KS1D Combination Probe
28
Checking/Calibrating the Air Voltage (Offset)
28
Checking/Calibrating the O 2 Electrode
28
Checking/Calibrating the CO/H 2 Electrode
28
Reading the Measured Values
29
Enter the Password for the Access Level
31
Activate/Deactivate Maintenance Mode
32
Response of the Internal Resistance Regulation
33
Premature Cold Start Termination
34
Calibrating the Probe
35
5.1.9.1 Offset Calibration Perform to 21 % O2
36
Calibrating the O 2 Electrode in the Operating Point
38
Perform a Calibration of the CO/H Electrode
40
Checking/Calibrating with Test Gas
41
Checking/Calibrating with Reference Measurement
45
Simple Function Test of the CO/H Electrode
46
Wear-And-Tear Parts of the KS1D Combination Probe
46
Settings
47
5.2.1 Maintenance Mode
47
Filter Time
47
Analogue Outputs
48
Replacing a Probe
48
Display
48
Limit Values
48
6 Correcting Faults
50
Faults and Warnings
50
Faults
51
Warnings
54
Call of the Fault History
56
7 Decommissioning
57
Protection against Emissions from Gas Carrying Channels
57
8 Options
58
Analogue Outputs Via LSB Module Current, Alternative Voltage, LSB Address 19
58
Functional Description
58
Factory Setting of Analogue Outputs Via LSB Module
59
Conversion of the Output Range Via the User Interface
60
Digital Outputs Via LSB Module, LSB Address 03 and 51
61
Functional Description
61
Factory Setting of the Digital Outputs
62
Settings
63
Diagnosis of the Digital Outputs
64
Digital Inputs Via the LSB Module, LSB Address 11 and 55
65
Functional Description
65
Factory Settings of the Digital Inputs
66
Diagnosis of the Digital Inputs
66
Technical Data for HART Module
67
Functional Description
67
HART Commands and DIP Switch Settings
68
Field Bus Module for PROFIBUS PBM100
68
DIP Switch 8
68
Leds
69
PROFIBUS DP Communication
69
Communication Appendix
70
External Connection
72
LSB Module for Calculating Combustion Efficiency
72
Functional Description
73
9 Storage
76
Storage Conditions
76
10 Disposal Notes
77
Environmental Protection, Waste Disposal
77
11 Appendix
78
Wet/Dry Measurement Deviations, Conversion Table
78
