W a t e r
T r a p
Cut the
Sample
Tubing
Sample
Tubing
S a m p l e
P o i nt
Gas Port
Connector
Standard Water Trap and Sample Tubing
In sert
H
2
S
Fi lte r
Modified Water Trap and Sample Tubing with H
2
S Filter
5K-MNL-GEM5000 GEM5000 Gas Analyzer
H2S filter:
Instructions
for use:

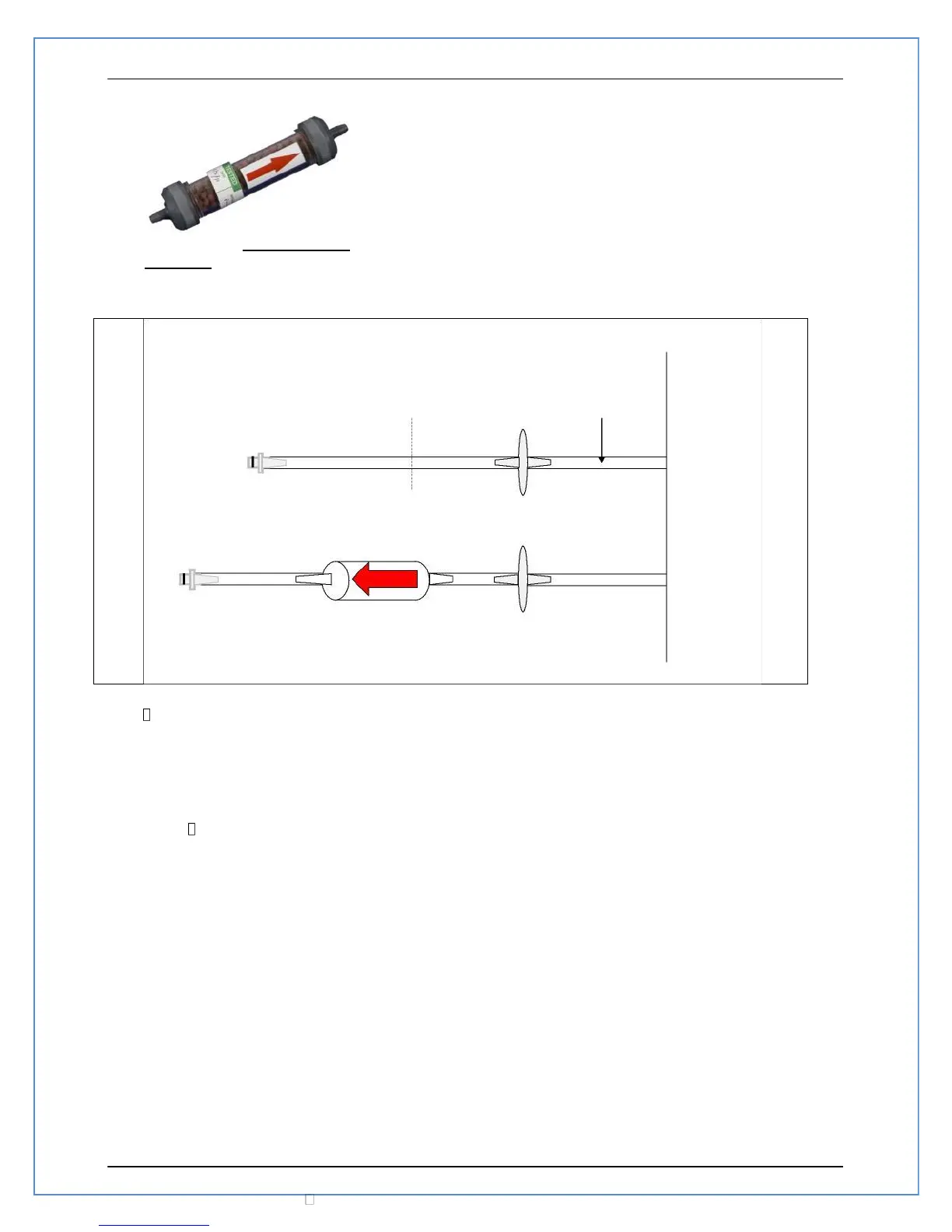

The following diagram shows how to modify the standard water trap and sample
tubing to fit the H2S filter.
Note: When onsite the field technician must have an unmodified water trap
assembly in addition to the modified water trap with a H2S filter in order to
take readings with and without a filter.
1) Once the H2S filter is fitted follow the instructions as detailed on the front of the
gas analyzer displayed when taking readings using a H2S filter.
Note: This is only for analyzers fitted with the CO compensated cell. Please
refer to section 4.2 GEM5000 Part Number Legend
