Board Layout CoBox-Mini
3-2
Board Layout

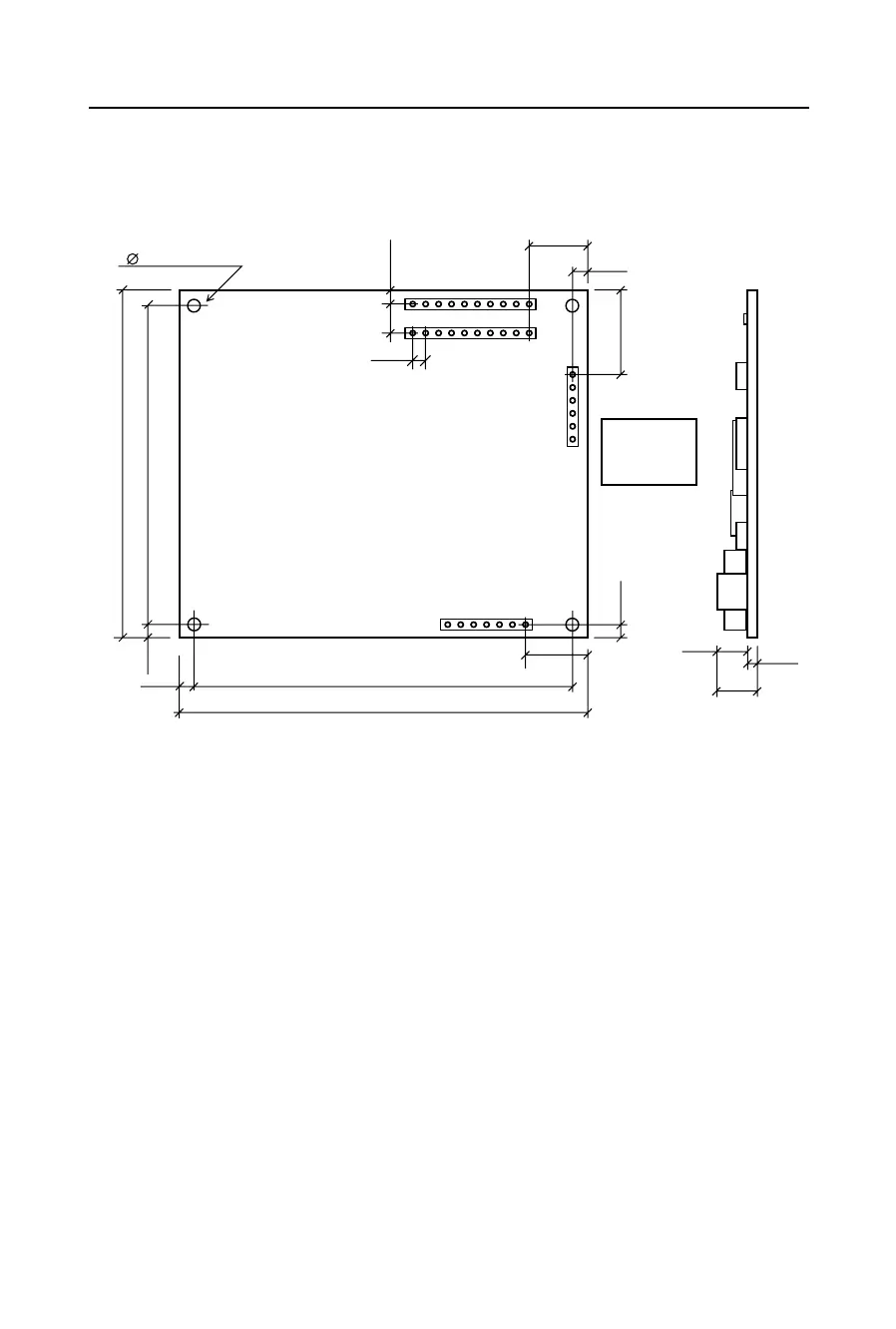

Figure 3-1: CoBox-Mini Board Layout
Connectors
The CoBox-Mini has four connectors:
1 TTL serial port (CON1)
2 AUI connector (CON2)
3 UTP connector (CON3)
4 TTL serial port 2 and full handshaking signals (CON4)
At the time of ordering, each connector can be specified with the following pin
configurations:
! Not present
! Top mounted, length of 5.46 mm or 6.76 mm
! Bottom mounted, length of 5.46 mm or 6.76 mm
CON1
CON4
CON2
CON3
10.5
[0.413]
mm
[in]
Units:
9.8
[0.386]
3.5
[0.138]
2.54
[0.1]
3.0 [0.118] 4x
2.5
[0.098]
75.0 [2.953]
80.0 +-0.20 [3.150 +-0.008]
2.54
[0.100]
2.5
[0.098]
15.9
[0.626]
5.08
[0.2]
2.7
[0.106]
65.0 [2.559]
70.0 +-0.2 [2.756 +-0.008]
5.7
[0.22]
1.57
[0.062]
7.27
[0.282]
