Serial
Services > Serial
RS485 is a protocol supported by the serial port of Lantronix Router E220. Using a switch located on
the hardware, you can configure RS485 in half-duplex or full-duplex mode.
If RS485 is selected in half-duplex mode, you need to connect (short)
B pin to Z pin
A pin to Y pin
For more details, please refer section 13.1

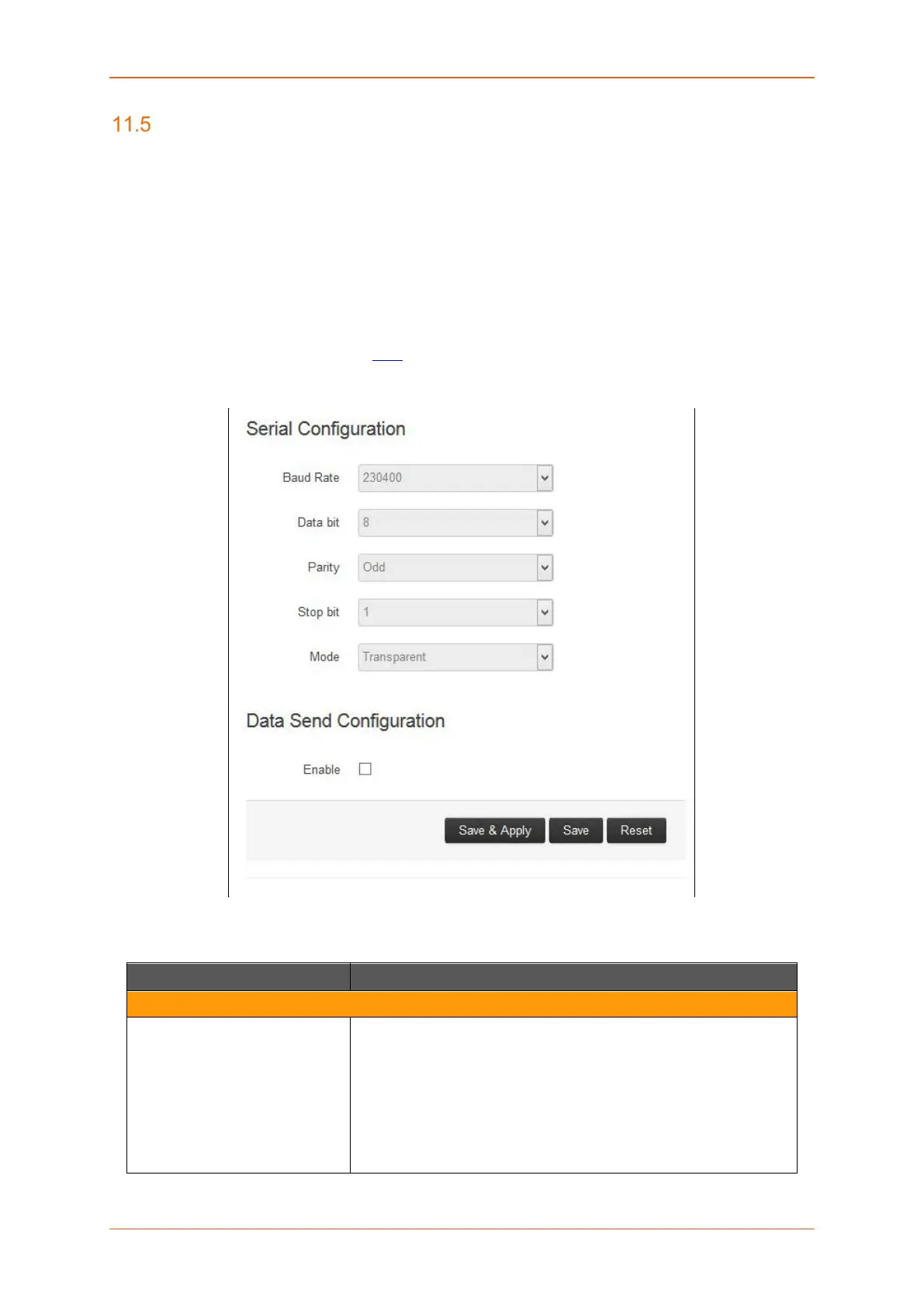

Screen 12-5a: Serial Configuration
Parameters Description
Serial Configuration
Baud Rate Select a baud rate from the dropdown lis.
• 230400
• 115200
• 57600
• 38400
• 19200
• 9600
