Status
E220 Series Cellular Router User Guide 46
Connection
Status > Realtime Graphs > Connection
Connection graphs provides an overview of active network connections; those originating from the
Router and also those that are originating from LAN/WAN of the Router.

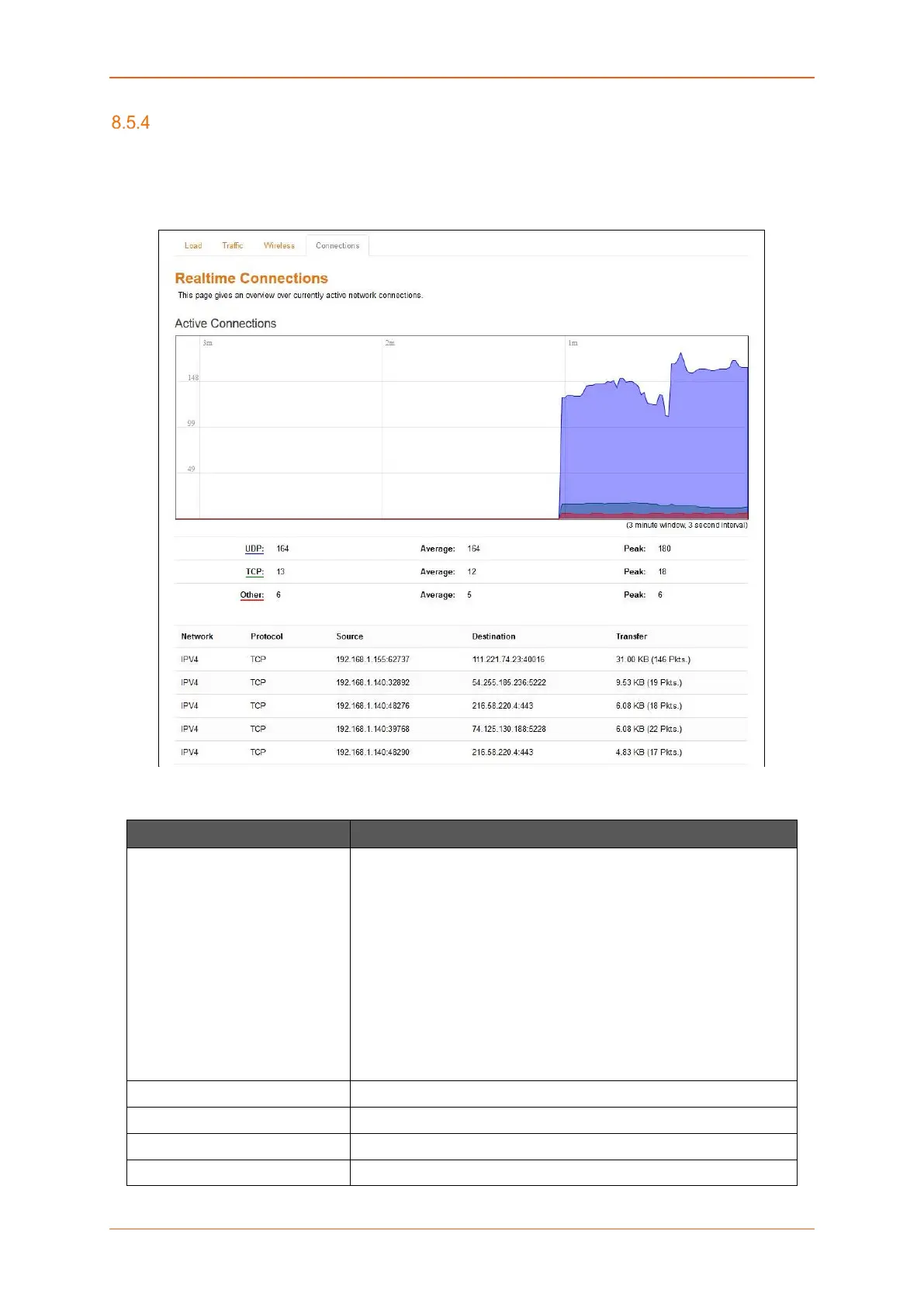

Screen 8-10: Real Time Connection Traffic Graph
Parameters Description
Protocol Graph shows the periodic average of data transfer using specific
protocols on the Router using the active connections in real time.
Details
• X axis – Time Interval (1 minute)
• Y axis – Number of Active Connections
Legends
• Blue – UDP
• Green – TCP
• Red – Other Protocols
Network Network connection type, IPv4 or IPv6.
Protocol Name of the protocol used for routing data.
Source Source IP Address and port number of an active connection.
Destination Destination IP Address and port number of an active connection.
