App. M - Outline Drawing: Pole Mount (2.0” pipe, 53.0 mm), Antenna Unit
NOTE: The Pole Mount (2.0” pipe, 53.0 mm), Antenna Unit interfaces to a pipe of maximum 2.0”
(53.0 mm), measured outer diameter. The total weight of the Pole Mount is 0.24 kg (0.53
lbs).

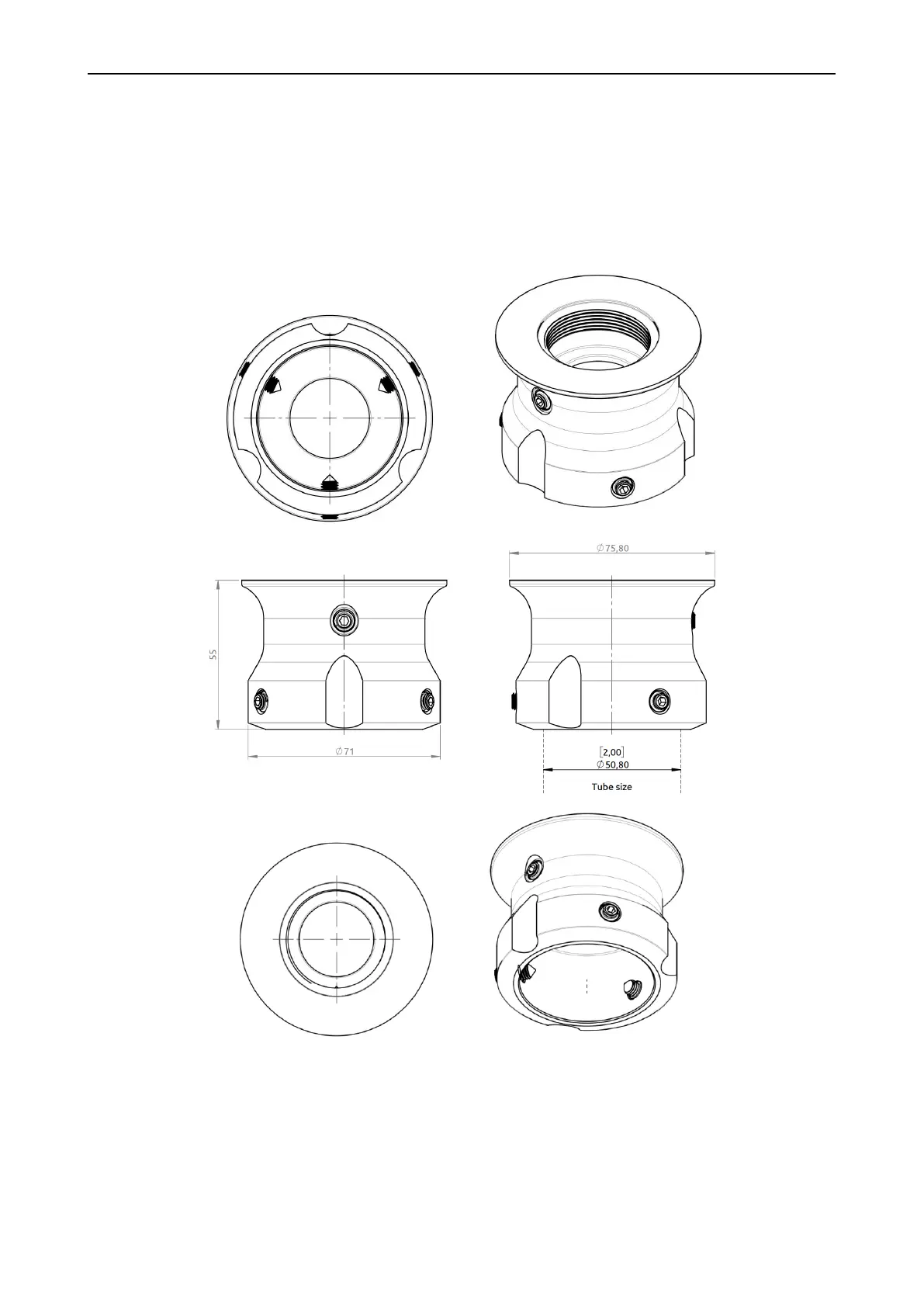

Figure 194: Outline Drawing: Pole Mount (2.0” pipe, Ø53.0 mm), Antenna Unit
