LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 23 of 155
Pole Mount (1.5” pipe, 38.8 mm), Antenna Unit
The Pole Mount (1.5” pipe), Antenna Unit is illustrated in Figure 25 to Figure 27.
Pole mount installation procedure:
1. Feed the coaxial cable through the pole mount
2. Fasten the coaxial cable to the LT-3130 Antenna Unit (N connector)
3. Apply self-volcanic tape on the N connector and cable to protect against saltwater and corrosion
4. Screw the pole mount (clockwise) on the LT-3130 Antenna Unit, and fasten the antenna lock pinot
screw, as illustrated in Figure 27 (max torque = 1.2 Nm)
5. The LT-3130 Antenna Unit and pole mount can now be mounted on the 1.5” pipe. Fasten the three
pole lock pinot screws, as illustrated in Figure 26 (max torque = 4.5 Nm)
NOTE: Remember to fasten the antenna lock pinot screw (1.2 Nm) after the pole mount and
antenna unit have been screwed together.
NOTE: The Pole Mount (1.5” pipe), Antenna Unit interfaces to a pipe of maximum 1.5” (38.1 mm),
measured outer diameter.

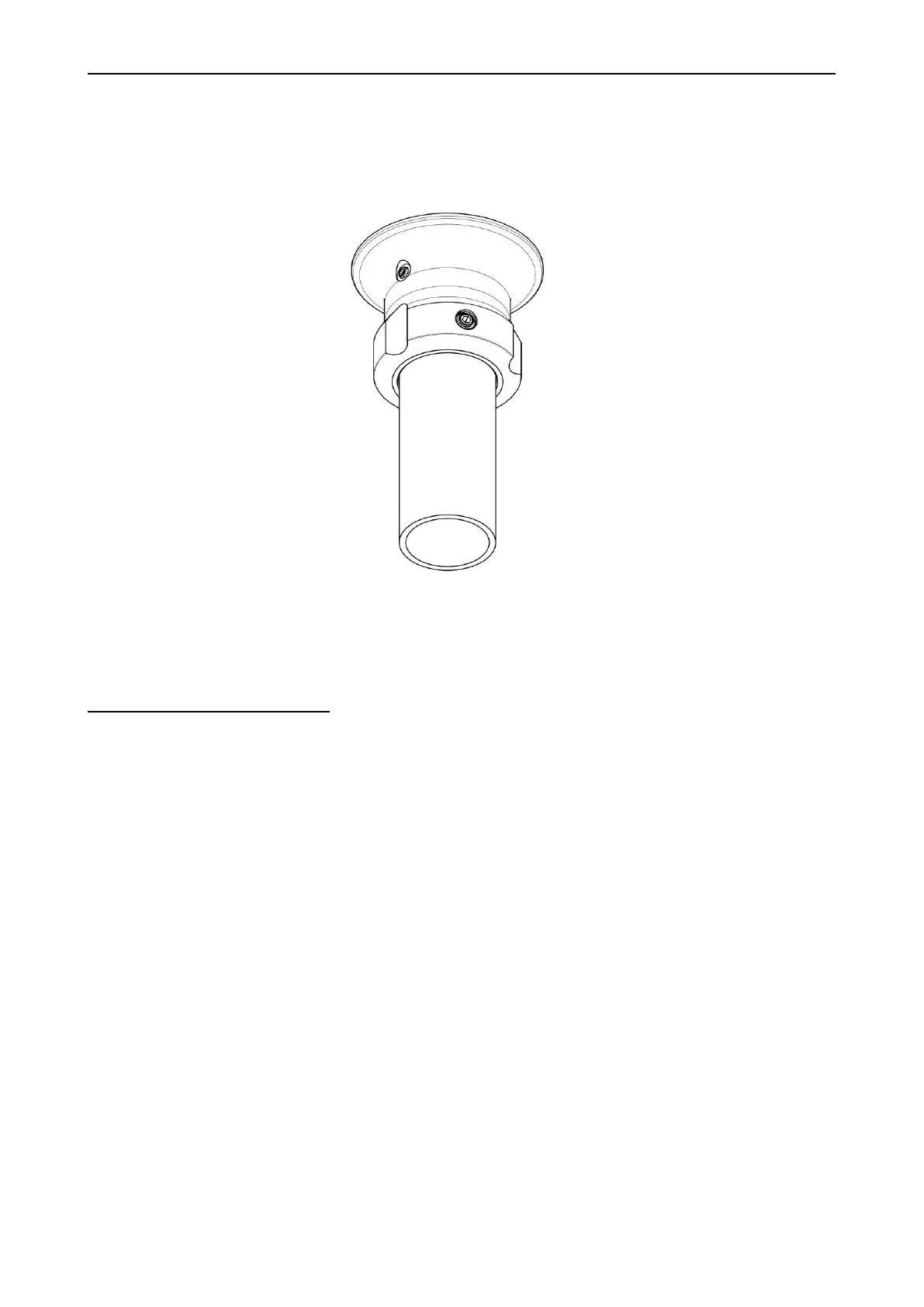

Figure 25: Pole Mount (1.5” pipe),
Antenna Unit.
