External SIP Phones
The LT-3100 system is supporting connection of external SIP phones, up to 8 external SIP phones. The
configuration of the SIP phones must be completed via the web server, see Telephony on page 115. Figure
76 is illustrating the connection of the external SIP phones. Connect the SIP phones directly to the LT-3110
Control Unit Ethernet (LAN port).
NOTE: The SIP phone might require a DHCP Server to get an IP address assigned. Depending on
network setup, it might be needed to configure DHCP Server mode in the LT-3100 system.
The LT-3110 Control Unit UI display (MENU -> System -> SIP Phones) will provide a ‘live’ registration status
of the SIP phones configured from the web server.
An active voice call to/from a SIP phone will be presented in the Status bar with the symbol showed in
Figure 78.

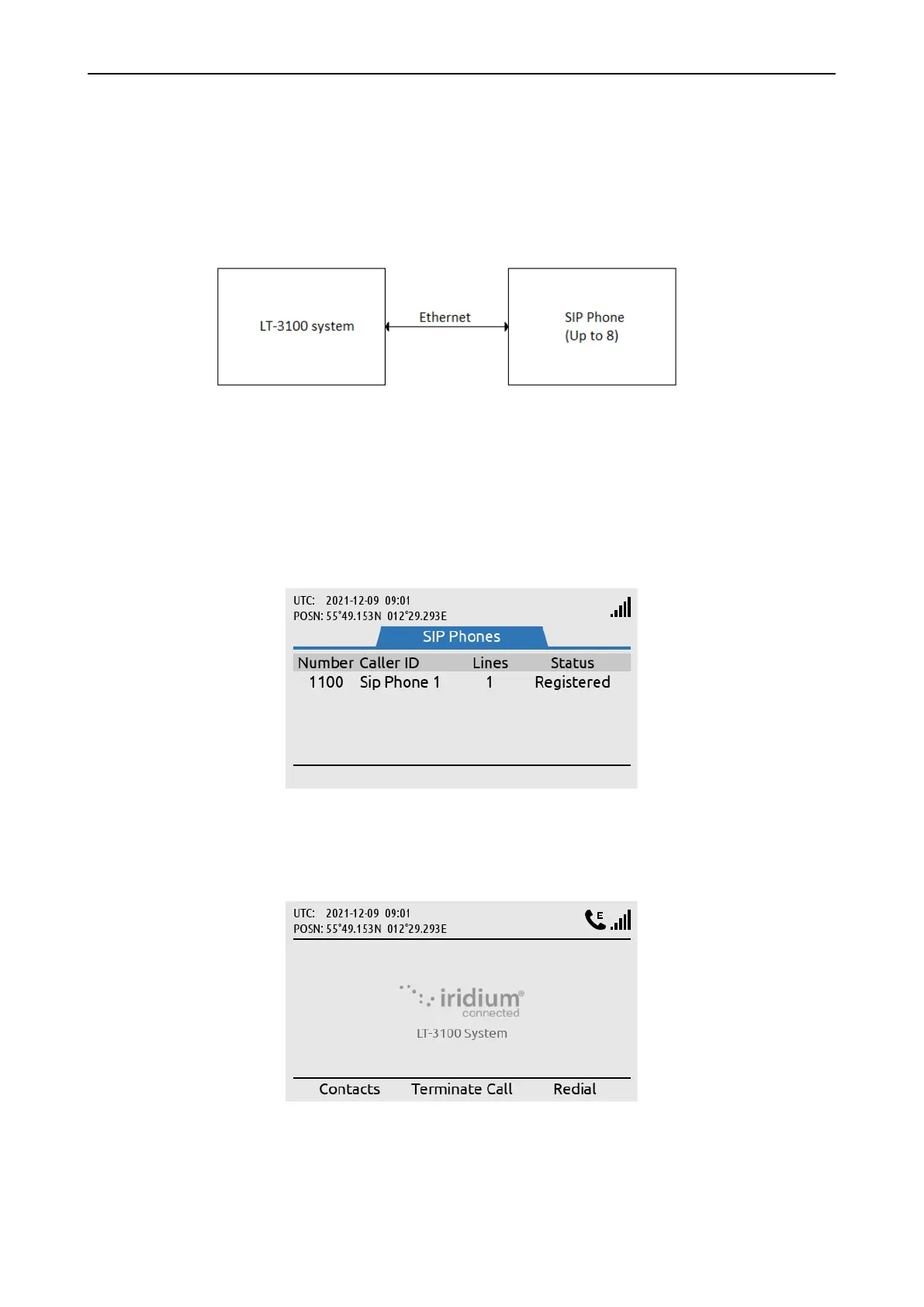

Figure 76: SIP phones
Figure 77: System Submenu (SIP Phones)
Figure 78: External SIP Voice Call
SIP Phones:
MENU -> System -> SIP
Phones
External SIP voice call is
using the satellite
connection. Can be
terminated by using the
soft key ‘Terminate Call’.
