App. N - Outline Drawing: Bracket Mount, Antenna Unit
NOTE: The Bracket Mount (1.5” to 2.5” pipe), Antenna Unit interfaces to a pipe of maximum 2.5”
(63.5 mm), measured outer diameter. The total weight of the Bracket Mount is 714 g (1.57
lbs). A Cable Hose must be used with the Bracket Mount, for details see Bracket Mount
(1.5” to 2.5” pipe), Antenna Unit on page 19. The mount is discontinued.

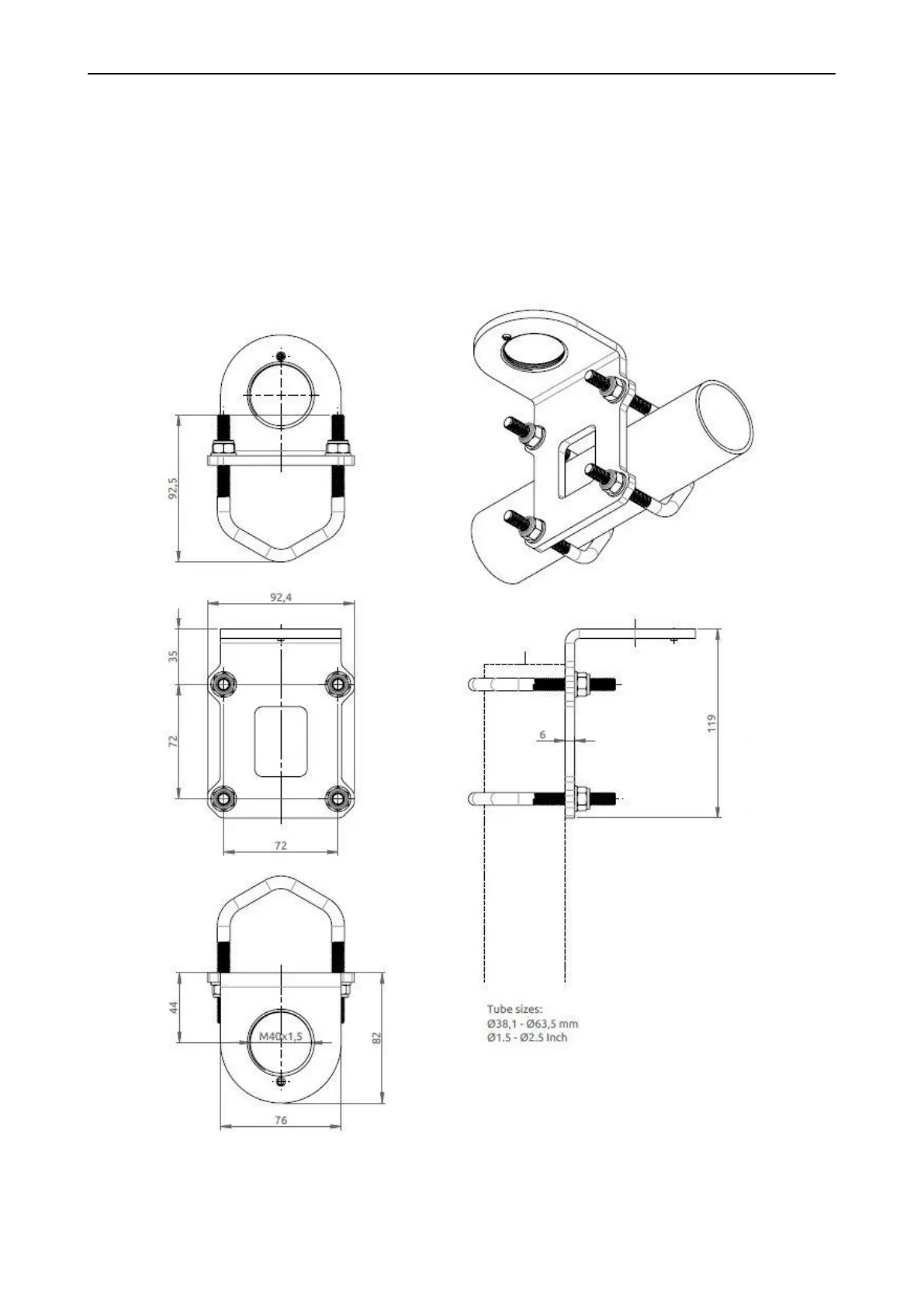

Figure 195: Outline Drawing: Bracket Mount (1.5” to 2.5” pipe), Antenna Unit
