LT-3100 User & Installation Manual Rev. 1.06 Galvanic Isolated Power Supply
Lars Thrane A/S www.thrane.eu Page 41 of 155
Galvanic Isolated Power Supply
Use an IEC 60945 approved AC/DC or DC/DC galvanic isolated power supply for the LT-3100 system. The
galvanic isolated power supply must be used to protect the LT-3100.
AC/DC Galvanic Isolated Power Supply
Connection of an AC/DC galvanic isolated power supply is illustrated in Figure 40.
DC/DC Galvanic Isolated Power Supply
Connection of an DC/DC galvanic isolated power supply is illustrated in Figure 41.

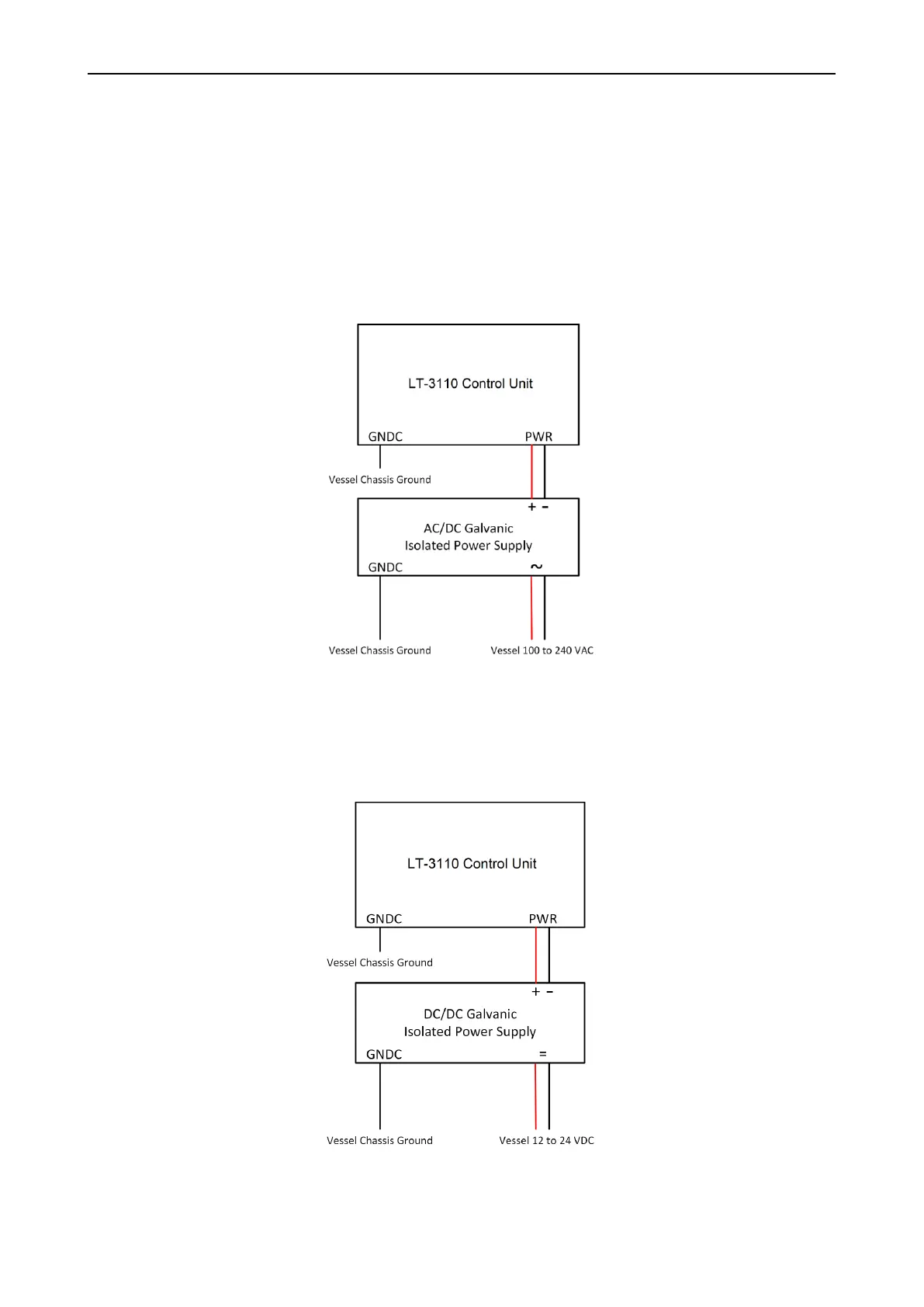

Figure 40: AC/DC Galvanic Isolated Power Supply
Figure 41: DC/DC Galvanic Isolated Power Supply
