LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 19 of 155
Bracket Mount (1.5” to 2.5” pipe), Antenna Unit
The new Cable Hose designed for the Bracket Mount (1.5” to 2.5” pipe), Antenna Unit must be used going
forward as part of the installation. Part Number (P/N): 91-100773 will be replaced with P/N: 91-102469

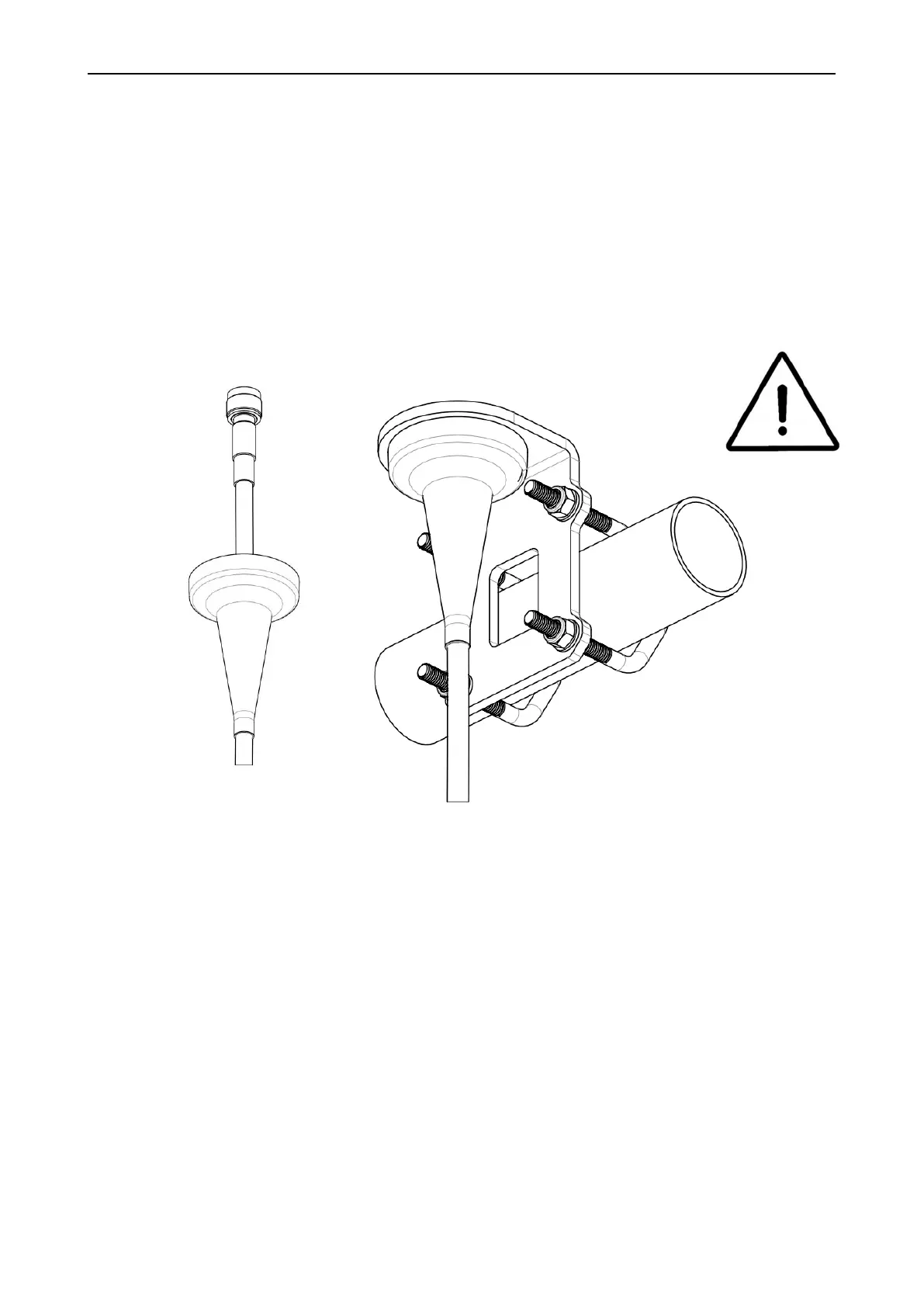

(including the Cable Hose). The Cable Hose is illustrated with the bracket Mount (1.5” to 2.5” pipe) ,
Antenna Unit in Figure 18. The new Cable Hose must be used to protect the LT-3130 Antenna Unit (P/N: 51-
100989) and coaxial cable N connector from corrosion over time. The Cable Hose can be ordered separately
from Lars Thrane A/S on the following P/N: 91-102470 Cable Hose (standalone).
The Cable Hose, incl. installation steps, is more detailed illustrated in document: 43-100773 Bracket Mount
Assembly (Illustrations).
IMPORTANT: The Cable Hose illustrated above with the Bracket Mount (1.5” to 2.5” pipe), Antenna Unit
must be used as part of the installation.
NOTE: The 91-102469 Bracket Mount (1.5” to 2.5” pipe), Antenna Unit has been discontinued.
Please use 91-100774 Pole Mount (1.5” pipe, 38.8mm), Antenna Unit or 91-102520 Pole
Mount (2.0” pipe, 53.0mm), Antenna Unit.
For additional questions about installation of the Bracket Mount (1.5” to 2.5”), Antenna Unit and Cable
Hose, please contact your local distributor.
