LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 22 of 155
To avoid corrosion issues when using the Bracket Mount (1.5” to 2.5” pipe), Antenna Unit - it is
recommended to use the cable hose as illustrated in Figure 23 and in Figure 24. The cable hose consists of a
UV resistant silicone pipe and an aluminum anodized thread block, which can be fastened to the LT-3130
Antenna Unit providing protection to the coaxial cable N connector and surroundings.
NOTE: The cable hose will be included in the new ordering number for the Bracket Mount (1.5” to
2.5” pipe), Antenna Unit. The cable hose can also be ordered separately. See Mounts on
page 4 for more details on the ordering numbers regarding the cable hose.

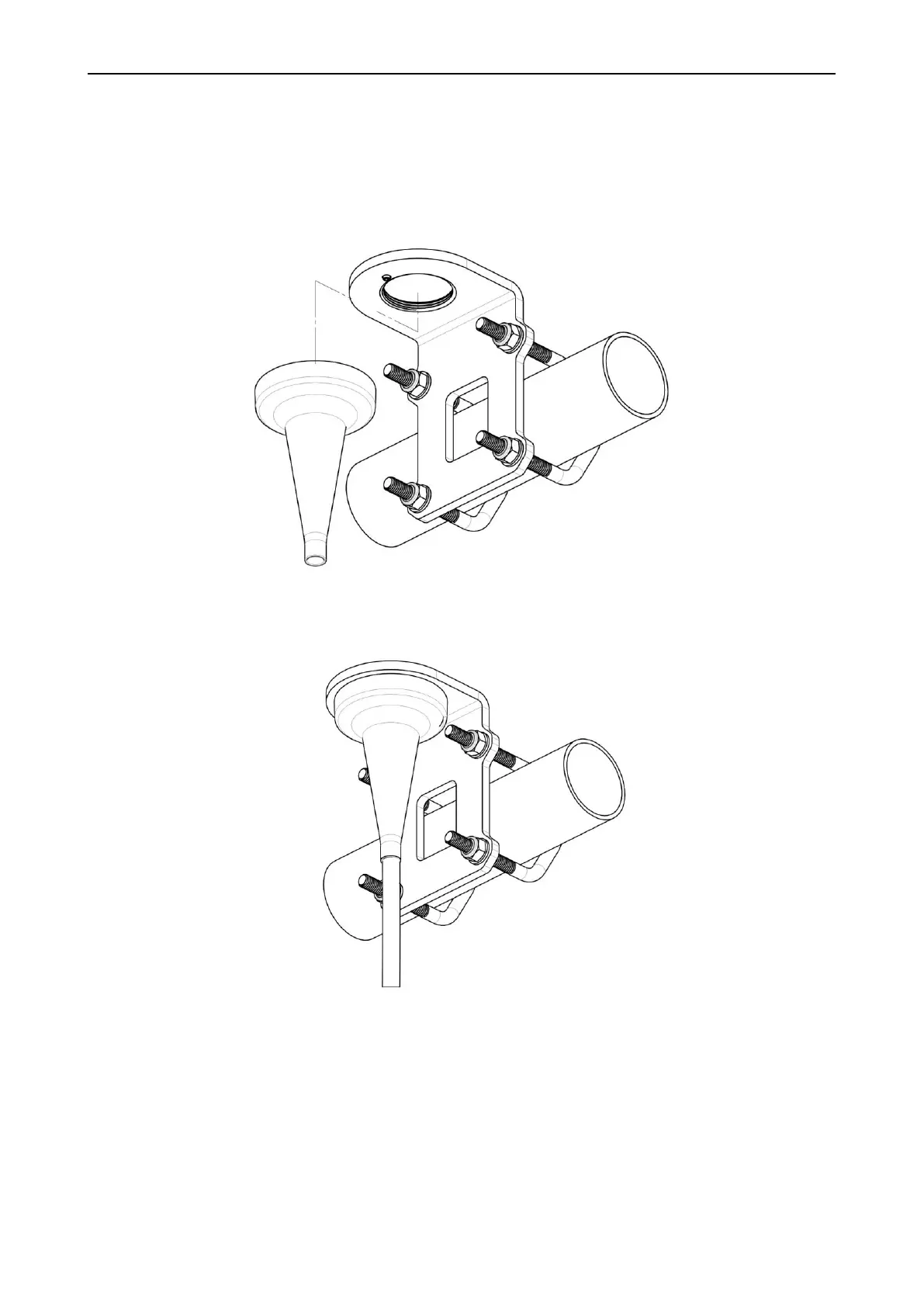

Figure 23: Bracket Mount (1.5” to 2.5” pipe), Antenna Unit with Hose
Figure 24: Bracket Mount (1.5” to 2.5” pipe), Antenna Unit with Hose
