LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 21 of 155
The Bracket Mount (1.5” to 2.5” pipe), Antenna Unit can support pipes in the interval 1.5” to 2.5”. The
torques are specified in Figure 22. The bracket mount, V-bolts, and nuts are all made of A4 stainless steel

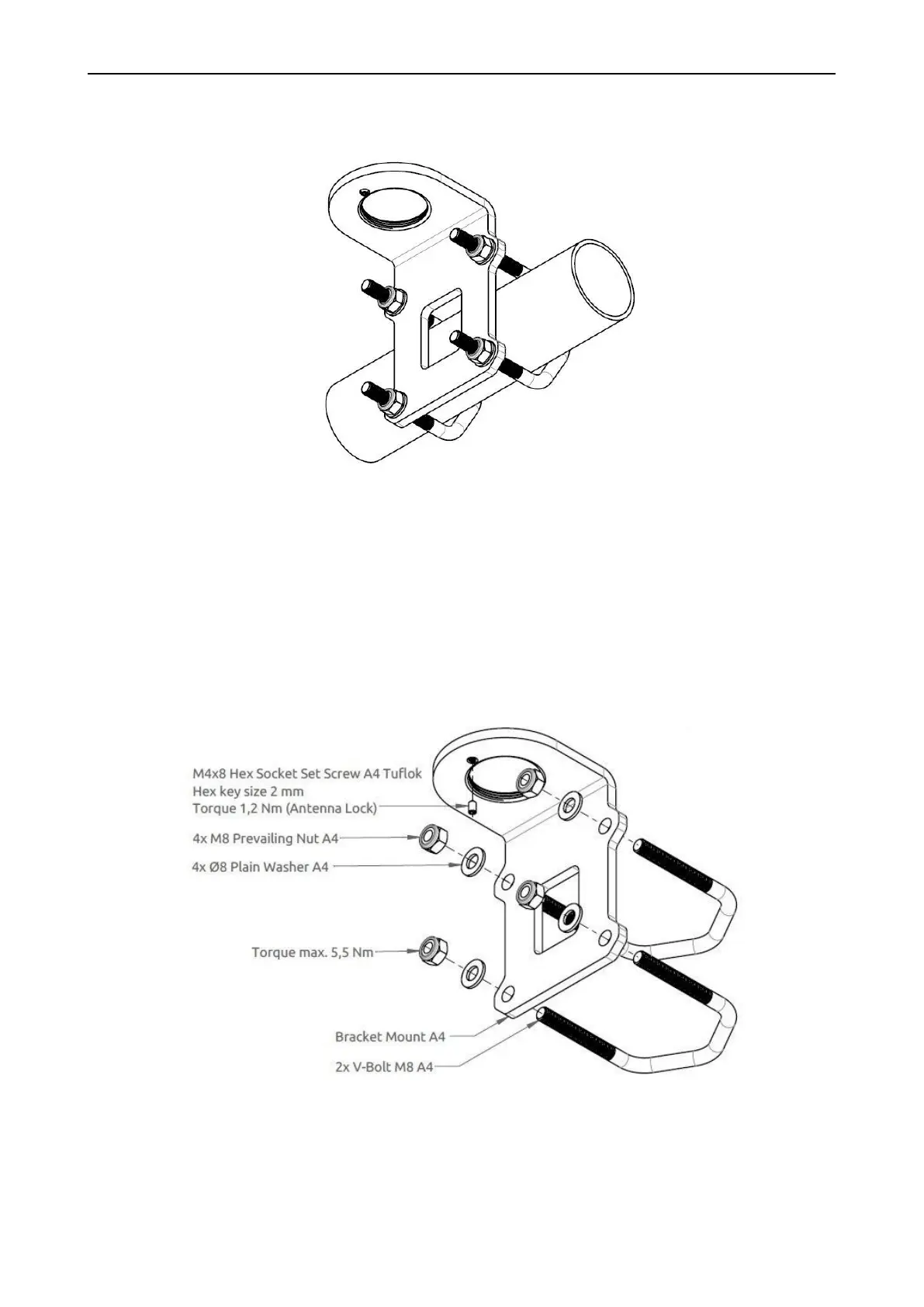

Figure 21: Bracket Mount (1.5” to 2.5” pipe),
Antenna Unit – horizontal pipe mount.
Figure 22: Bracket Mount (1.5” to 2.5” pipe), Antenna Unit – (horizontal pipe mount)
