LT-3100 User & Installation Manual Rev. 1.06 Installation and Mounting
Lars Thrane A/S www.thrane.eu Page 24 of 155
NOTE: The Pole Mount (1.5” pipe), Antenna Unit only supports a 1.5” pipe. The pinot screws
(antenna and pole lock) torques are specified in Figure 26 and Figure 27. The pole mount is
made of milled aluminum (anodized). The pinot screws are made of A4 stainless steel.

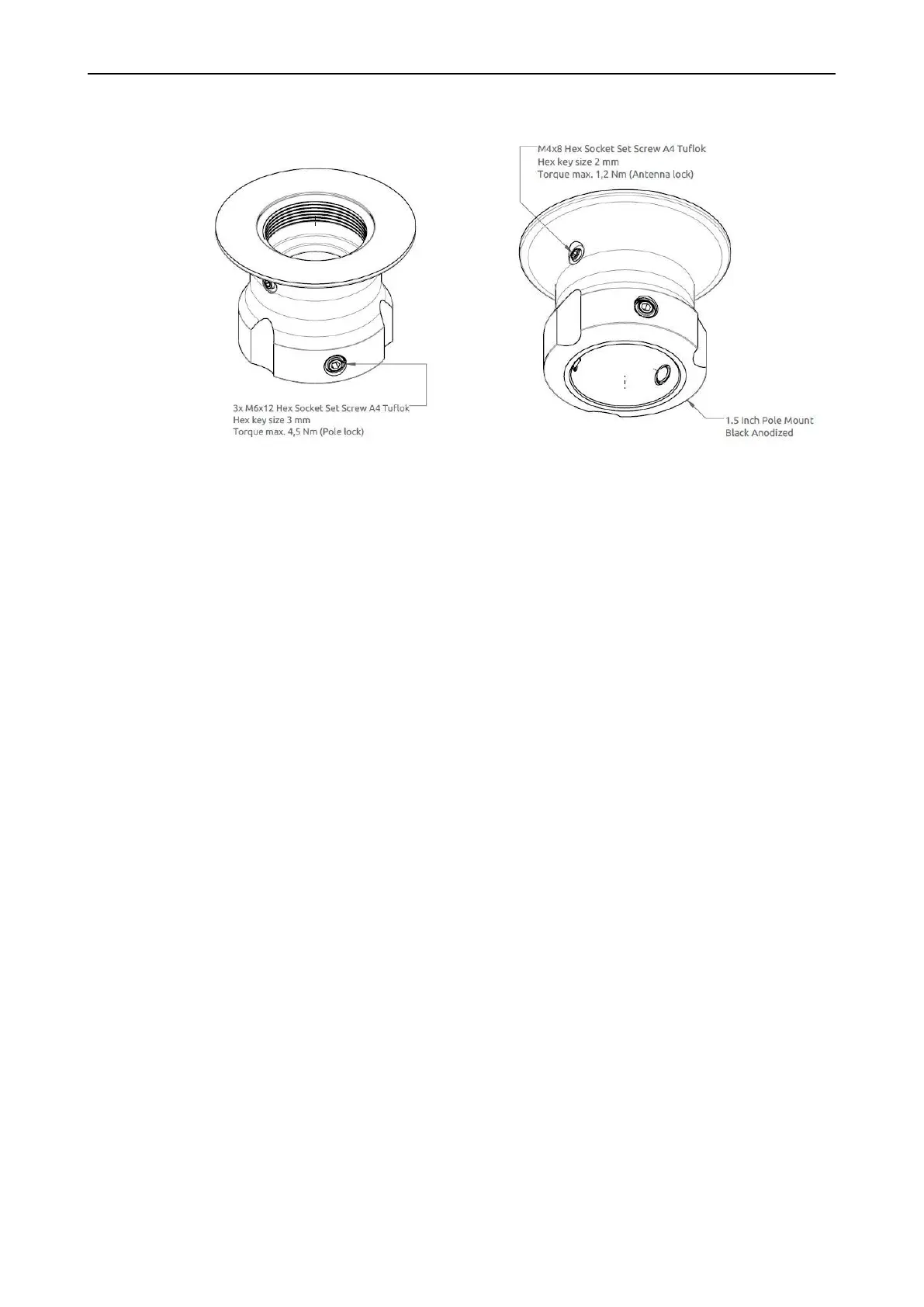

Figure 26: Pole Mount (1.5” pipe),
Antenna Unit.
Figure 27: Pole Mount (1.5” pipe), Antenna Unit.
