The LT-3130 Antenna Unit must be mounted minimum 1 m from MF-HF, VHF, and UHF antennas.
NOTE: The LT-3130 Antenna Unit must be installed with a 360° clear view of the sky. However,
minor obstructions such as a mast will not degrade the antenna performance severely, if a
separation distance larger than 15 times the diameter of the obstruction is kept.
The LT-3130 Antenna Unit must be mounted using one of the mounts listed in Mounts(Mounts) on page 4

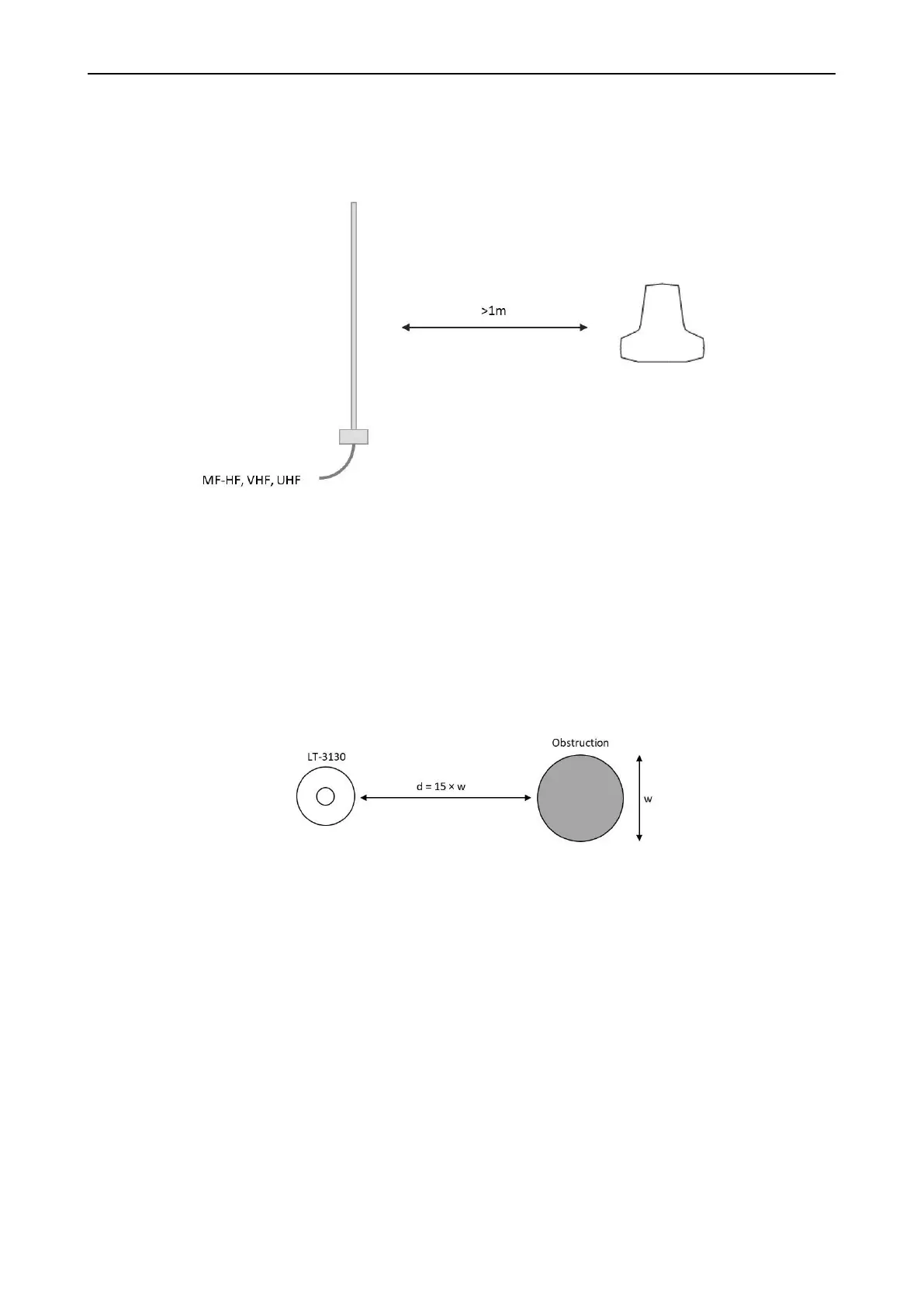

Figure 14: LT-3130 Antenna Unit – Separation to MF-HF, VHF, and UHF antennas.
Figure 15: LT-3130 Antenna Unit – (separation distance
to minor obstructions)
