HVM200 Reference Manual Connecting the Accelerometer 2-8

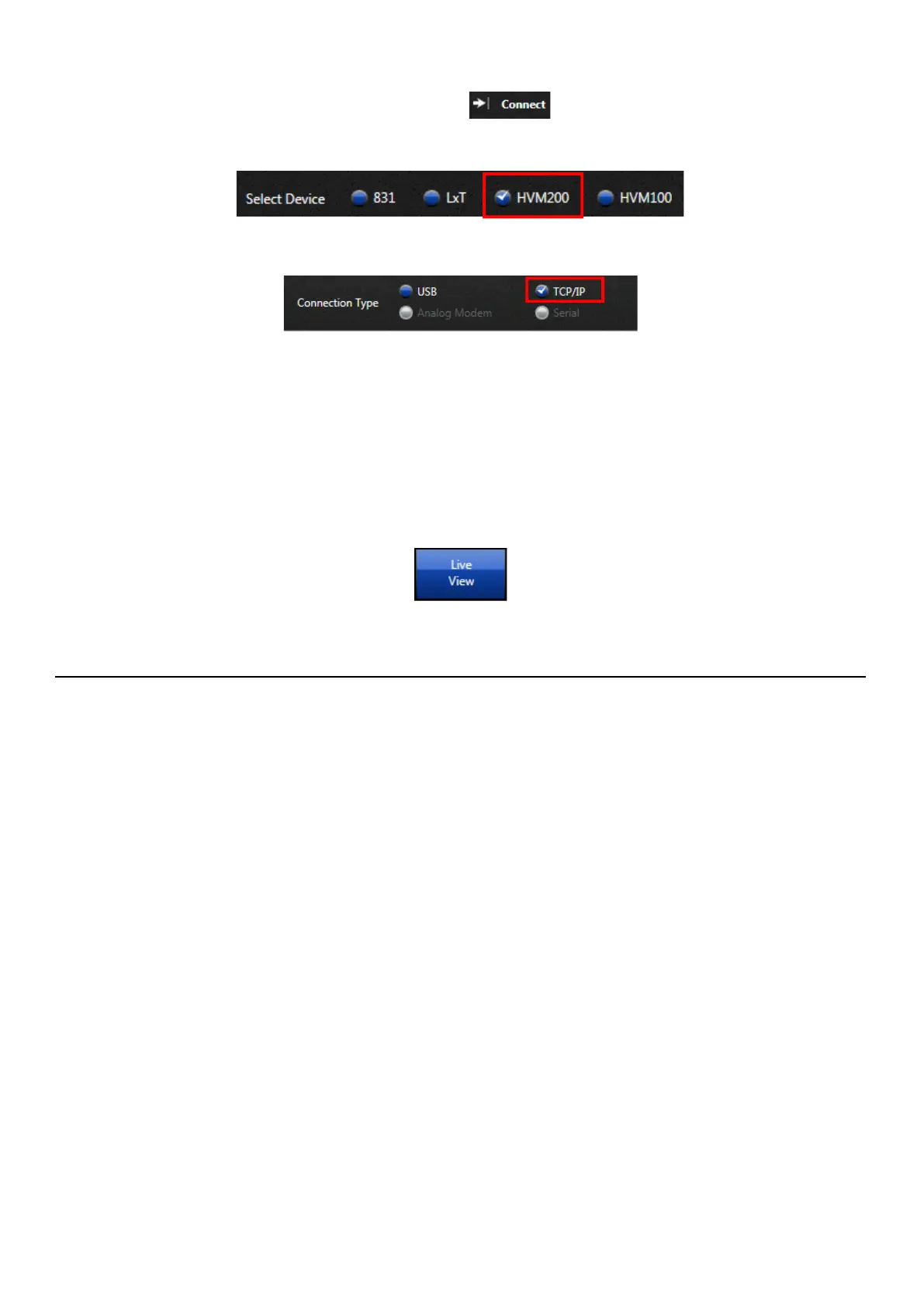

Step 2. Launch G4 and click .
Step 3. Select HVM200 as the device.
Step 4. To connect via TCP/IP, click the Add Meter button.
Step 5. Click inside the text field, and enter the IP address. The Connect button
turns blue.
Step 6. Click Connect.
TAKE NOTE IP address is the only field required to add a meter, unless a password has
been created.
Step 7. Click Live View. The Live View presents the same interface as the
HVM200 App for working with measurements.
2.7 Connecting the Accelerometer
LEARN MORE To view accelerometer options for the HVM200 meter, see
"Accelerometer Options (A, B, C, and D):" on page 1-2
.
Step 1. Insert the accelerometer cable into the 4-pin connector on the HVM200
and then rotate the nut on the cable until the connection is tight.
Step 2. Insert the other end of the accelerometer cable into the 4-pin connector
on the accelerometer and tighten the cable nut.
Step 3. If the HVM200 is not already turned on, press the power button once. The
Power LED should turn blue.
Step 4. Connect the HVM200 to G4 via USB.
LEARN MORE For more information on working with G4 tabs and settings, refer to the
G4 LD Utility Software Manual. In G4, go to Help > Manuals.
Step 5. Click the Setup Manager tab in G4.
Step 6. Under the meter settings (displaying the meter serial number), click the
Sensor tab, and then click Sensor List. This opens the Sensor List page.
