Larson Davis HVM200 Reference Manual

HVM200 Reference Manual Power Button Operation 2-2
TAKE NOTE Make sure the battery contacts are fully seated against the power contacts
in the meter and that the battery lies flat in the tray.

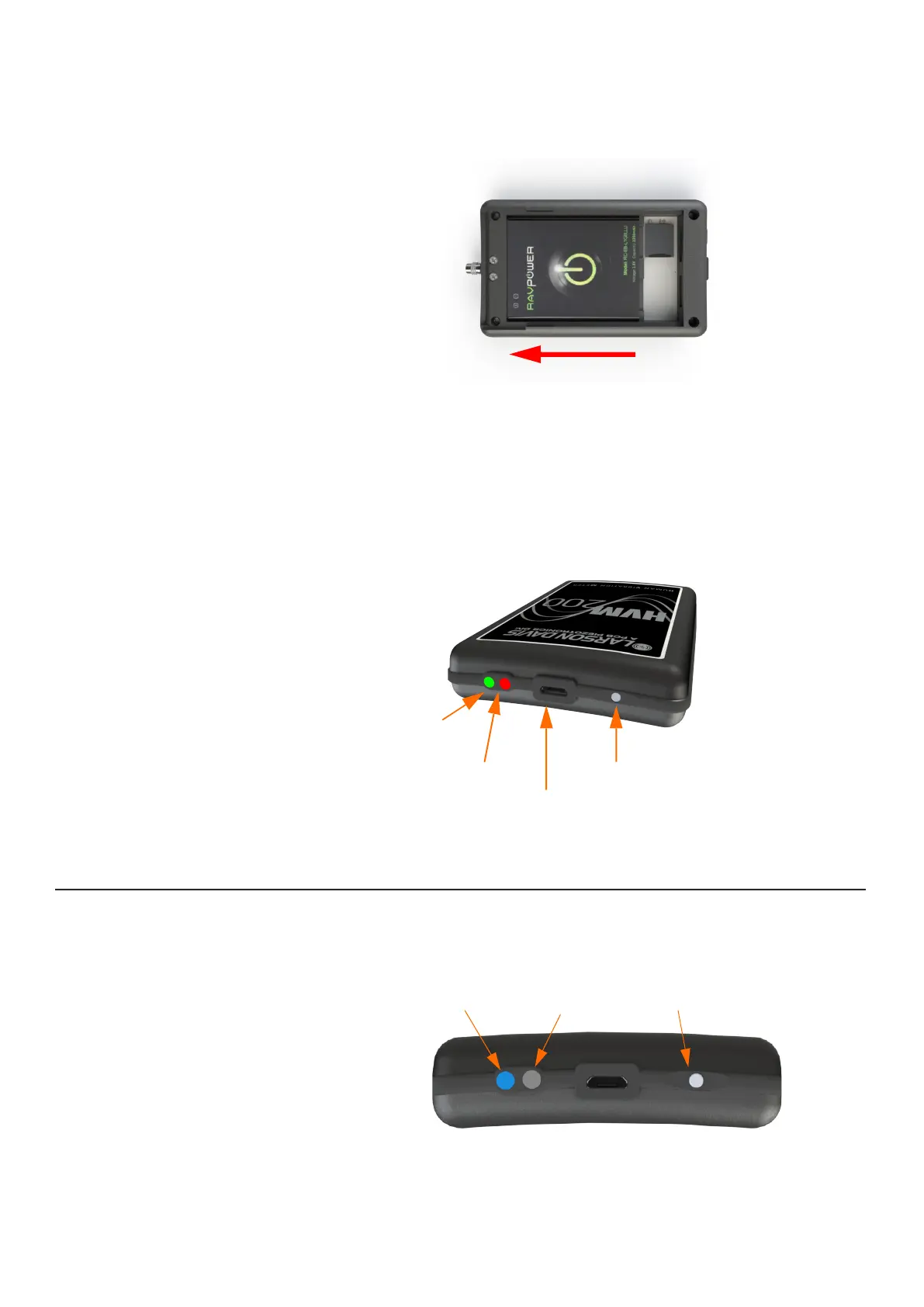

FIGURE 2-1 Insert Battery
Step 3. Slide the back battery cover onto the HVM200.
Step 4. Insert one end of the supplied USB cable into the HVM200 Micro-B USB
port and the other end to the PSA035 charger.
TAKE NOTE Avoid leaving the battery drained for extended periods of time in order to
maximize overall battery life. The Power LED displays a yellow color while charging.
FIGURE 2-2 HVM200 Communication
2.2 Power Button Operation
The HVM200 has one button, which provides each of the following
functions:
FIGURE 2-3 HVM200 Power Button
Turn Meter On
Press the power button until the Power LED shows blue.
Power LED
Status LED
Power Button
Micro-B USB port
The back label of
your HVM200
shows the state of
each LED indicator.
For more detailed
information, see
"LED Indications"
on page A-3
.
Power ButtonStatus LEDPower LED
