HVM200 Reference Manual B-1

Appendix

B Adapter Resonance &

Frequency Response

B.1 Mounting and Installation Details ......................................................................................B-1

B.1.1 Installing the ADP080A ..........................................................................................B-1

B.1.2 Installing the ADP081A ..........................................................................................B-1

B.1.3 Installing the ADP082A ..........................................................................................B-2

B.1.4 Measurements .......................................................................................................B-2

B.1.5 ADP080A + SEN041 ................................................................................................B-2

B.1.6 ADP081A + SEN041 ................................................................................................B-3

B.1.7 ADP082A + SEN041 ................................................................................................B-4

Experimental measurements indicate no resonances within the Wh frequency range for the adapters

ADP080A, ADP081A and ADP082A.

B.1 Mounting and Installation Details

B.1.1 Installing the ADP080A

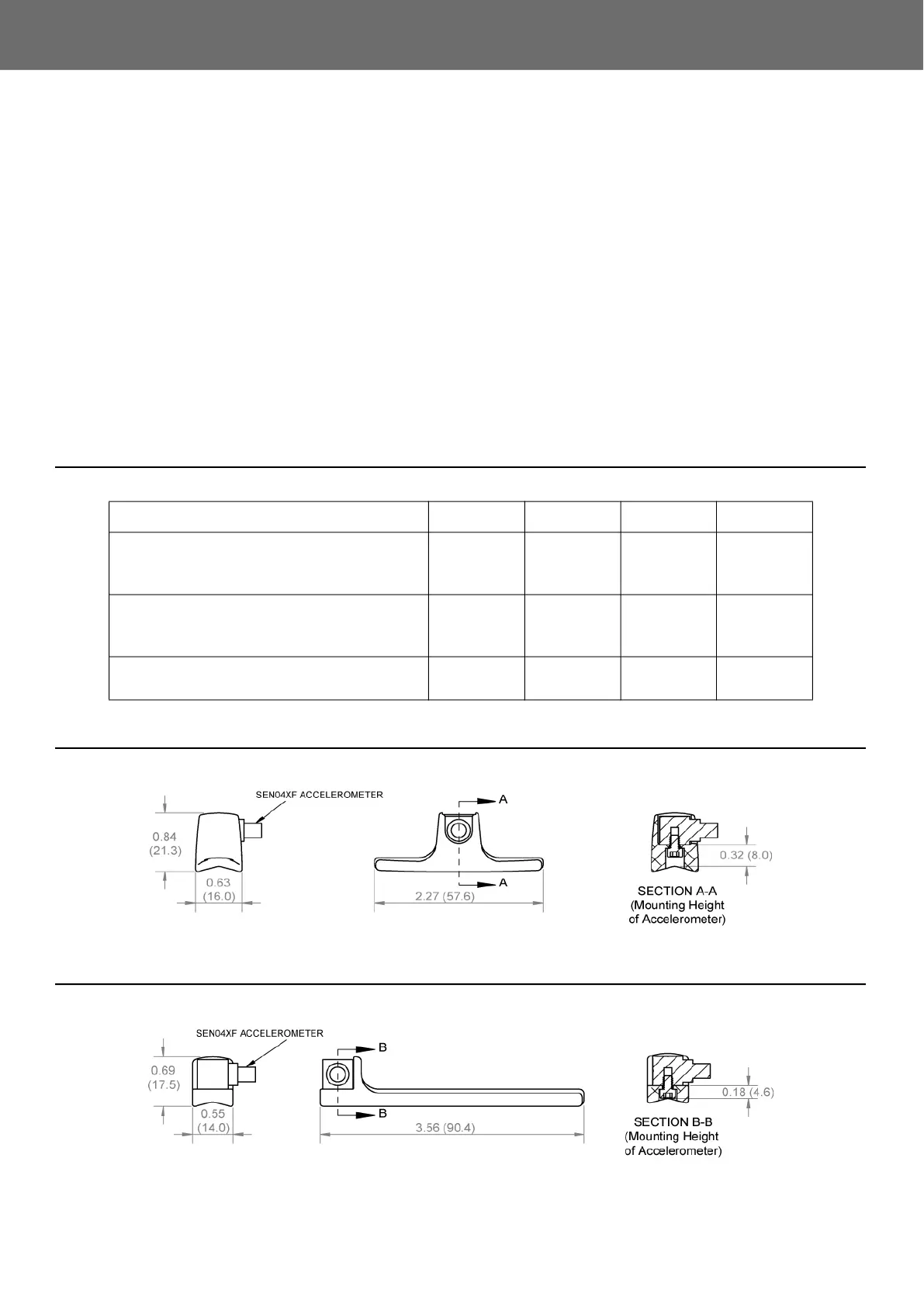

FIGURE B-1 (Hand Adapter with SEN04XF Accelerometer)

B.1.2 Installing the ADP081A

FIGURE B-2 (Handle Adapter with SEN04XF Accelerometer)

Specification Unit ADP080A ADP081A ADP082A

Total Mass of Vibration Sensor & Mounting

System (including sensor, adapter, & mounting

screw)

ounces

(grams)

0.67 (19) 0.74 (21) 0.35 (10)

Mounting Height of Vibration Sensor

(distance between sensor and mounting

surface)

inches (mm) 0.32 (8.0) 0.18 (4.6) 0.32 (8.1)

Adapter dimensions inches (mm) Shown

Below

Shown

Below

Shown

Below
