HVM200 Reference Manual Downloading Data 3-10

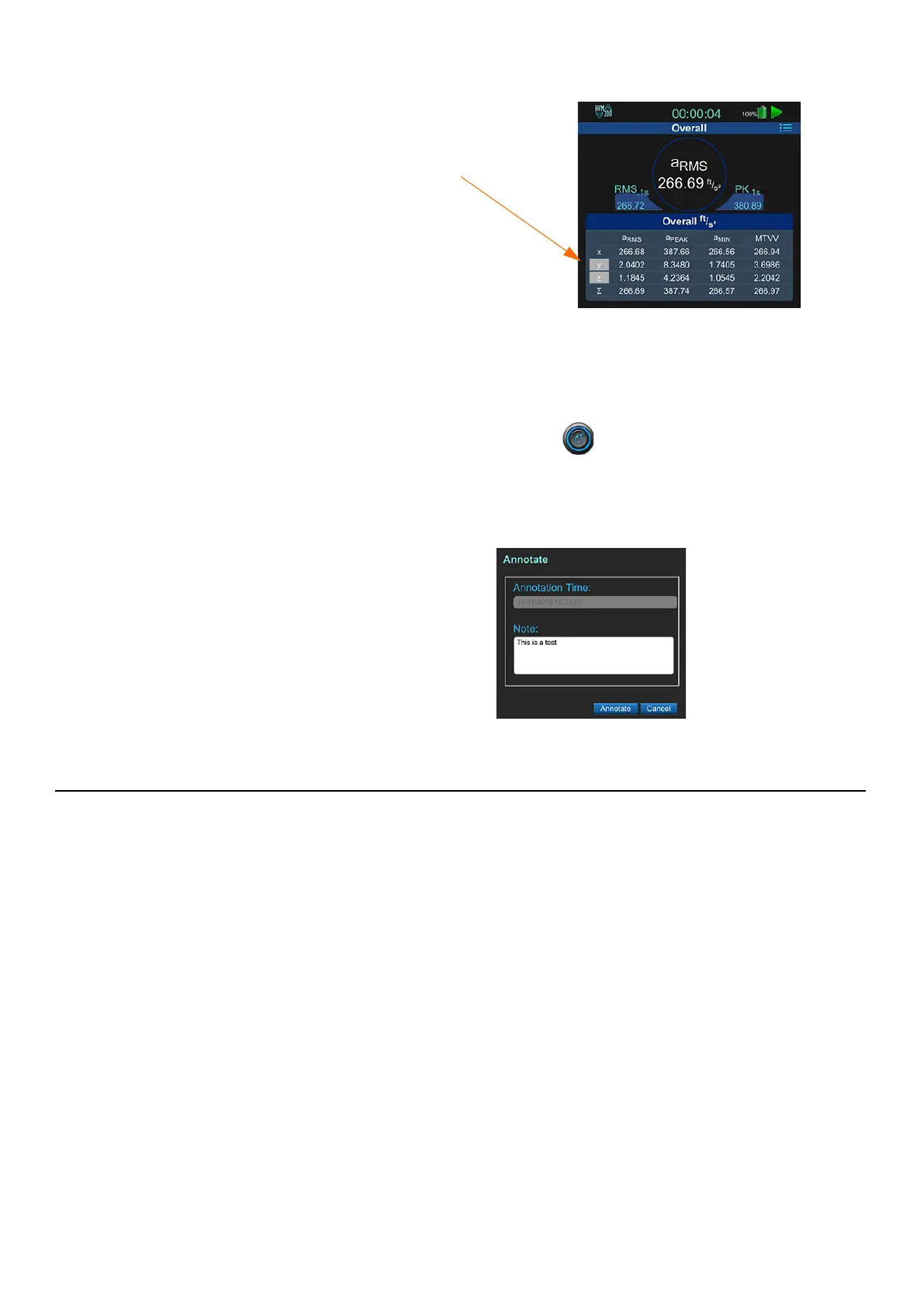

FIGURE 3-9 Under-range Indicators
Annotating the Measurement
Click the Annotate button and type a note to include with the
measurement (you do not need to stop the measurement to annotate).
FIGURE 3-10
Annotate Button
TAKE NOTE An annotation note may be made before the measurement is started
and will be added as an overall measurement note; only one such note may be
applied to the measurement, but it can be overwritten if needed.
FIGURE 3-11 Annotate Measurement
3.3 Downloading Data
Once you have clicked the Stop button and the measurement is
completed, you can download and work with data by using any of the
following methods:
TAKE NOTE Refer to the G4 LD Utility Manual for information on downloading and
viewing data with G4. In G4, go to Help > Manuals.
• Download and view .hvm2 files in G4. The HVM functionality in G4
requires a license.
LEARN MORE For tips on working
with raw data, see
“Working with
RAW Data Files” on page 3-10.
• Download raw data files. When you set up a measurement on the
Setup tab, you need to specify that you want to store raw data
files. For more information, see 3.1.2 Selecting a Setup File by
Using Your Mobile Device.
• Use a third-party tool that’s JSON compatible. HVM2 files are
stored in JavaScript Object Notation (JSON) format. Copy the
data file from the removable SD memory card and work with it
in any JSON-compatible tool.
Gray background
shows the under-range
condition for the Y and
Z axes.
