Laser Technology TruPoint 300 - Area from Photo

Laser Technology Inc. - TruPoint
™
300
43
ENFunctions

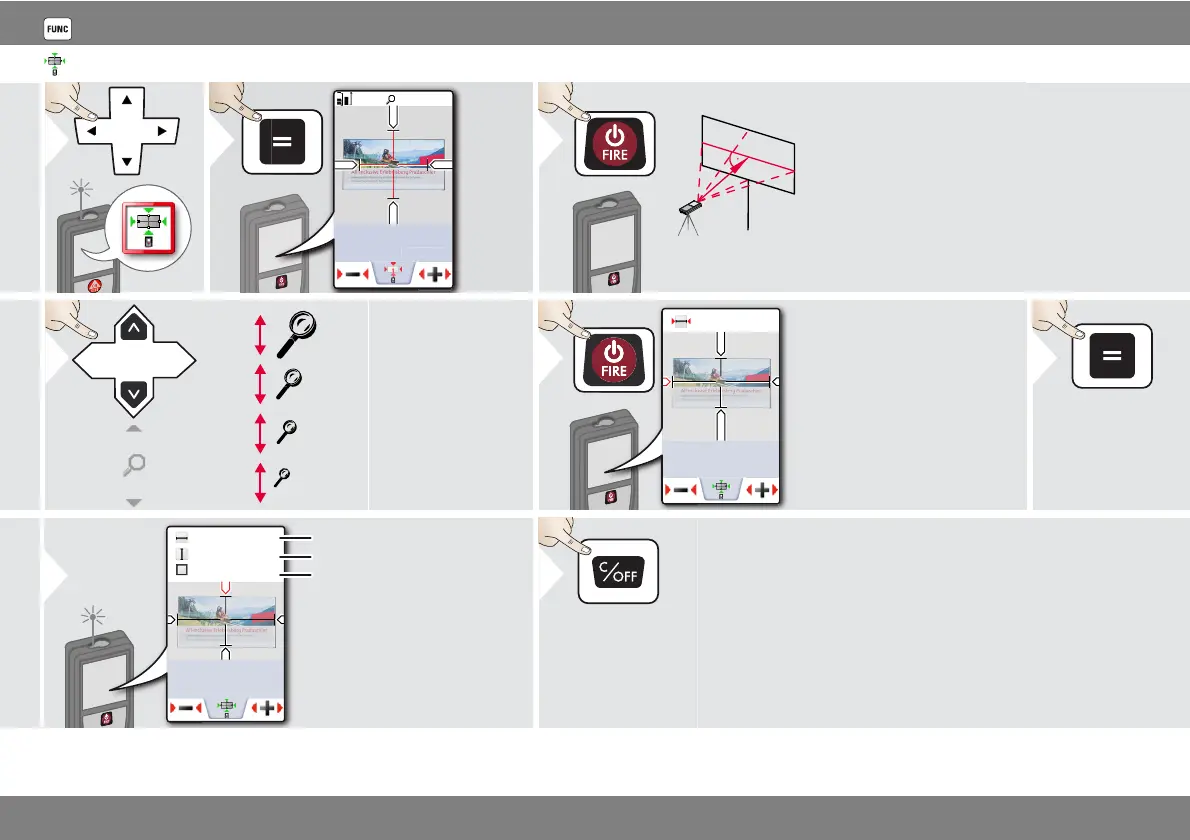

Area from Photo
1
-.--- m
2
1x
2
3
Aim perpendicular
to the horizontal
center line of the ar-
ea. This area must be
perfectly flat on the
vertical plane.
OV
*
1x
2x
4x
4
If necessary, use the
Zoom for precise
aiming.
* OV = Overview
2.015m
9.232m
2
5
Select arrows with the cur-
sor keys or by tapping on
the display and adjust with
softkeys. Corresponding
area is calculated.
Confirm
measurement.
6
4.581 m
2.015 m
13.192 m
9.232m
2
7
Width
Length
Circumference
8
Exit.
