2 6

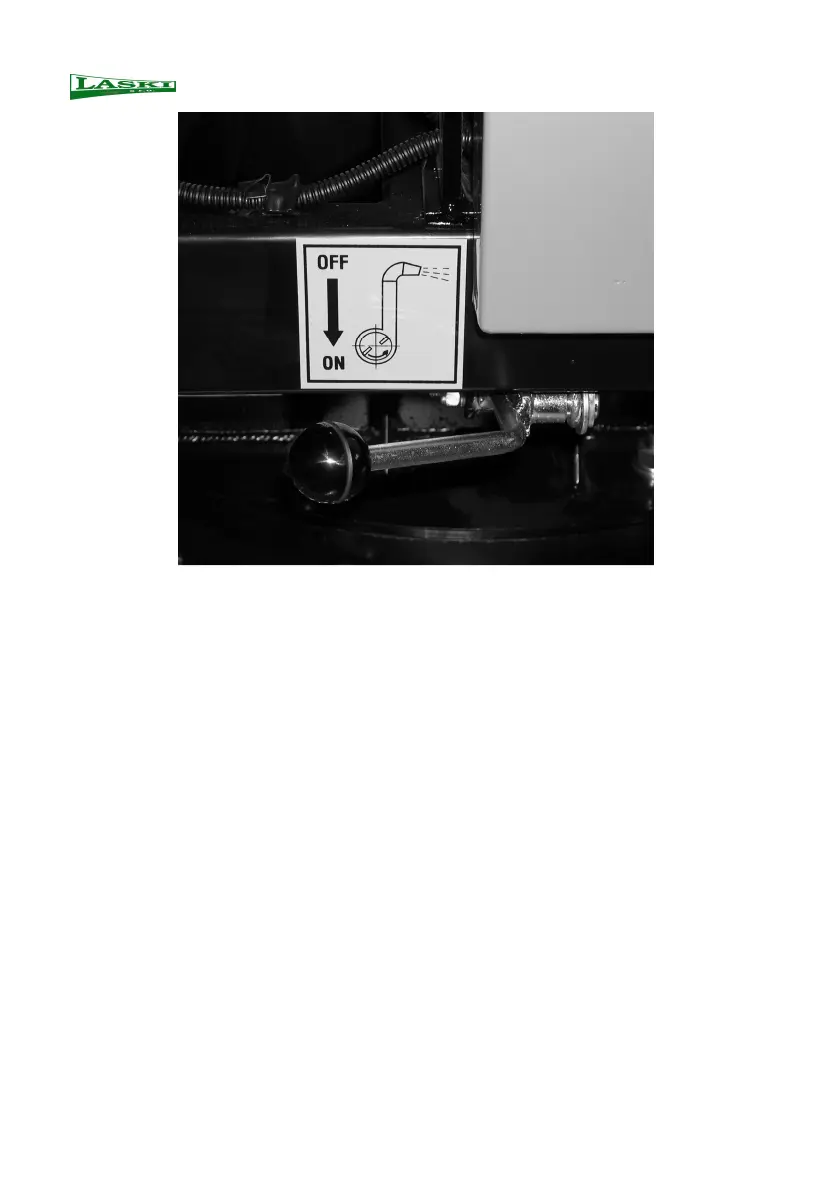

A lever to tighten or to loosen the V-belts
(valid only for LS 150 DW)
Lever down – position ON - belts tightened
Lever up – position OFF - belts loosened
- Swing away the hinged part of the loading chute and lock it.
- Set the safety lever in the central STOP position to block the loading rolls.
- Sink supporting legs and the jockey wheel until the travel wheels are
unloaded/lifted up slightly.
- Close all guards (if opened).
- For loading of materials and operation of the machine stand in the
attendant’s place only (as shown below).
- Avoid directing the discharge duct to the area of possible motion of other
persons.
- Set the accelerator lever for max. speed (especially at cold starting).
