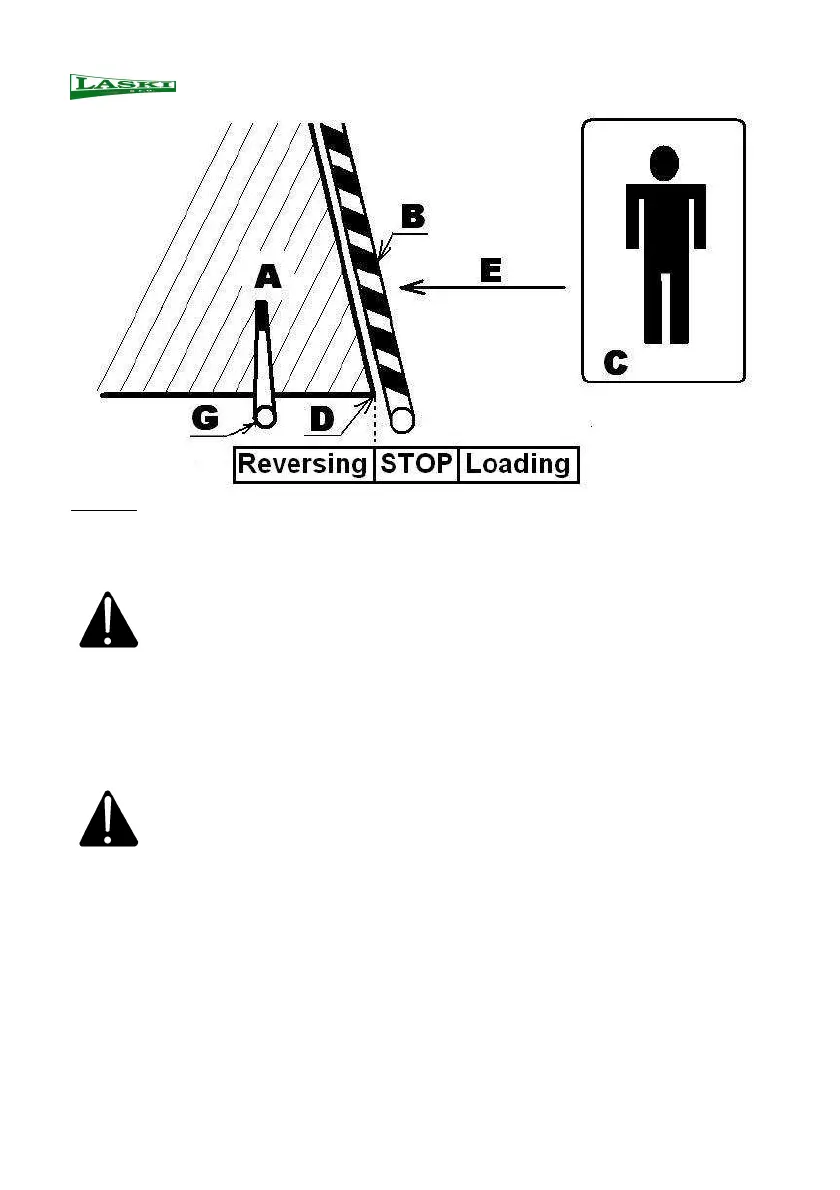

Legend:
A - loading chute, B - safety frame, C - attendant's place, D - loading chute
edge, E – in-feed direction, G - control lever
- The safety frame must be always adjusted so that the
EMERGENCY STOP must be activated before the point D –
loading chute edge.
- If you heard any strange noises or vibrations during initial run turn off the
chipper immediately and contact the authorised service.
- At cold starting, especially in winter time, do not increase the engine speed
but first let the engine running in idle speed to warm up the engine and
hydraulic oil for about 1 – 1,5 min and then you can set its max. speed.
- Do not leave the machine unattended.
At the first start there is much more air in the intake manifold and on this
account the engine may not roar to life immediately when turning the switch
key for the first time. Do not crank the engine for a longer time than 10 sec.
Keep an interval between two starts (standstill) 30 sec at least.
