Tighten strip
around tube
at filter stud.

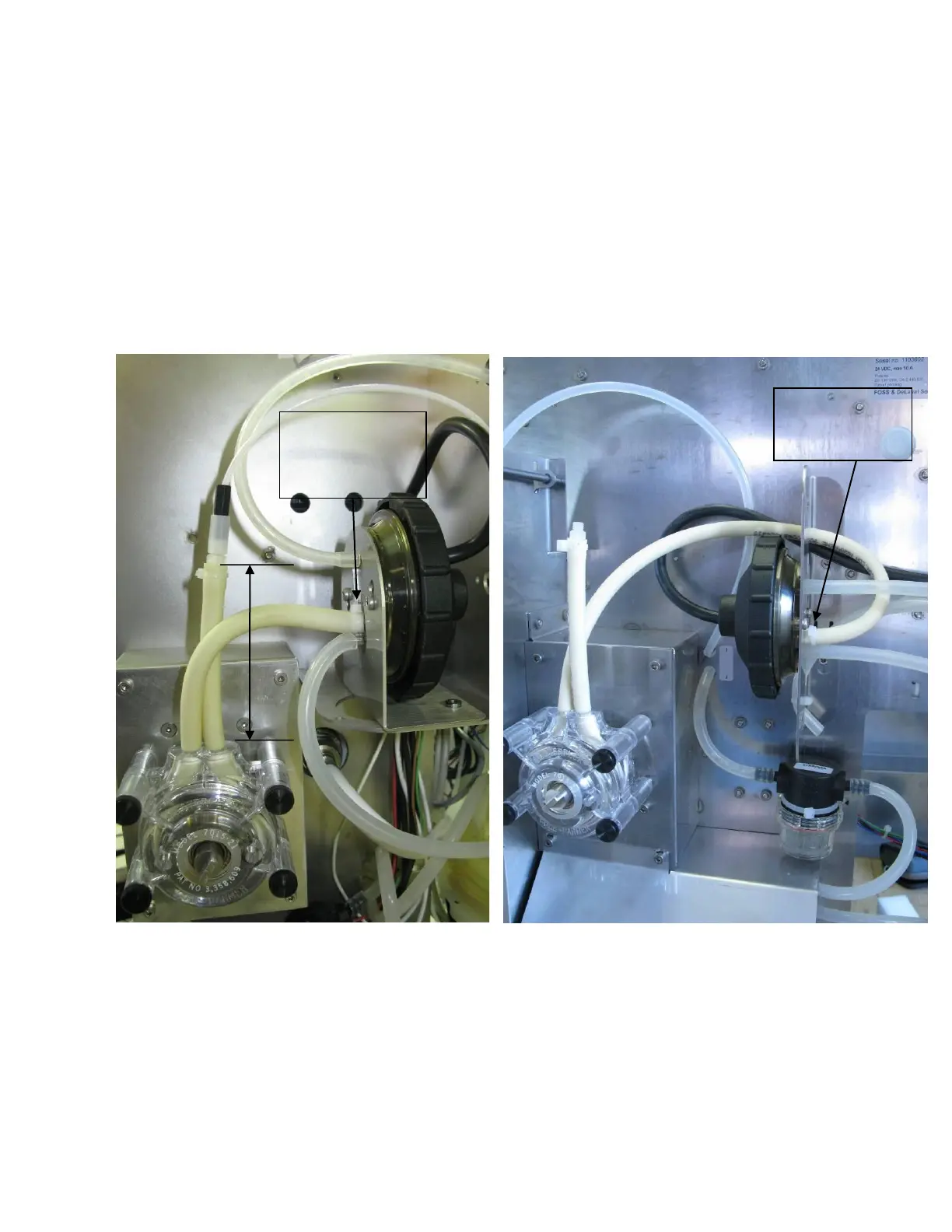

Connecting the tube on VMS installation:
HN version 1 (left picture) the length of the tube should be cut so that the tube will fit into the outlet of the
filter. The 100 mm tube on the pressure side should be mounted to the tube going from the SI to the AI.
Note that a plastic strap needs to be tightened around the tube at the filter stud.
HN version 2 (right picture) the tube has the correct length. The 100 mm tube on the pressure side should
be mounted to the tube going from the SI to the AI. Note that a plastic strap needs to be tightened around
the tube at the filter end.
Tighten strip
around tube
at valve stud.
