April 8, 2011 HN FAQ Memo, Version 2.0 Page 61 of 108

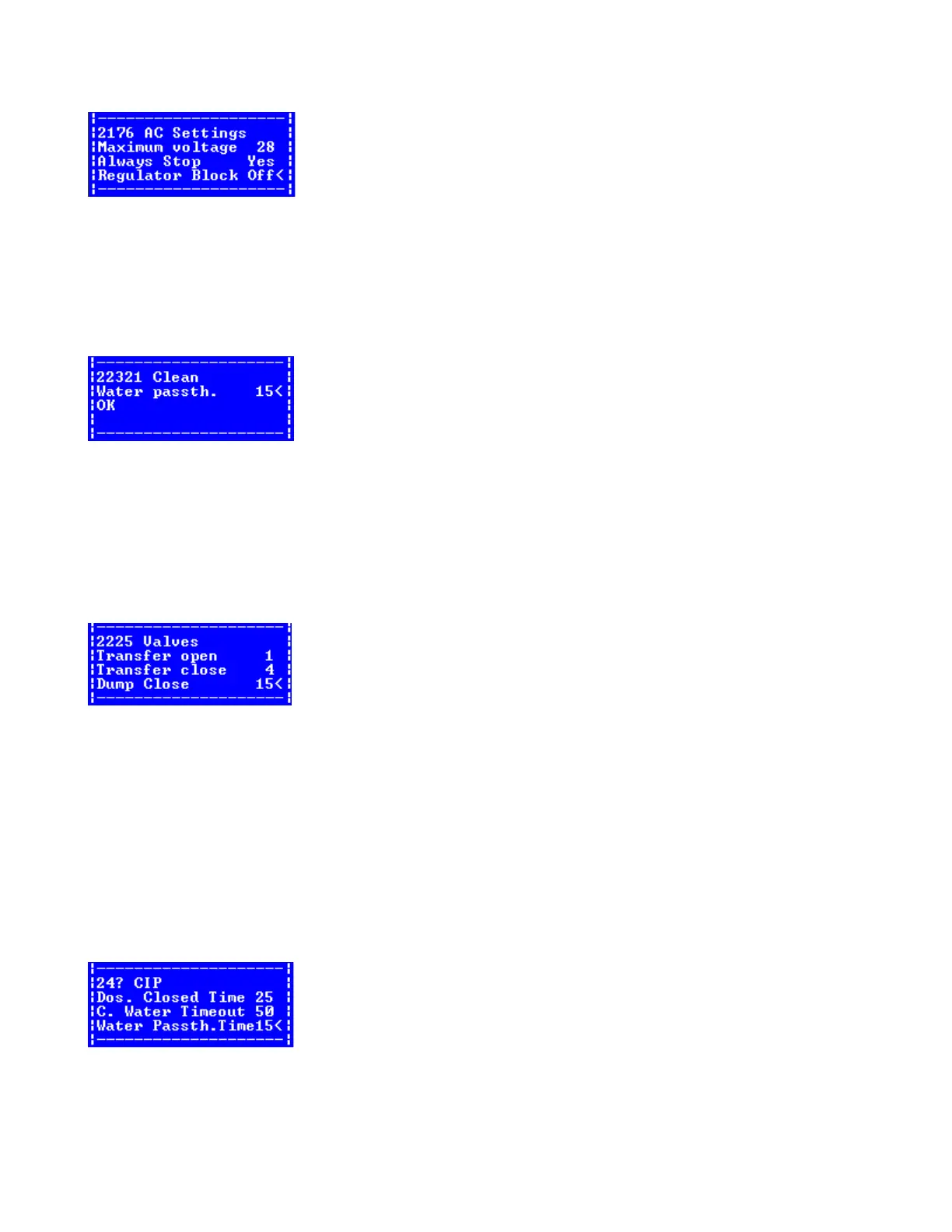

Fig 3. Regulator block installed: yes=ON, No= OFF.
SC Water Passth (menu 2232).:
The value for SC WaterPassth. must always be equal to the value of the Water Passthrough
Time parameter in the SI. (See description in chapter 3.3.6)
Default value is 15 Sec. See figure 4.
Figurer 4. SC Water Passth. must be equal to Water Passthrough Time in SI.
SC Dump Close: (menu 222):
The value of the Dump Close parameter determines how long time the Dump valves are closed
after the Shutoff valves are closed. When the Dump Close time is passed the samplers are
emptied through the Dump valves.
The default value is 15 sec. See figure 5
Figur 5. SC Dump Close
3.3.6 SI parameter
Water Passth.Time (menu 24)
The SI has 1 parameter with influence on the cleaning process. This is the Water Passthrough
Time. This value determines the delay between the opening of the C200 air valve and the
closing of the shutoff valves. Once the shutoff valves are closed the vacuum through the milking
clusters are closed.
Default value is 15. sec. Se figure 6.
Figur 6. SI, Water Passthrough Time.
