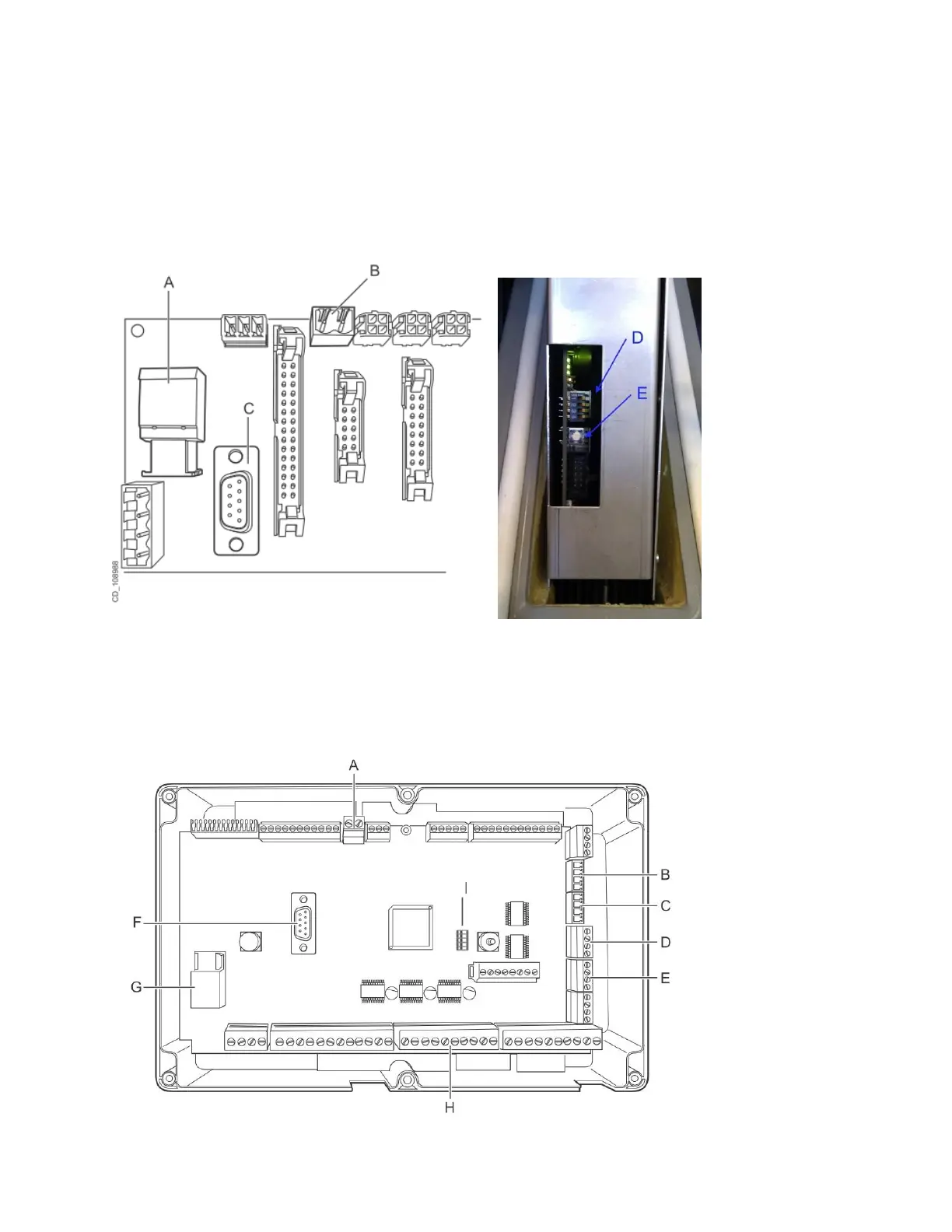

5.2.2.2 AI connections
The serial RS232 connector is located at C.
The DIP switch block is located at D.
5.2.2.3 SI connections
The serial RS232 connector is located at F.
The DIP switch block is located at I.
