X-431 EURO TAB II User Manual
101

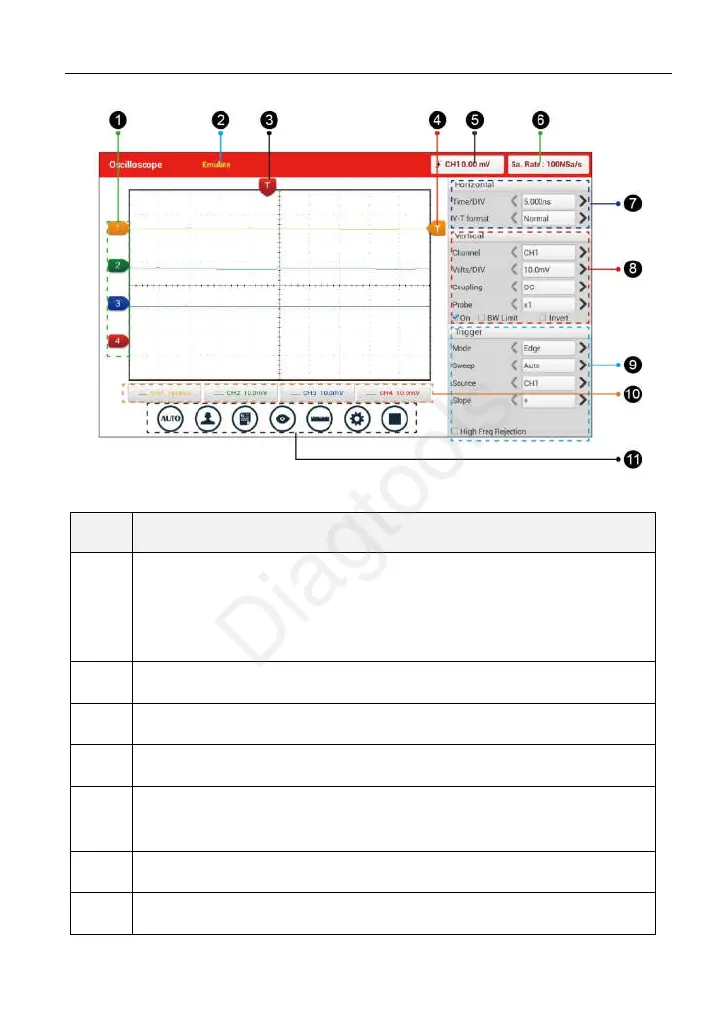

Fig. 12-6
No.
Descriptions
1
Displays the CH1/CH2/CH3/CH4 information:
Readouts show the coupling and vertical scale factors of the
channels.
A “B” icon indicates that the channel is bandwidth limited.
2 Working mode
3
Horizontal trigger position marker
4
Edge trigger level marker
5
Displays the trigger information, including the edge trigger slope,
source and level.
6
Sample rate
7
Horizontal Settings Panel: Controls the time base.
