X-431 EURO TAB II User Manual

2 Knowledge of X-431 EURO TAB II

There are two main components to the X-431 EURO TAB II system:

 Display Tablet – the central processor and monitor for the system (See

Chapter “2.1”).

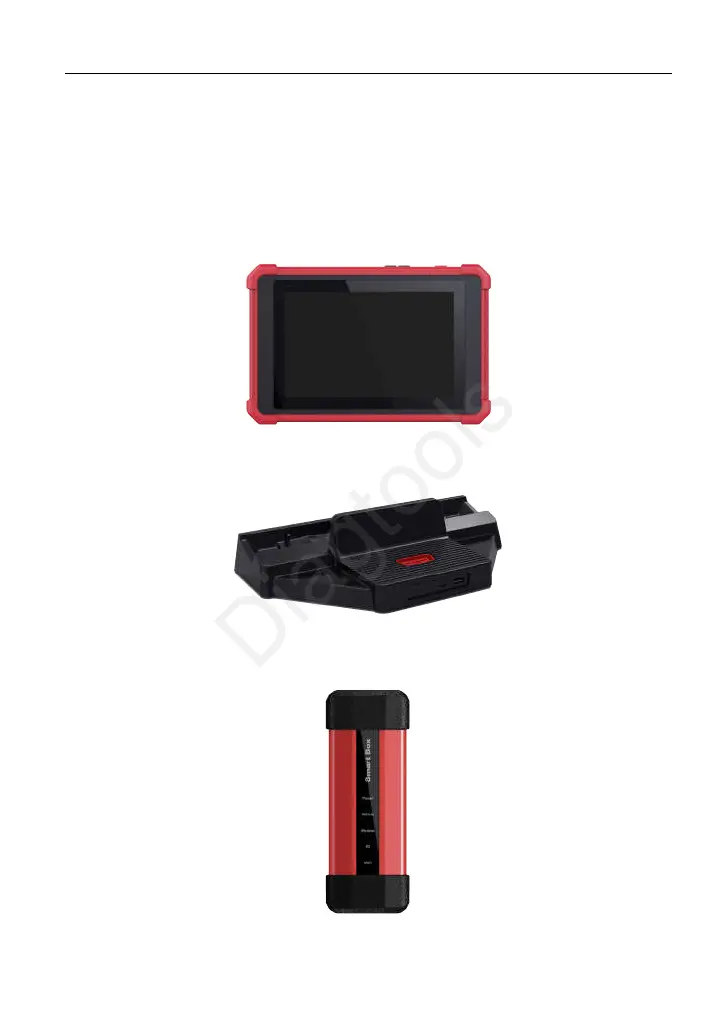

Fig. 2-1 Display tablet

 Docking Station – the device for accessing vehicle data (See Chapter “2.2”).

Fig. 2-2

 VCI Device – the device for accessing vehicle data (See Chapter “2.3”).

Fig. 2-3
