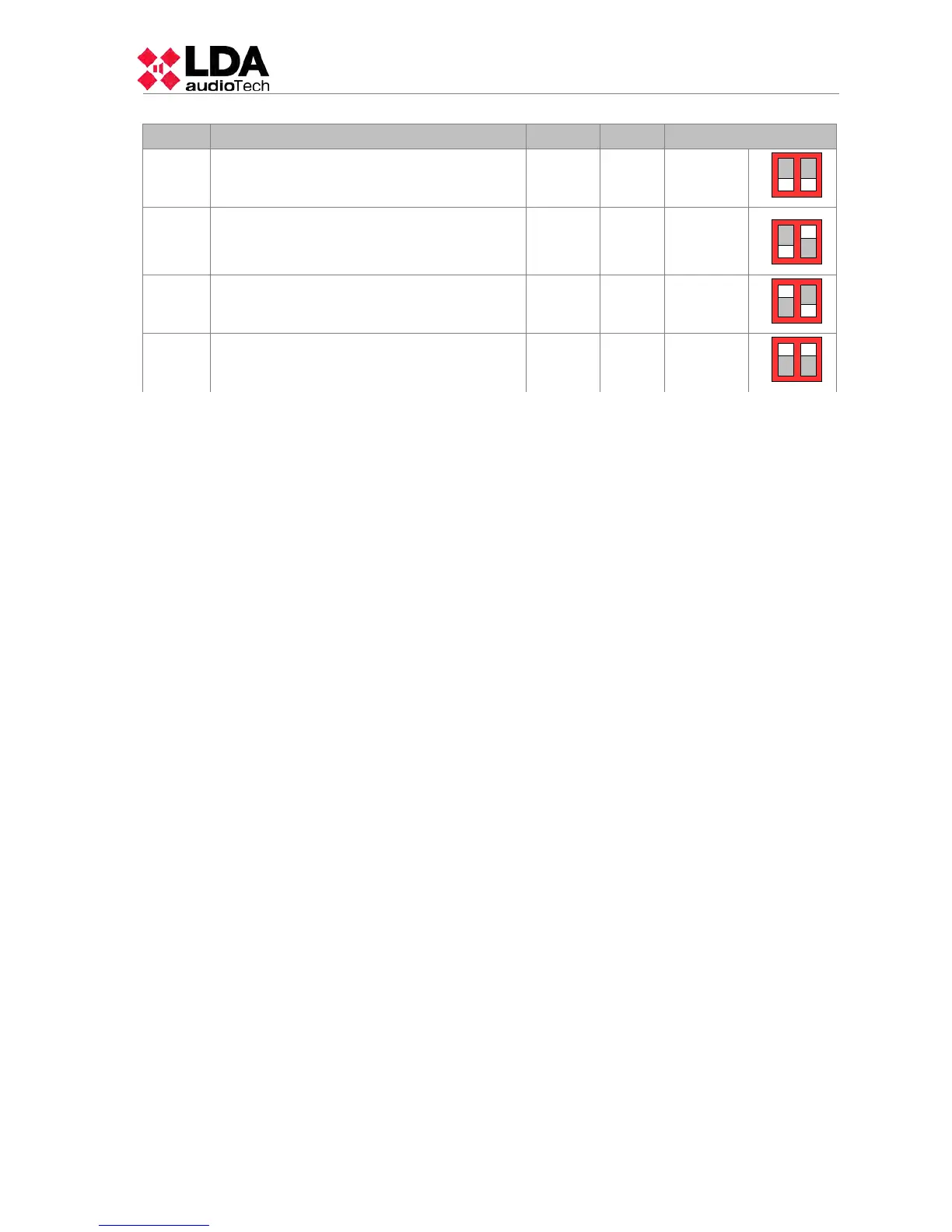

LDA NEO8060 - Table 8: System Connection con Figuration

Marking Description Type Signals Activation
CFG
Port A : Control data exclusively
Puert B : Audio data exclusively
Puert X : Flexnet**
Config. NA Posición 00


CFG
Puert A : Flexnet**
Puert B : Flexnet**
Puert X : Control data exclusively
Config. NA Posición 01


CFG
Puert A : Flexnet**
Puert B : Flexnet**
Puert X : Audio data exclusively
Config. NA Posición 10


CFG
Puert A : Flexnet**
Puert B : Flexnet**
Puert X : Flexnet**
Config. NA Posición 11


Table 8: System connection configuration
*NOTE 1: in NEO 8060, port B will be normally inactive in modes 01,10 and 11 for avoiding
the storm effect in the Flexnet network ring. It will only operate when detecting a disconnection of a
NEO-Extension unit in the bus.
**NOTE 2: Flexnet mode will have Control Data in VLAN1 + Audio Data in VLAN2. For
more information about Flexnet, see chapter 4.3.
