Indicator Description Type Signals Activation
Orange Speaker lines connection Input AB 19KHz pilot tone
Green Connection to EOL inputs Output CD
Voltage-free contact closure
between C and D (NC)
Table 20: Connector of the EOL
NOTE: Do not connect the EOL device to the secondary side of a volume controller. This can
make the device not to work properly.
Technical Specifications
Model EOL
Indicator Activity (red color)
Input Input for 100V PA lines, max consumption 15mA, input for 100V PA
lines, max consumption 15mA, 2 Euroblock Pin (orange color)
Output Isolated contact closure output, NC, Max 60V DC 130 mA, 2
Euroblock Pin (Green color)
Design ABS, Black RAL9005
Weight 29 gr / 1oz
Dimensions (A x H x P) 66,3mm x 20mm x 50mm / 2,61in x 0,79in x 1,97in
Accessories Male Euroblock connectors

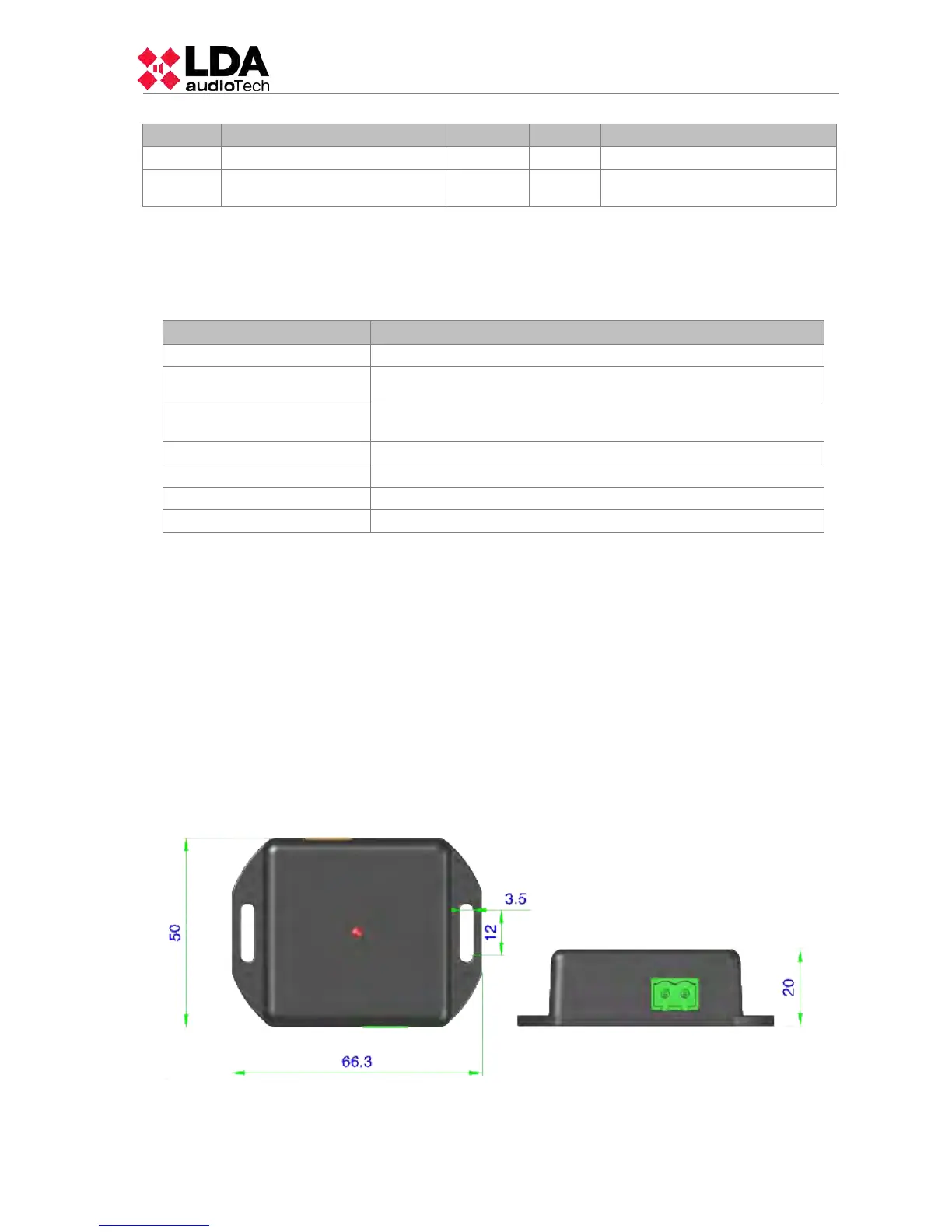

Views (Measurements in mm)
