EOL installation
1. Connect the two wires from the end of the speaker lines to the line terminator input.
2. Connect the two output cables of the end of line device to the line of input correspondent to
the “END OF LINE INPUTS”
Installation of the end of line device in a sequence
With a configuration in sequence it is possible to supervise various sections of one line
of speakers. To make a multiple connection, the end of line devices that belong to one same
amplification channel, must be connected in sequence.
38
www.lda-audiotech.com
Picture 50: Multiple connection to end of speaker lines.
User's Manual: EN 54-16 PA/VA System LDA NEO

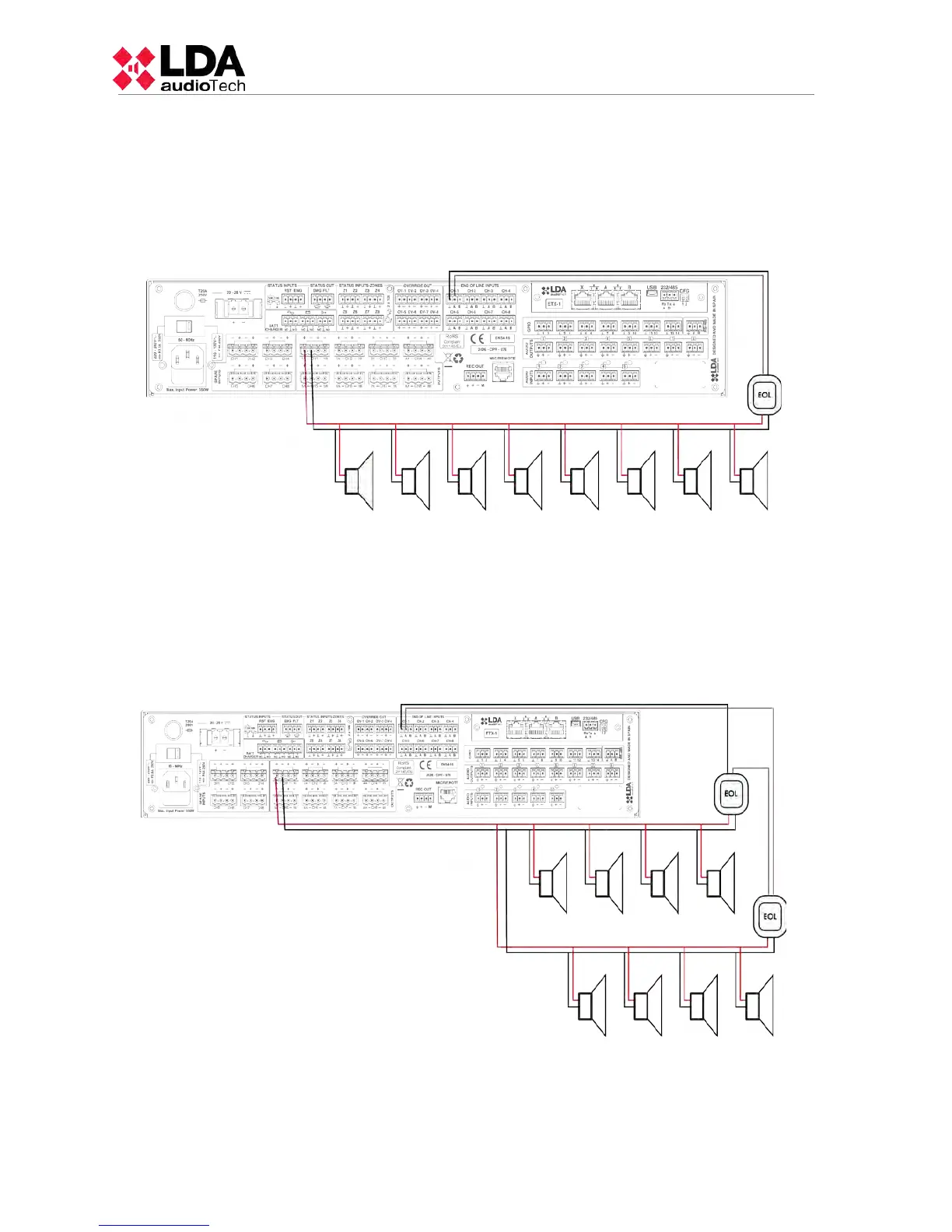

Picture 49: Connection of EOL device to the speaker line
