DatasheetoftheEasyServoDriveES2‐DA808
LeadshineTe c hnol ogy Co.,Ltd
11/F,BlockA3,iPark,No.1001XueyuanBlvd.Shenzhen,China Tel:1‐949‐608‐7270Fax:1‐949‐608‐7298
Web:www.leadshine.com Email:tech@leadshine.com   
4.1 Wiring Diagrams

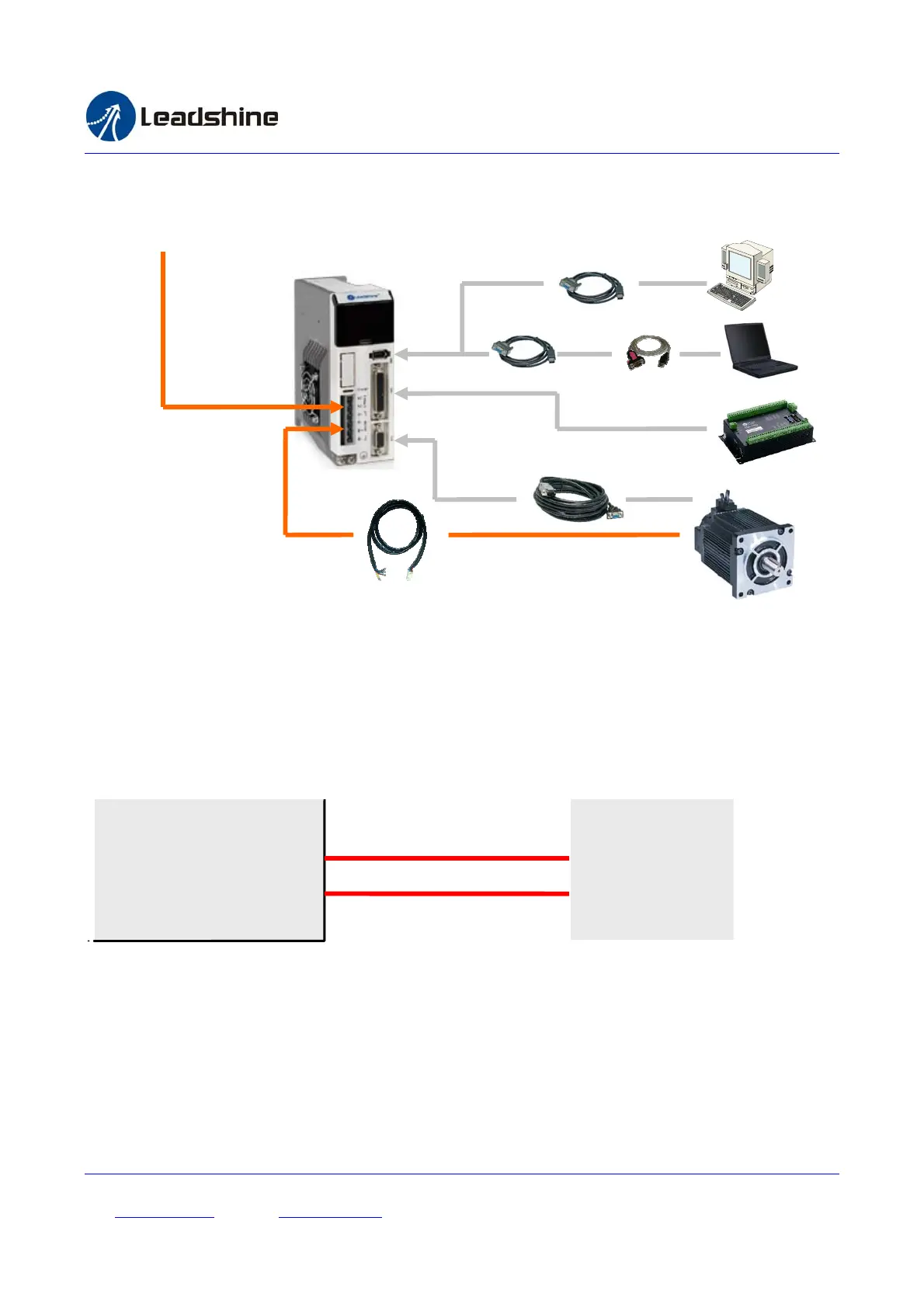

Wiring Diagram of the ES2-DA808 and ES2-M series motor
4.1.1 Power Wiring
The ES2-DA808 requires two powers input as follows. The main power is used to energize the motor and the control
power is used for logic circuit. Typically they can share the same AC power.
Power Supply Selection
To achieve good driving performances, it is important to choose a suitable supply voltage and use a matching current
value. Generally speaking, supply voltage determines the high speed performance of the motor, while output current
determines the output torque of the driven motor (particularly at lower speed). Higher supply voltage will allow
higher motor speed to be achieved, at the price of more noise and heating. If the motion speed requirement is low, it’s
better to use lower supply voltage to decrease noise, heating and improve reliability.
L

N
MainPower
50‐80VAC or
70‐100VDC
Or
RS232Cable
USB‐232Converter
MotionController
50‐80VACor70‐100VDC
EncoderExtensionCable(mustbesued)
PowerExtensionCable
AC
AC
