DatasheetoftheEasyServoDriveES2‐DA808
LeadshineTe c hnol ogy Co.,Ltd
11/F,BlockA3,iPark,No.1001XueyuanBlvd.Shenzhen,China Tel:1‐949‐608‐7270Fax:1‐949‐608‐7298
Web:www.leadshine.com Email:tech@leadshine.com   
Multiple Drives
It is recommended to have multiple drives to share one power supply to reduce cost, if the supply has enough capacity.
To avoid cross interference, DO NOT daisy-chain the power supply input pins of the drives. Instead, please connect
them to power supply separately.
Selecting Supply Voltage
Higher supply voltage can increase motor torque at higher speeds, thus helpful for avoiding losing steps. However,
higher voltage may cause bigger motor vibration at lower speed, and it may also cause over-voltage protection or
even drive damage. Therefore, it is suggested to choose only sufficiently high supply voltage for intended
applications, and it is suggested to use power supplies with theoretical output voltage of drive’s minimum + 10% to
drive’s maximum – 10%, leaving room for power fluctuation and back-EMF.

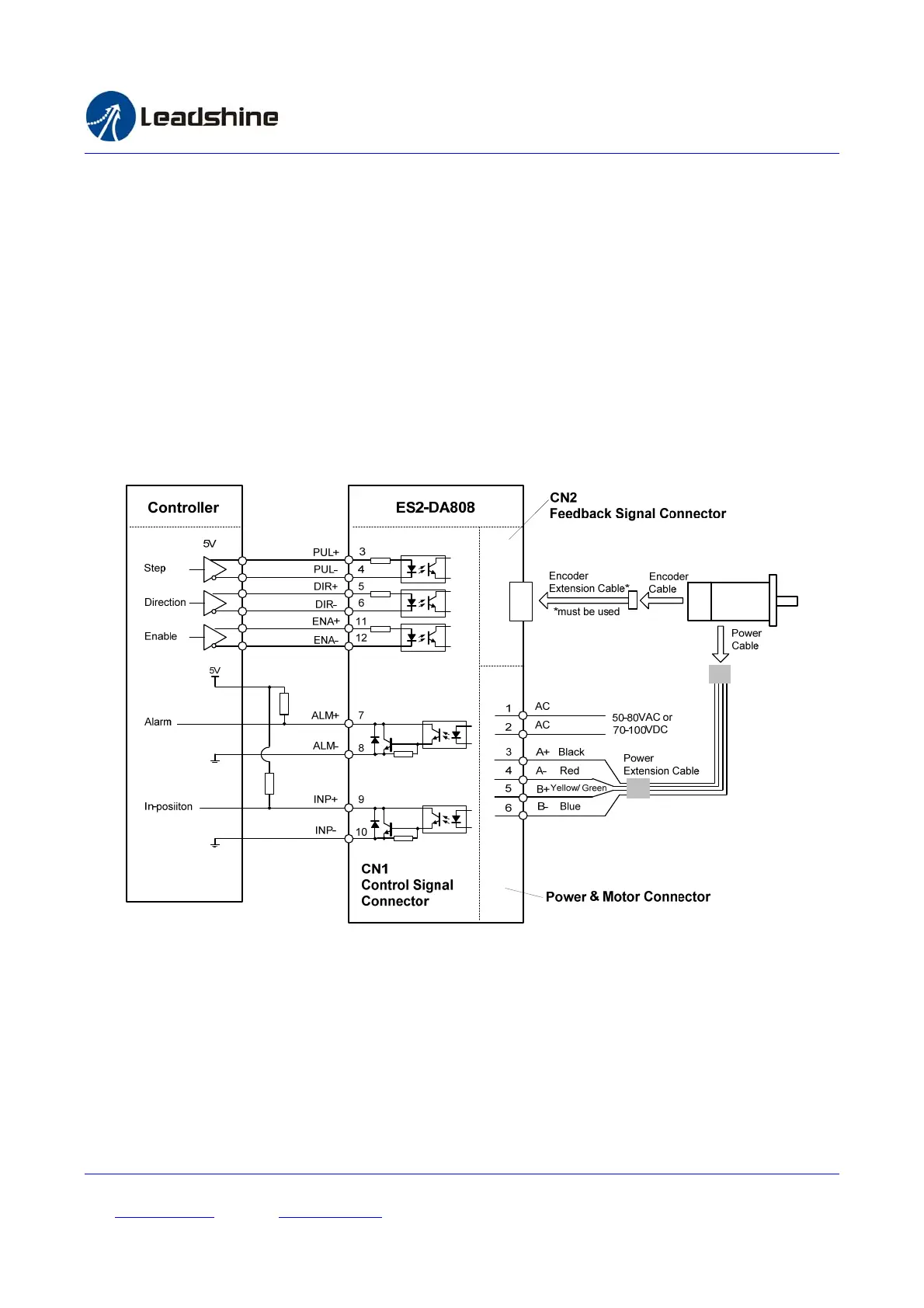

4.1.2 Control Signal Wiring
Connections to controller of differential output
