DatasheetoftheEasyServoDriveES2‐DA808
LeadshineTe c hnol ogy Co.,Ltd
11/F,BlockA3,iPark,No.1001XueyuanBlvd.Shenzhen,China Tel:1‐949‐608‐7270Fax:1‐949‐608‐7298
Web:www.leadshine.com Email:tech@leadshine.com   
2.2 Control Specifications
Parameters ES2-DA808
Command Input Step/Direction, CW/CCW
Enable/Disable Input Differential
Alarm Signal Output Isolated OC Output
Encoder Signal Output ABZ Output
Configuration Interface On-board HMI or RS232 communication
Regeneration Resistor Built-in ( 50 Ohm, 100W), Support External
2.3 Mechanical Specifications
Parameters ES2-DA808
Size 158mm * 130mm* 54mm
Weight 1500 g
2.4 Operating Environment
Cooling Natural cooling or Forced cooling
Ambient Temperature 0 – 40 °C
Humidity 40% RH to 90% RH, No Condensation
Vibration 5.9 m/s
2
MAX
Storage Temperature -20 °C to 65 °C

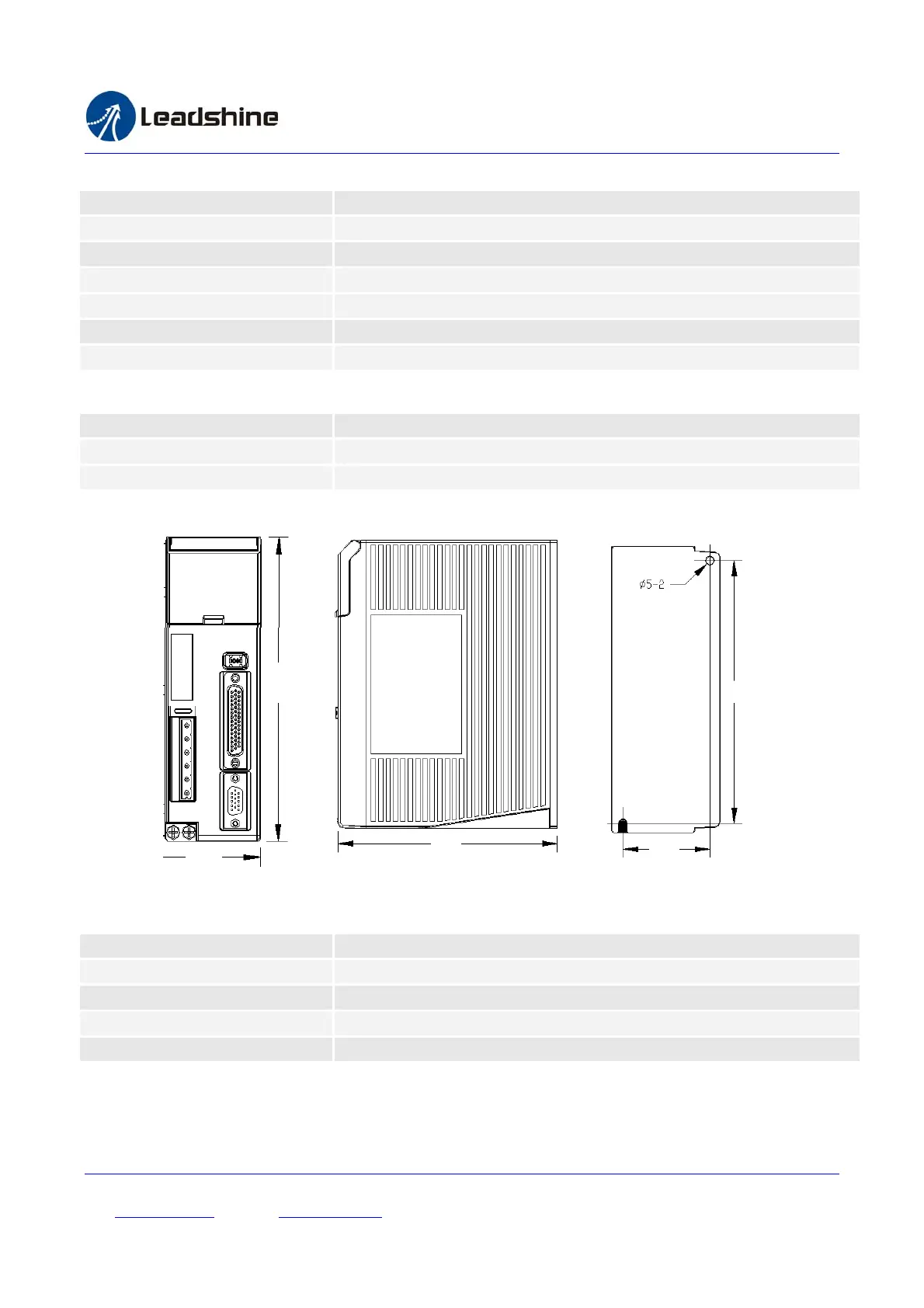

3 Connectors and Pin Assignments
158
54
130
145
40
