9) Definition of Jumpers
JP1 (led feeding)
It enables or disables leds working. It is useful in the working with solar panel to reduce consumption. When entered, it enables leds switching on.
JP2 (Battery charger) - Attention! Respect the voltage
When introduced in position 1-2 it allows the charge of a 12V battery. When introduced in position 2-3 it allows the charge of a 24V battery.
10) Definition of programming keys
P1 - Key to enter remote control codes in memory
P2 - Key for the single or total cancellation of remote control codes in memory
P3 - Key for programming, setting of pause time, delay in opening for motor M1 and delay in closing for motor M2 .
11) Definition of protection fuses
F2 - Battery Fuse (10A - Fast)
It disconnects the buffer Battery from the electronic card in case of short circuit or anomaly in current consumption.
F1 - Service Fuse (1A - Delayed)
It protects the electronic card in case of short circuit or over current on photocells and other devices connected in the terminal board to 12Vdc voltage.
12) Technical features
Slowing down (soft stop)
At stroke end, the unit reduces the speed of wings (Soft stop function) so to avoid strong impacts. The aim of such function is to prevent an early wear
of mechanical organs. The position of Soft stop is established automatically during the programming phase (1/8 of the complete stroke).
Power supply
The power to electronic card and motors is supplied by an electric transformer equipped with protection fuse. It is possible to connect to the equipment
an optional 24V / 4Ah battery to guarantee the working of the automation when electric power is missing.
ENGLISH

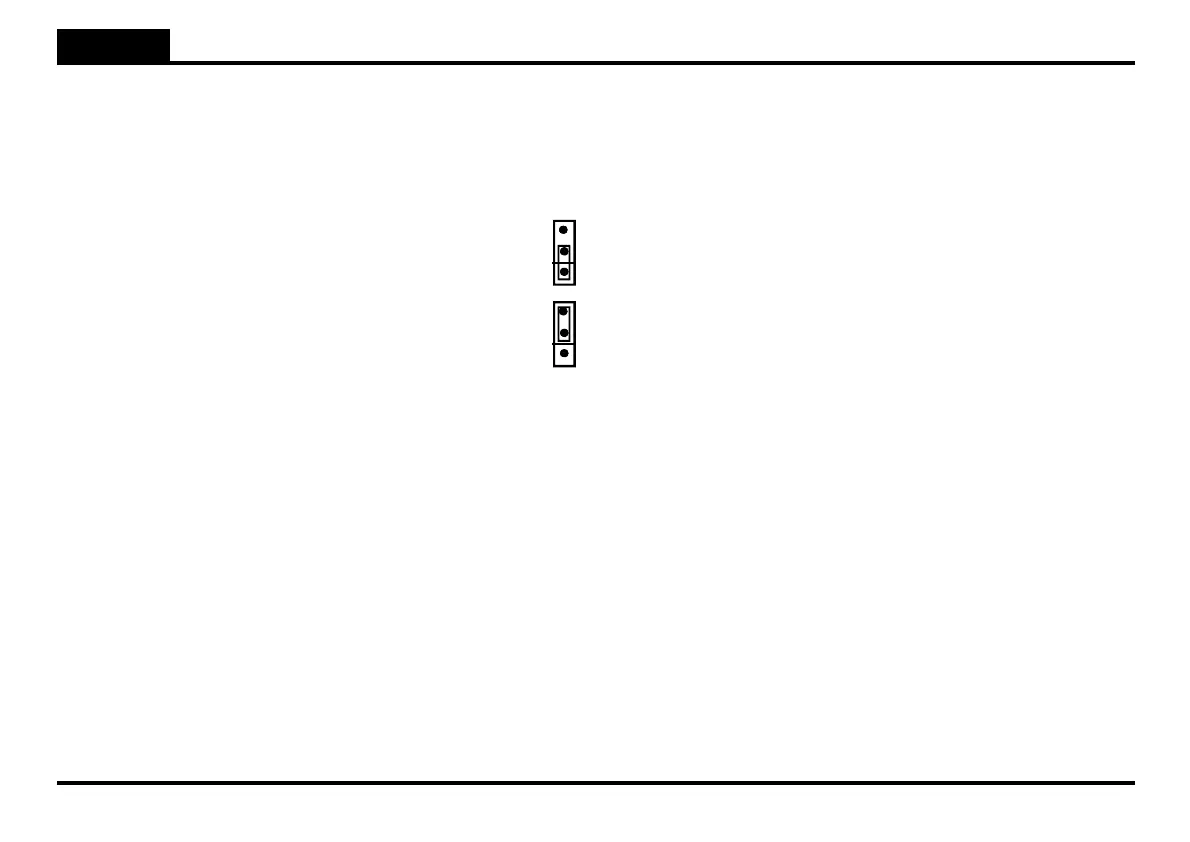

JP2 - Battery charger
12Vdc
24Vdc
3
2
1
3
2
1
