Leb Electronics CTR50 - Connections Diagram

32
ENGLISH

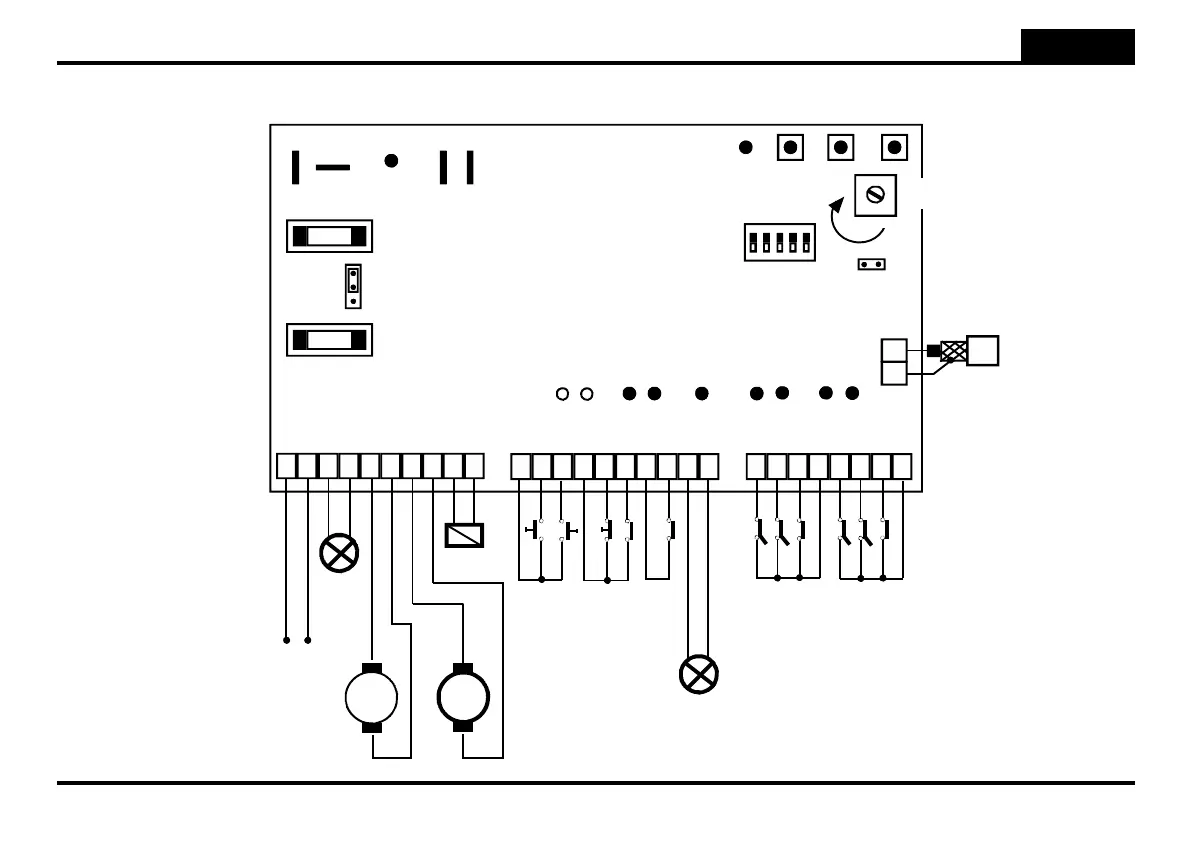

M) Connections diagram
+
Dip switch
5 4 3 2 1
DP1
F2
EL. LOCK
BLINKER
—
+
DL2
Mains
AC IN electric
transformer Battery
Programming led
OUT
12 Vdc
1 2 3 4 5 6 7 8 9 10
M1
P1
Programming keys
P2 P3
+
—
F1
Service fuse 1A
Battery fuse 10A
Jumper JP1
FS1
FS2
FS4
FS3
Jumper JP2
Battery charger
1 2 3
1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8
PHOTOSTOP
PHOTOCELL
STOP
START
PEDESTRIAN START
PEDESTRIAN START
CLOSE L.S. M1
SAFETY EDGE M1
OPEN L.S. M2 CLOSE L.S. M2
SAFETY EDGE M2
J3
START
STOP
PHOTOCELL
PHOTOSTOP
CLOSE L.S. M2
OPEN L.S. M2
OPEN L.S. M1
3 4 5 6 7 8 9 10 11
RV1
AERIAL
1 2
J5
M2
Open
gate
CLOSE L.S. M1
OPEN L.S. M1
J1
J2
LED
DL1
Amperometric
sensor
ON
OFF
