LeCroy HDO6000 User Manual

HDO6000 High Definition Oscilloscope

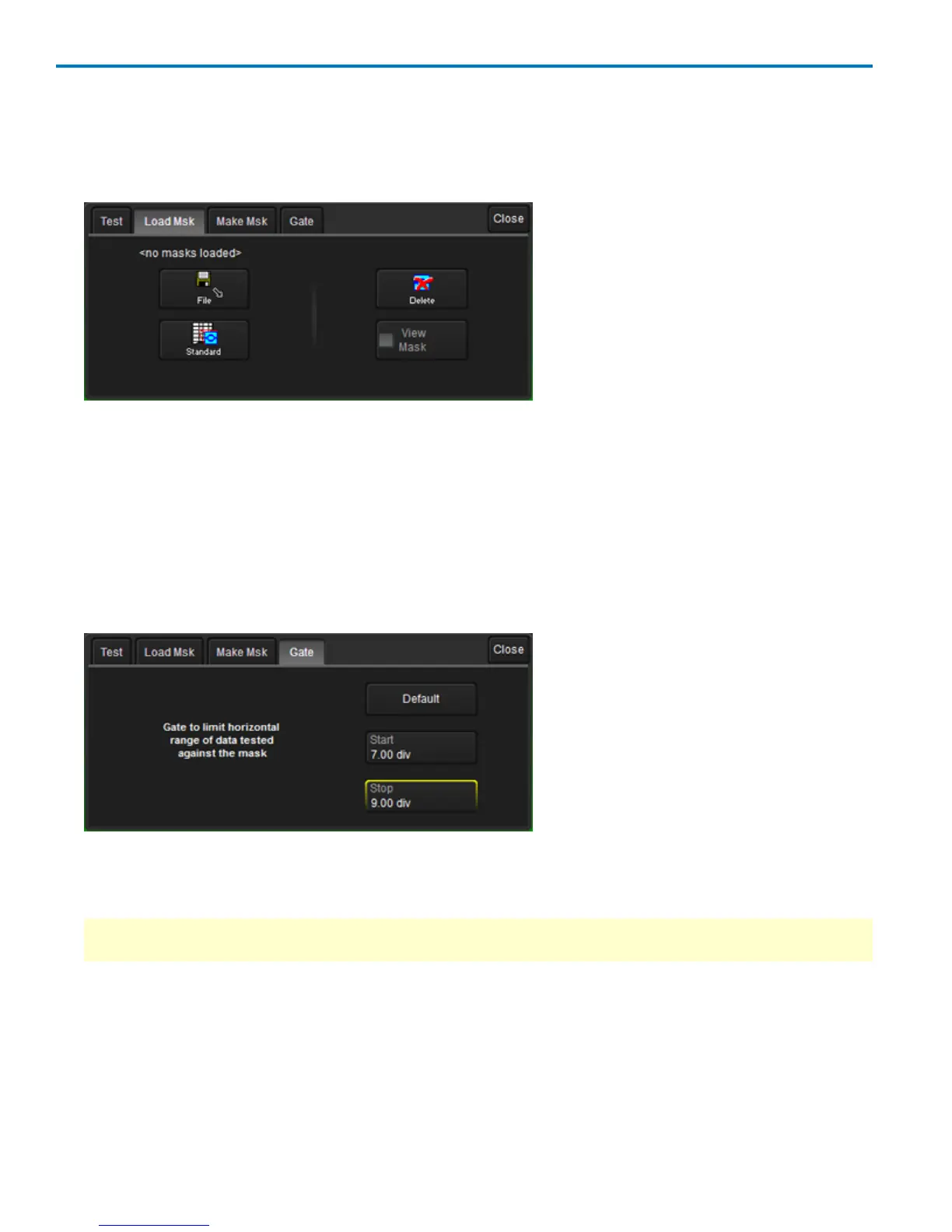

Load Mask
Use this procedure in lieu of Make Mask if you have a pre-defined mask file, or wish to recall a mask you
previously created and saved.
1. Touch the Load Mask tab to display the dialog.
2. To use a saved .msk file, touch File and select the mask.
OR
To use an industry standard mask, touch Standard and select the mask from the pop-up.
3. Check ViewMask to display the mask over the trace.
Set Gates
Optionally, set gates to limit the portion of the waveform that is compared to the mask.
1. Touch the Gates tab to display the dialog.
2. Enter the Start and Stop timebase divisions that mark the segment of the waveform to be tested with
this mask. This can be a whole division of a fraction of a division. Divisions are numbered 1-n left to
right.
Tip: A quick way to position the gate is to touch the gate posts, which initially are placed at the
extreme left and right ends of the grid, and drag them to the desired points.
94
922499 Rev B
