HDO6000 High Definition Oscilloscope
Annotate Traces
The Label function gives you the ability to add custom annotations to traces that are
shown on the display. Labels are numbered sequentially in the order they were
created. Once placed, labels can be moved to new positions and turned on/off.
Create Label
1. Touch the trace, then choose Set label... from the pop-up menu.
OR
Touch the trace descriptor box twice, then touch the Label shortcut button on the setup dialog.

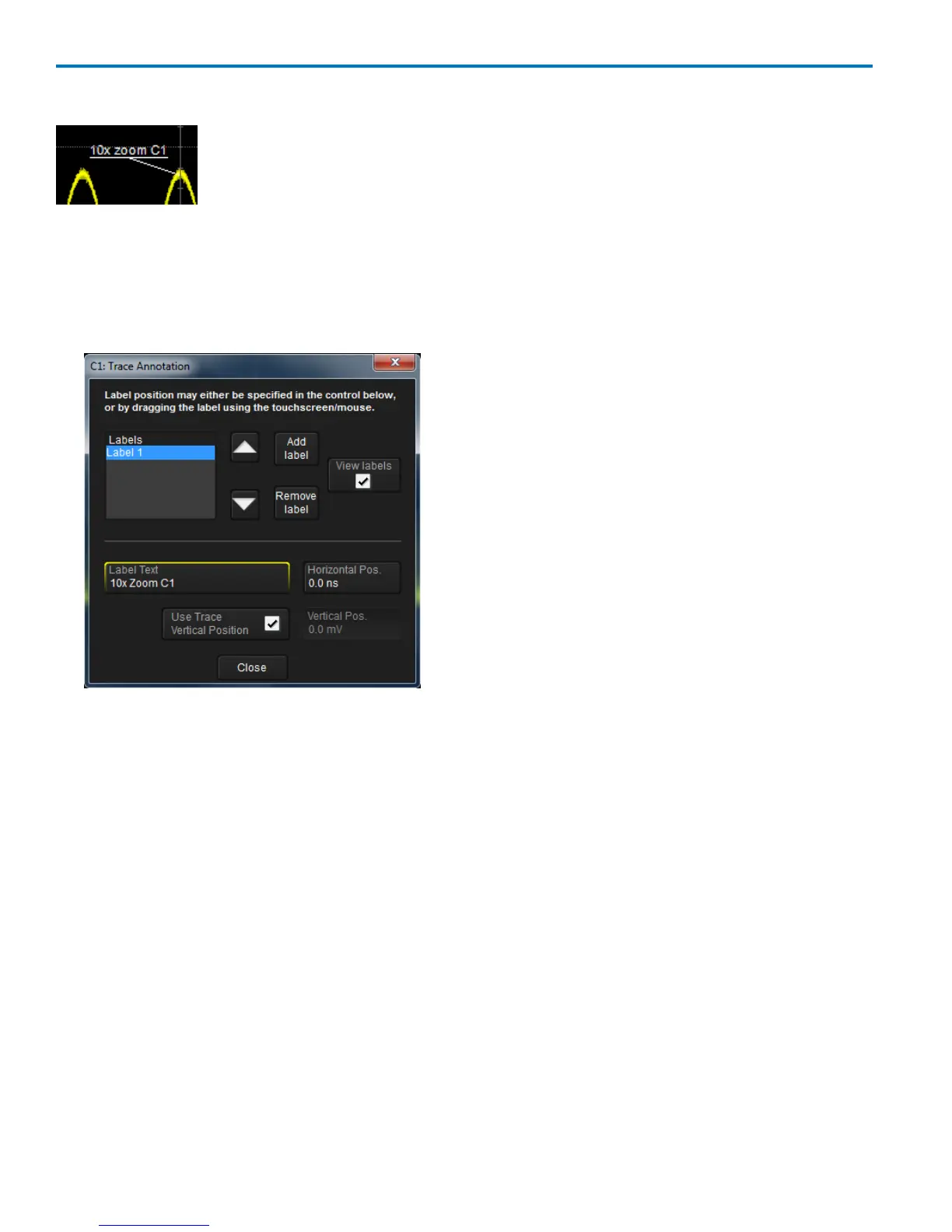

2. On the Trace Annotation pop-up, touch Add Label.
3. Enter the Label Text.
4. Optionally, enter the Horizontal Pos. and Vertical Pos. at which to place the label. The default position
is 0 ns horizontal. You can optionally check Use Trace Vertical Position instead of entering a Vertical
Pos.
5. Close the dialog.
Edit/Remove Label
1. Touch the label and choose Set Label from the pop-up menu.
2. Select the Label number. You can use the Up/Down arrow keys to scroll the list.
3. Change the Label Text and/or Horizontal Pos., or touch Remove Label to delete it.
4. Close the dialog.
Turn On/Off Labels
After labels have been placed on a grid, you can turn on/off all labels at once by opening the Trace
Annotation dialog and selecting/deselecting the View labels checkbox.
16
922499 Rev B
