HDO6000 High Definition Oscilloscope
Save/Recall Overview
The Save/Recall features allow for storage and retrieval of Waveforms, Table Data, and Instrument
Setups. There are also Disk Utilities for arranging the file/folder structure on your instrument's hard drive.
Directly access the Save Waveform, Save Table, Save Setups, and Disk Utilities dialogs from the File
menu.
A main Save/Recall dialog is shown providing buttons to access the aforementioned dialogs for specific
Save/Recall functions.
Save/Recall Setups
The Save/Recall Setup dialogs allow for quick saving and recalling of up to six oscilloscope panel
settings internally on your instrument. If desired, you can also save and recall your oscilloscope panel
settings as an .lss file to a specific hard disk location, a network location, or USB drive.
Saving Oscilloscope Setups

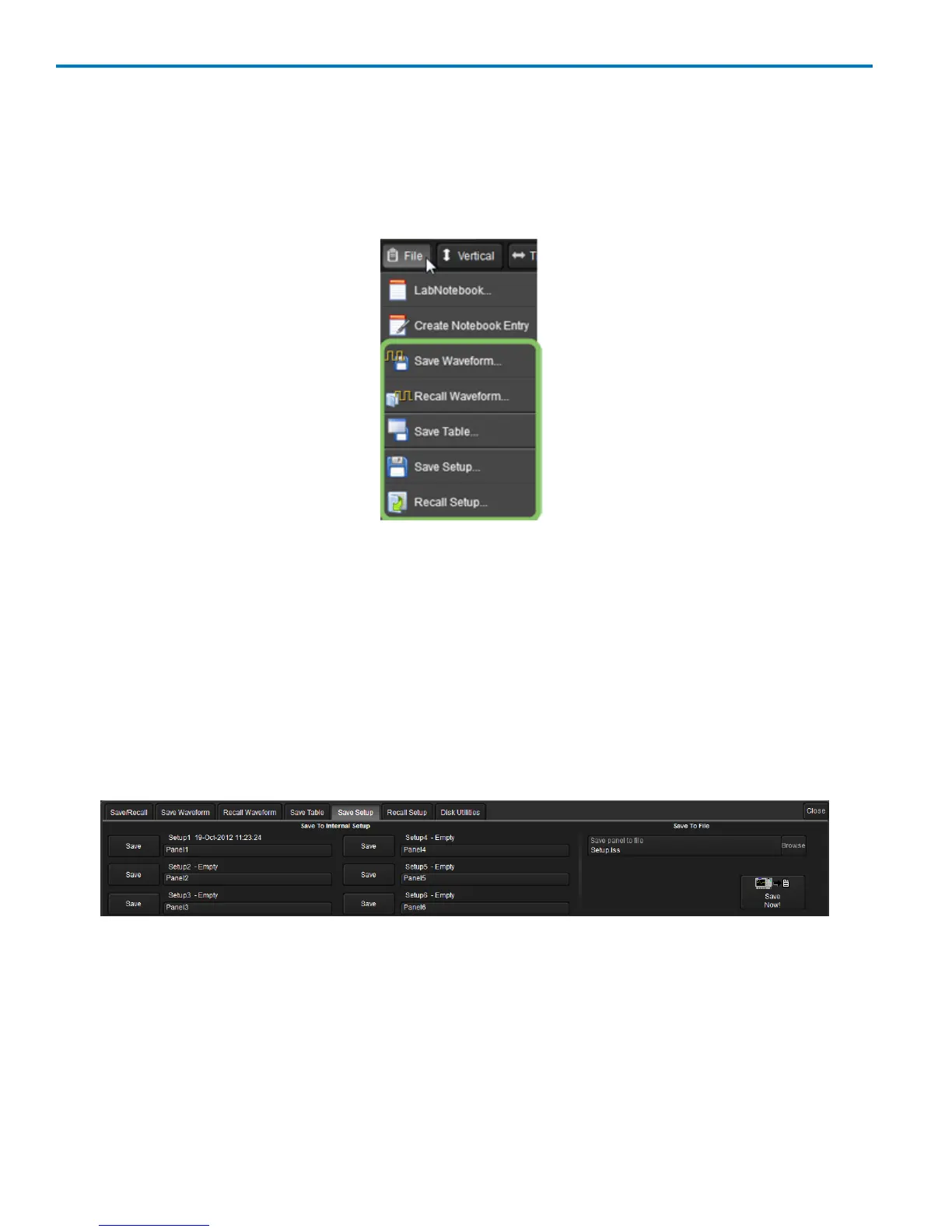

Access the Save Setup... dialog by either selecting File → Save Setup... from the menu bar or clicking the
Save Instrument Setup button on the main Save/Recall dialog.
SAVE SETUP TO MEMORY
1. Touch one of the SetupX data entry controls and enter a name for the memory.
2. Touch the corresponding Save button directly to the left of the SetupX field.
Settings are saved to the D:\Internal Setups location on your instrument. The save date/time is displayed
above the SetupX data entry control.
110
922499 Rev B
