HDO6000 High Definition Oscilloscope
Digital Inputs

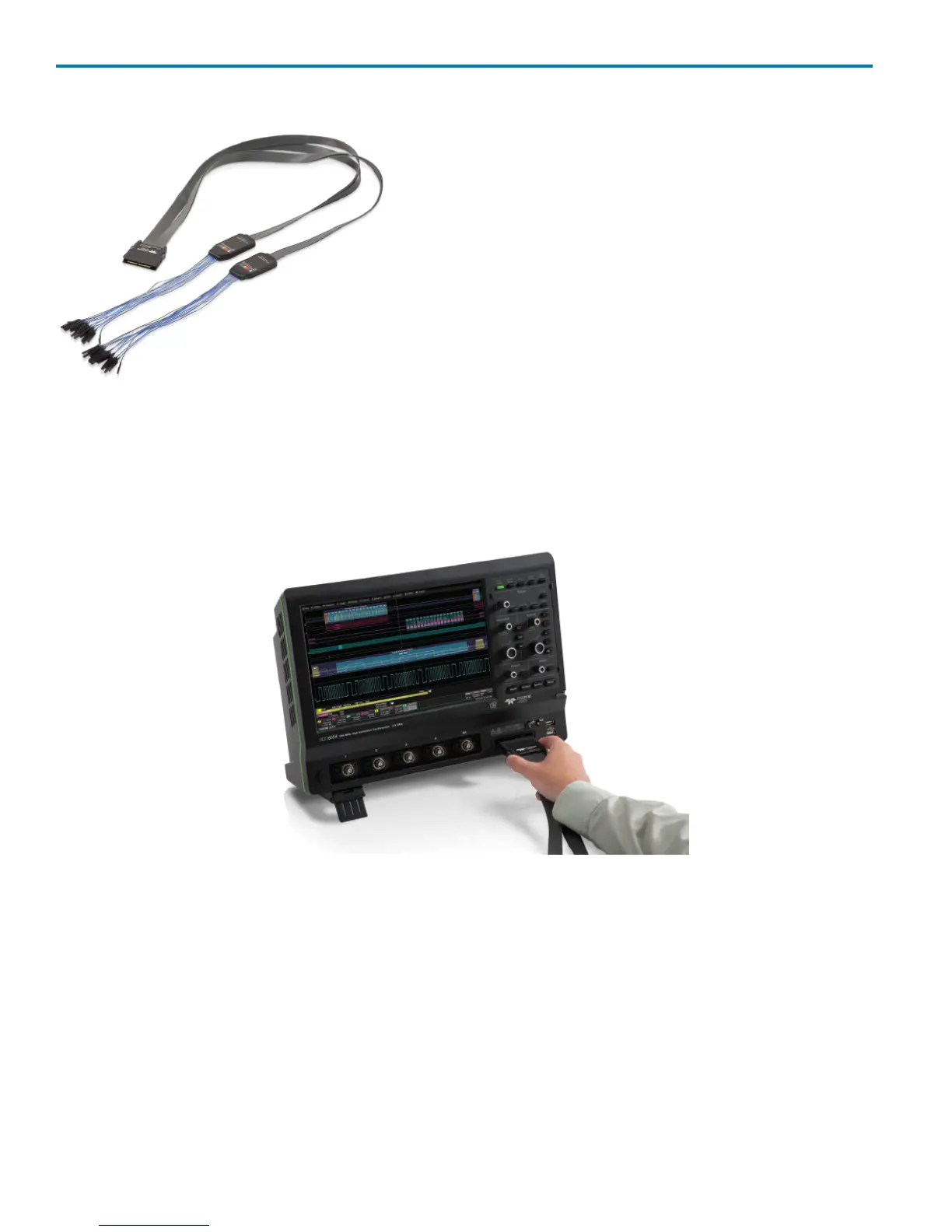

Standard with all HDO6000-MS model oscilloscopes, the
digital leadset enables input of up-to-16 lines of digital
data. Lines can be organized into four logical groups and
can be named appropriately.
The digital leadset features two digital banks with separate
threshold and hysteresis controls, making it possible to
simultaneously view data from different logic families.
Connecting/Disconnecting the Leadset
To connect the leadset to the oscilloscope, push the connector into the mixed signal interface below the
front panel until you hear a click.
To remove the leadset, press in and hold the buttons on each side of the connector, then pull out to
release it.
Grounding Leads
Each flying lead has a signal and a ground connection. A variety of ground extenders and flying ground
leads are available for different probing needs.
In order to achieve optimal signal integrity, you should connect the ground at the tip of the flying lead for
each input used in your measurements. Use either the provided ground extenders or ground flying leads to
make the ground connection.
8
922499 Rev B
