PROBES
LeCroy provides a passive probe for each WaveJet oscilloscope channel, as follows:
PP006A
350 and 500 MHz
PP010
100 and 200 MHz
Probe Compensation
Passive probes must be compensated to flatten overshoot. This is accomplished by
means of a trimmer at the connector end of the probe.
1. Attach the connector end of your PP006A or PP010 probe to any channel.
2. Connect the probe end to the CAL output connector at the front of the scope.

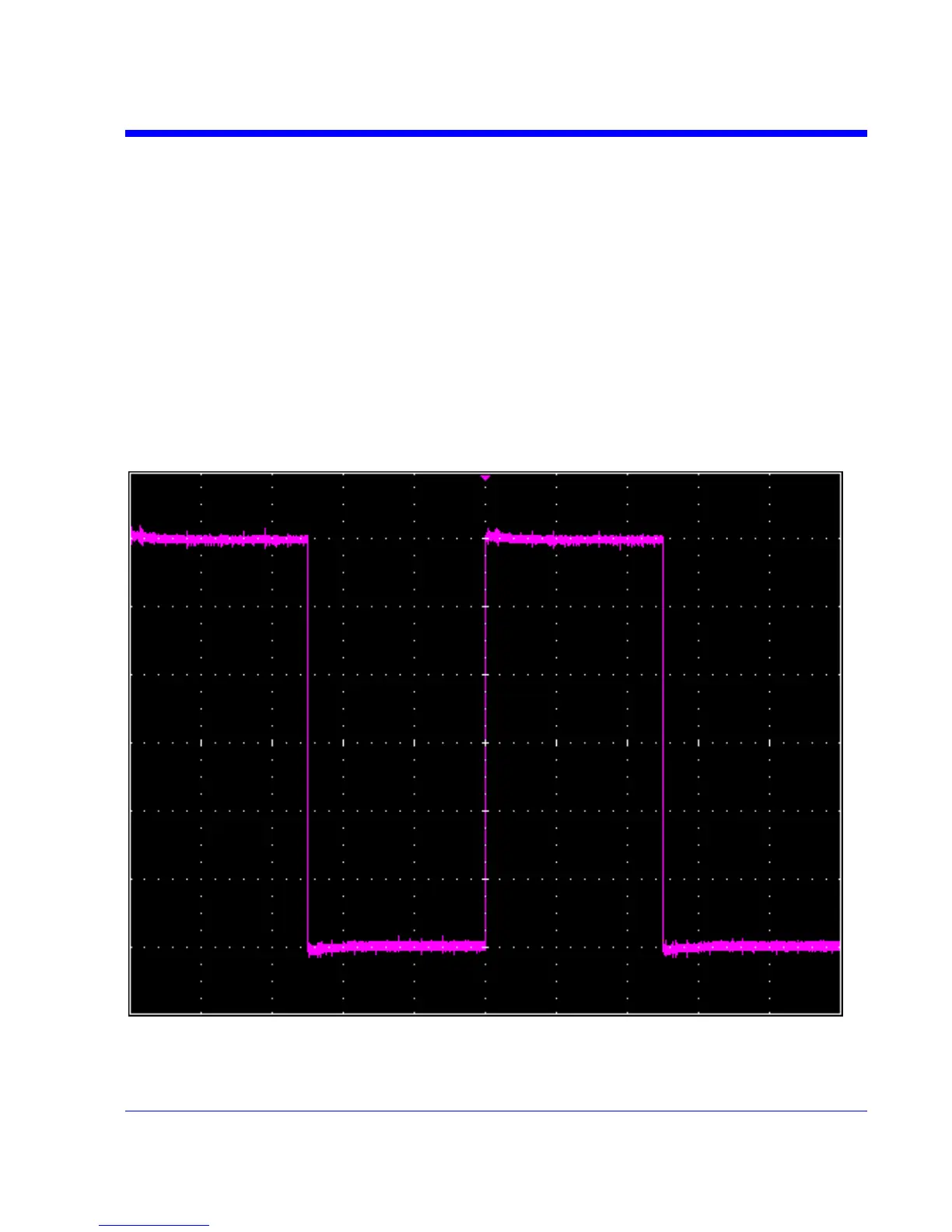

3. Adjust the trim pot at the connector end of the probe until the square wave is
as flat as possible.
