WaveJet 300A Series
62 WJ-A-GS-E Rev A

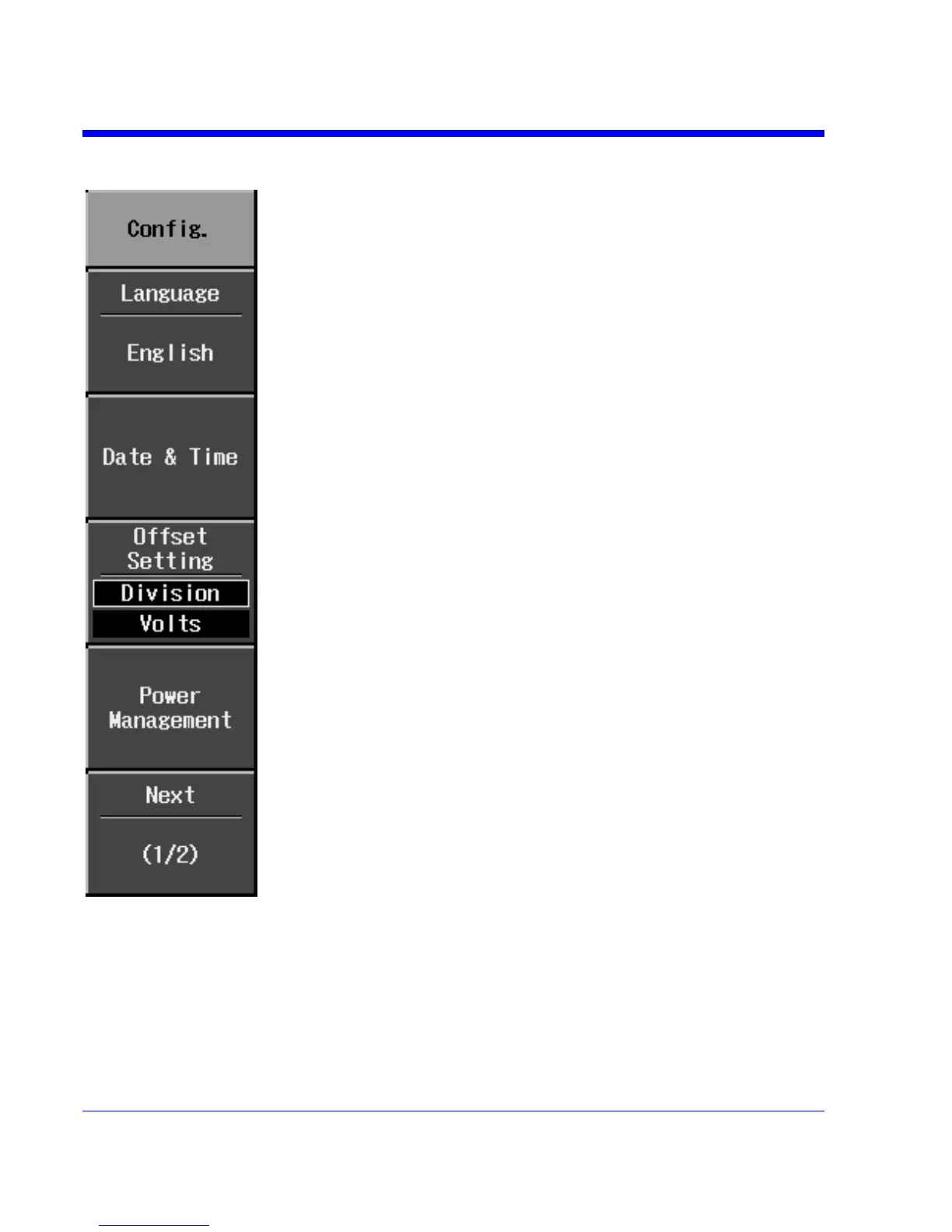

Configuration -- Page 1/2
Language selects a UI local language. No reboot is required
to accept a change in language.
Select Date & Time to set the current time and to determine
the clock mode at the bottom of the screen: real time clock
(RTC) or trigger time stamp (TRG).
As you change the gain, Offset Setting allows you to either
keep the vertical offset level indicator stationary (Division) or
to have it move with the actual voltage level (Volts). When
Division is selected, the waveform will remain on the grid as
you increase the gain; whereas, if Volts is selected, the
waveform could move off the grid.
If desired, use Power Management to set the screen saver
timer (up to 15 minutes) and the power off timer (up to 60
minutes). These features can be set to Never also.
You can also set the backlight (screen) intensity (3 levels),
which is different from grid intensity (see menu 2/2).
