LeCroy WaveJet 300A series User Manual

WaveJet 300A Series
40 WJ-A-GS-E Rev A

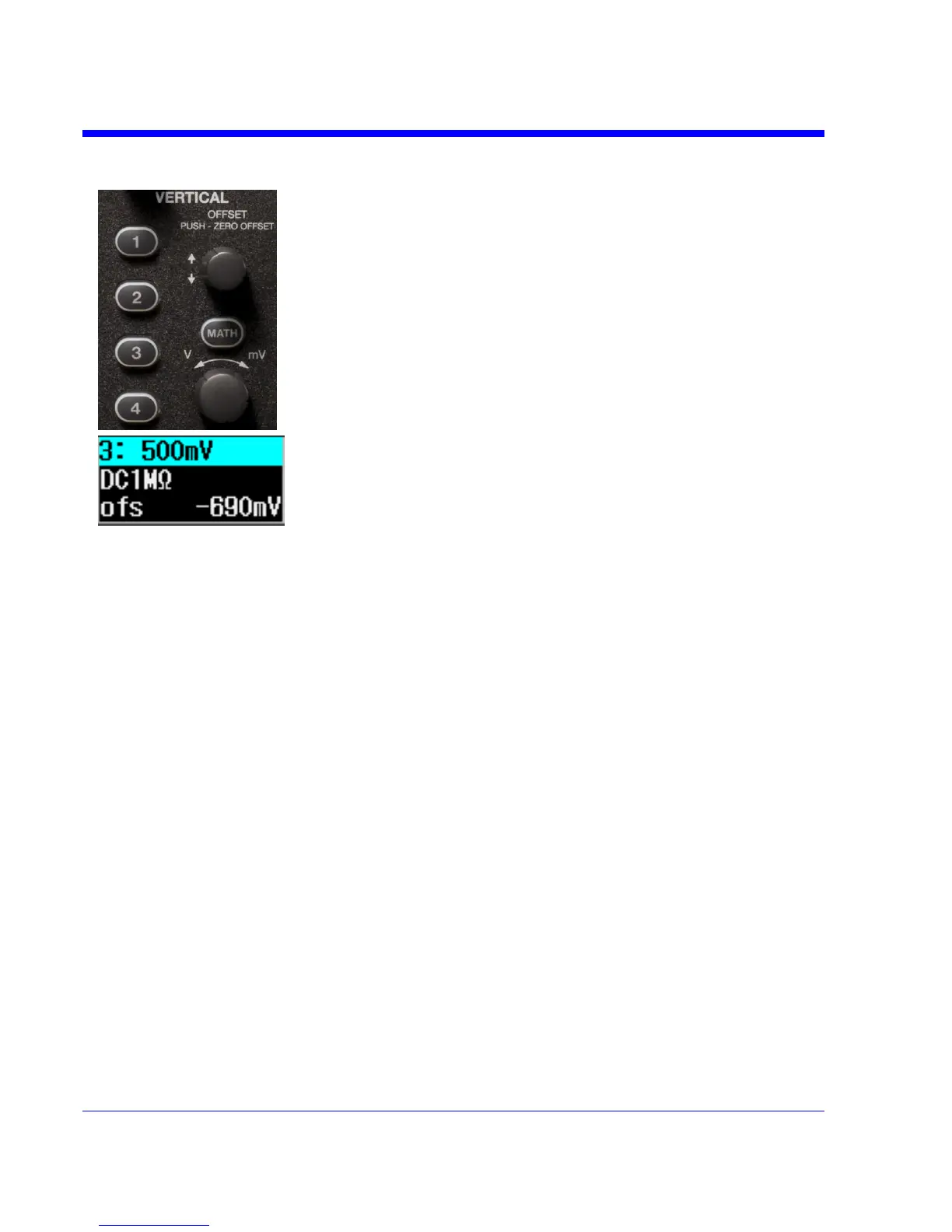

Adjusting the Waveform's Position
Turn the vertical offset adjust knob in the VERTICAL group
of controls.
The offset value is displayed in the bottom line of the trace
descriptor label.

LeCroy WaveJet 300A series Specifications

General

Channels	2 or 4
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Maximum Input Voltage	400 V (DC + peak AC)
Power Supply	100-240 VAC, 50/60 Hz
Bandwidth	100 MHz, 200 MHz
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse
Interface	USB
Sample Rate	2 GS/s (1 channel), 1 GS/s (2 channels)
Display	8.4-inch color TFT LCD
