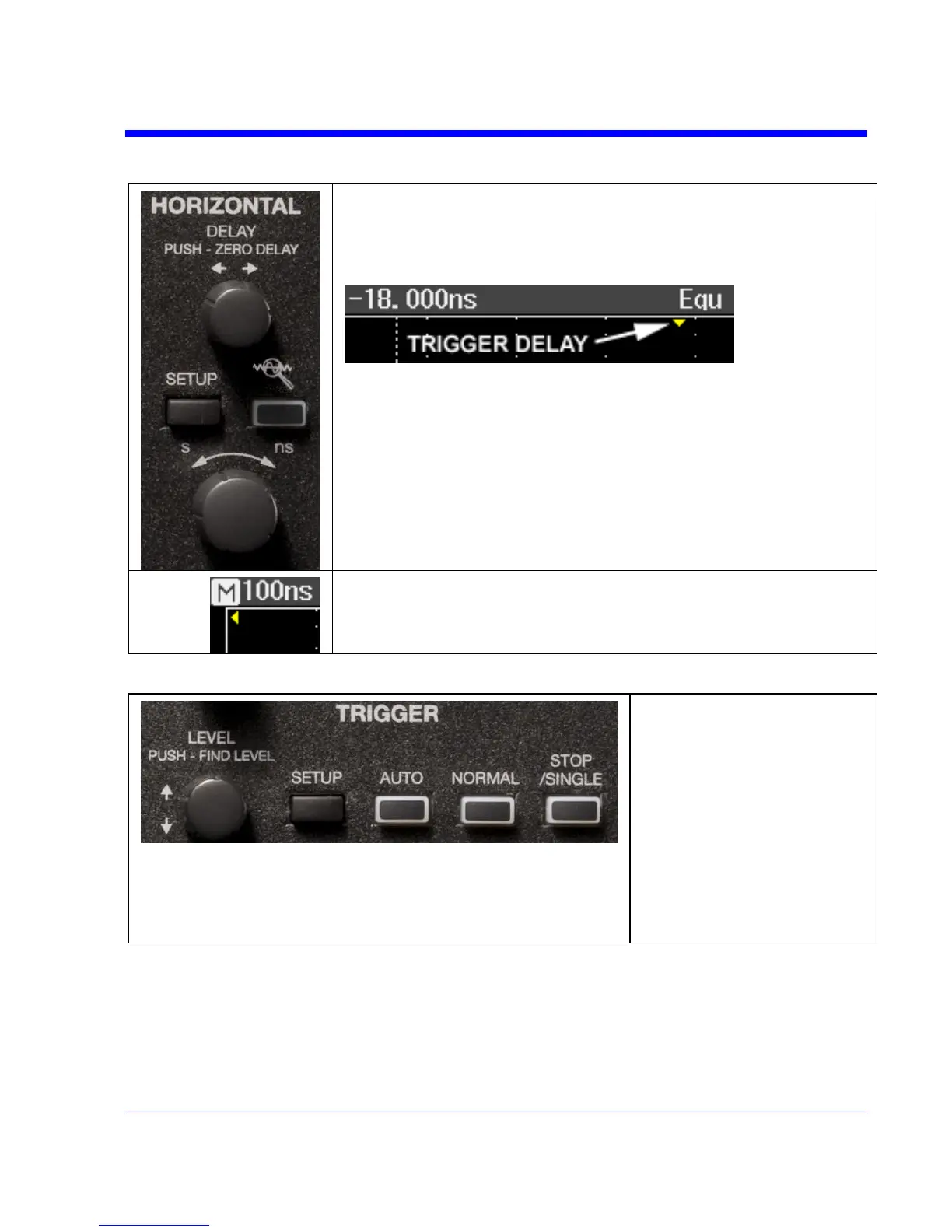

Horizontal Trigger Setup
Turn the DELAY knob in the HORIZONTAL control group to
adjust the trigger's horizontal position. The trigger location is
shown by a marker at the top of the grid and the time value is
given in the status bar above the grid:
Post-trigger delay is indicated by a left-pointing arrow at the
left edge of the grid.
Vertical
Turn the LEVEL knob in
the TRIGGER control
group to adjust the
vertical threshold of the
trigger or the highlighted
trace. Level defines the
source voltage at which
the trigger will generate
an event: a change in the
input signal that satisfies
the trigger conditions.

LeCroy WaveJet 300A series Specifications

General

Channels	2 or 4
Vertical Resolution	8 bits
Input Coupling	AC, DC, GND
Maximum Input Voltage	400 V (DC + peak AC)
Power Supply	100-240 VAC, 50/60 Hz
Bandwidth	100 MHz, 200 MHz
Input Impedance	1 MΩ
Trigger Types	Edge, Pulse
Interface	USB
Sample Rate	2 GS/s (1 channel), 1 GS/s (2 channels)
Display	8.4-inch color TFT LCD
