LeCroy WaveSurfer 400 Series

To Next Page

To Previous Page

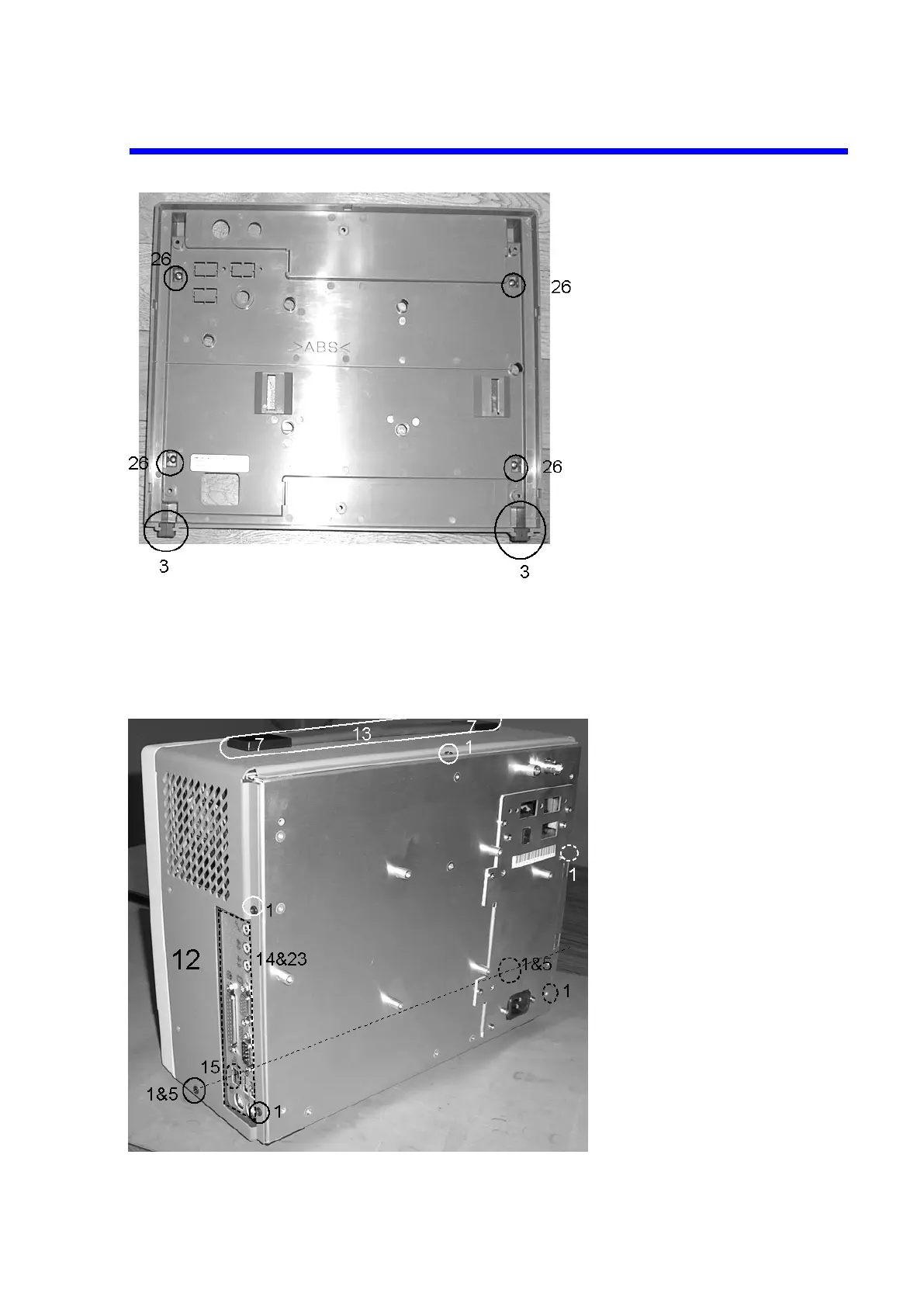

B. Removal of the Top Cover Assembly

• B1 Remove the six KB (+) 3x6(BLACK) screws (Item Fig No.1) (two with nylon

washer, four on the top cover of left and right).

[B1]

Mechanical Part & Removal 7-7
