LeCroy WaveSurfer 400 Series User Manual

b. DC 1MΩ

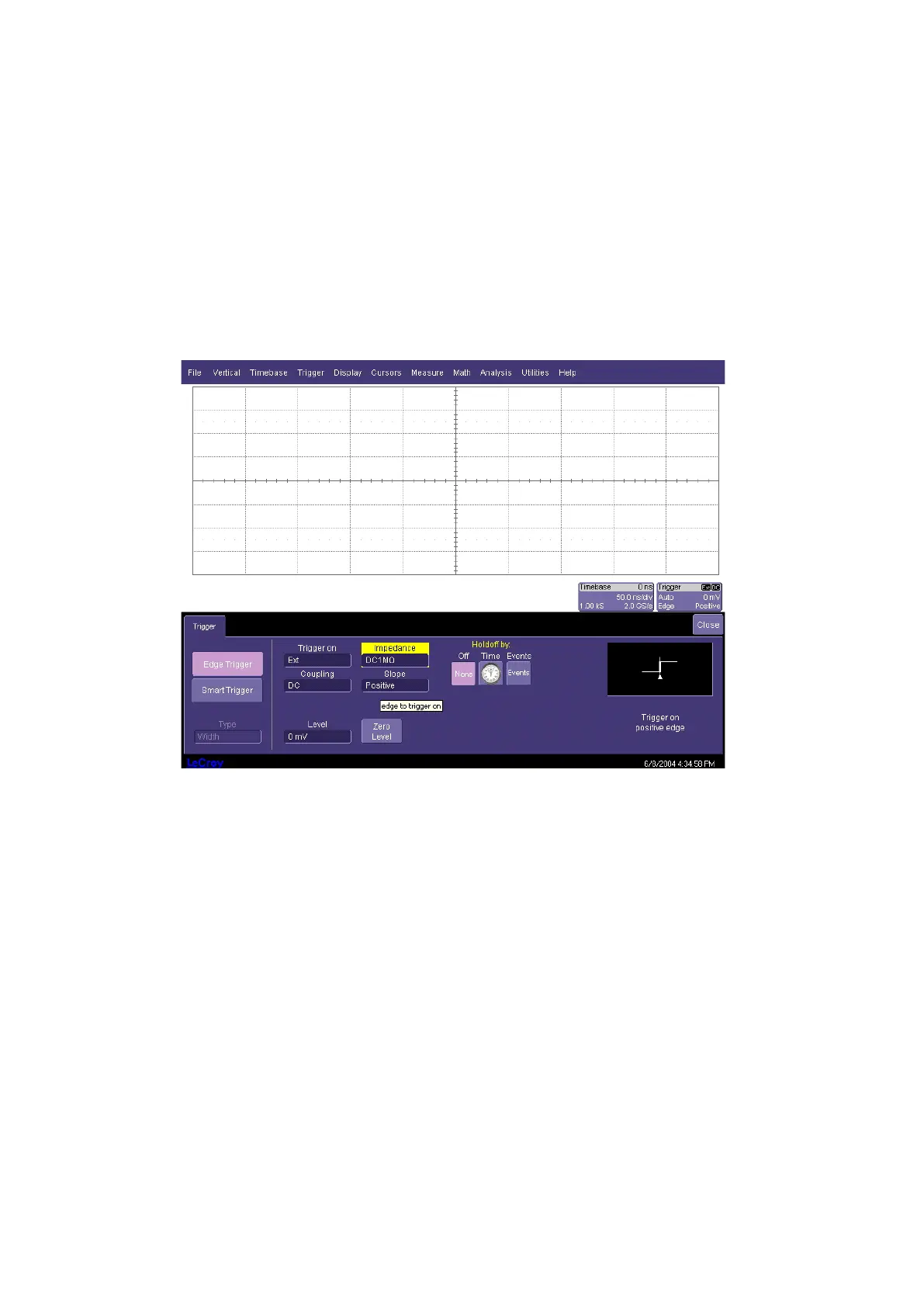

 Recall Leakage – 1 Mohm ext x1.lss or configure the DSO as shown in 5.5.2.a
and make the following changes:
Select Setup trigger
Set Trigger on : EXT
External : DC 1MΩ
 Connect the DMM to External.
 Measure the voltage and enter it in Table 3. Compare it to the limits.
 Recall Leakage - 1 Mohm ext x10.lss or Set Trigger Source to Ext/10.
 Repeat the test.
 Record the measurements in Table 3, and compare the test results to the
limits in the test record.
Rev. D Sept 2007 Performance Verification 5-13
