Page 32 Transport/Start up Group 5
Release R1.07 en JET2 neo

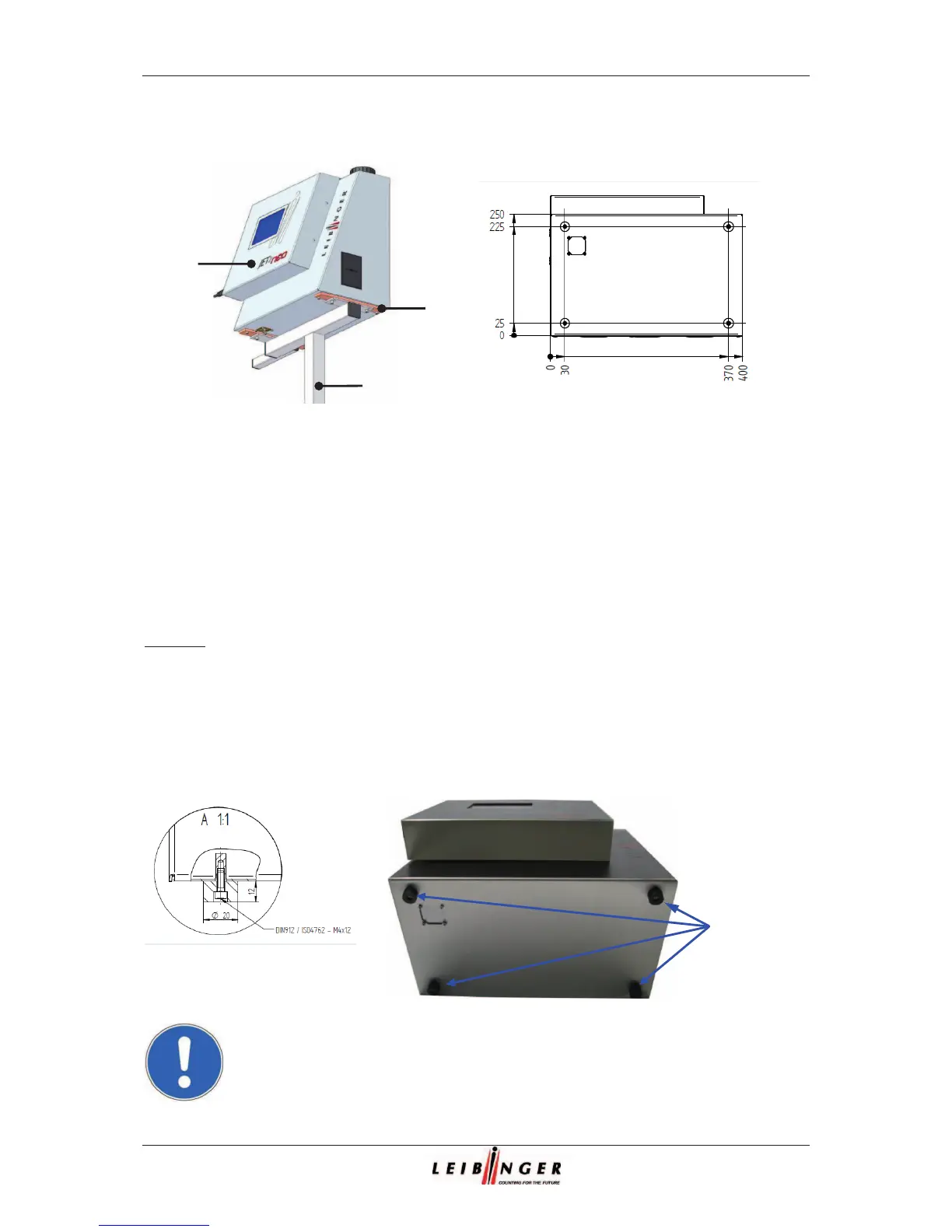

Figure 4
Movable underframe for JET2 neo
Ground plate
1 – Movable underframe
2 – Adapter plate JET2 neo (2x)
3 – Printer JET2neo
For this it is expedient to place the device on a device support.
Remark: Device carrier set is available as an accessory.
The device has four fastening possibilities for secure setting up and should be screw
connected at the place of setting up.
Figure 5
Fastening possibilities
A place of setting up with sufficient load bearing capacity and stability
must be chosen. Prior to assembly the place of setting up must be
cleaned of dirt and contamination (residue of lubricants etc.) .
2
3
1
Fastening
points
