The signal type which should be used as encoder source has to be
set in the software of the
JET2 neo under Main menu X
X
Settings
X
Basic settings
X
Interfaces.
You will find a circuit diagram of the interface in the appendix of this
manual!
5.5.1.2 Mechanical installation
For the mechanical installation of the shaft encoder you have to pay
attention in any case that the encoder is protected against axial and
radial strain during the mounting and the continuous operation. For
this a rubber gaiter or a plastic coupling is use
d.
If the conditions allow it, the shaft encoder can be also adapted to a production line
with a friction wheel.
Caution
– Risks of injury!
The shaft encoder has to be installed or mounted that no risks of
injury can occur!
5.5.2 Interface X5 (PrintGo)
The interface “X5” provides the connection of an external PrintGo-signal. All
common product detectors (
e.g. light barrier, product sensor etc.), 24V NPN-
as
well as 24V PNP
-switching can be connected.
Regarding the software you can select additionally if the positive edge or the
negative edge should be used for the release of the print out.
Note:
To inform the JET2 neo
when a print text should be printed, you require a so-
called Print-Go signal.

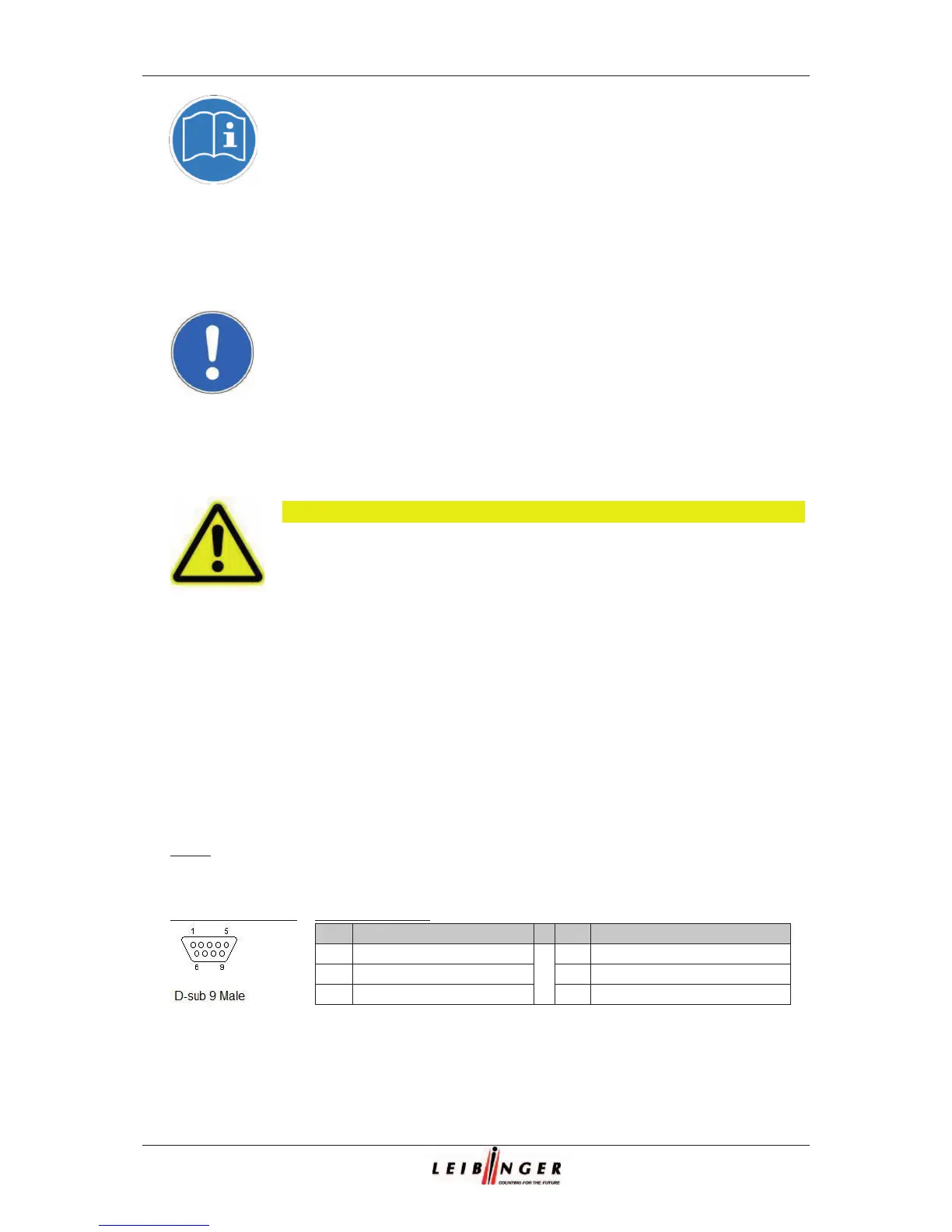

Plug assignment:
Pin connection:
Pin
Designation
Pin
Designation
1
+24 V
(1)
4
PrintGo
2
/PrintGo
5
PrintGo_Gate
3
GND
