6.4 Essential operating- and information elements
This chapter describes the essential operating- and information elements of the
LEIBINGER JET2 neo basic menu.

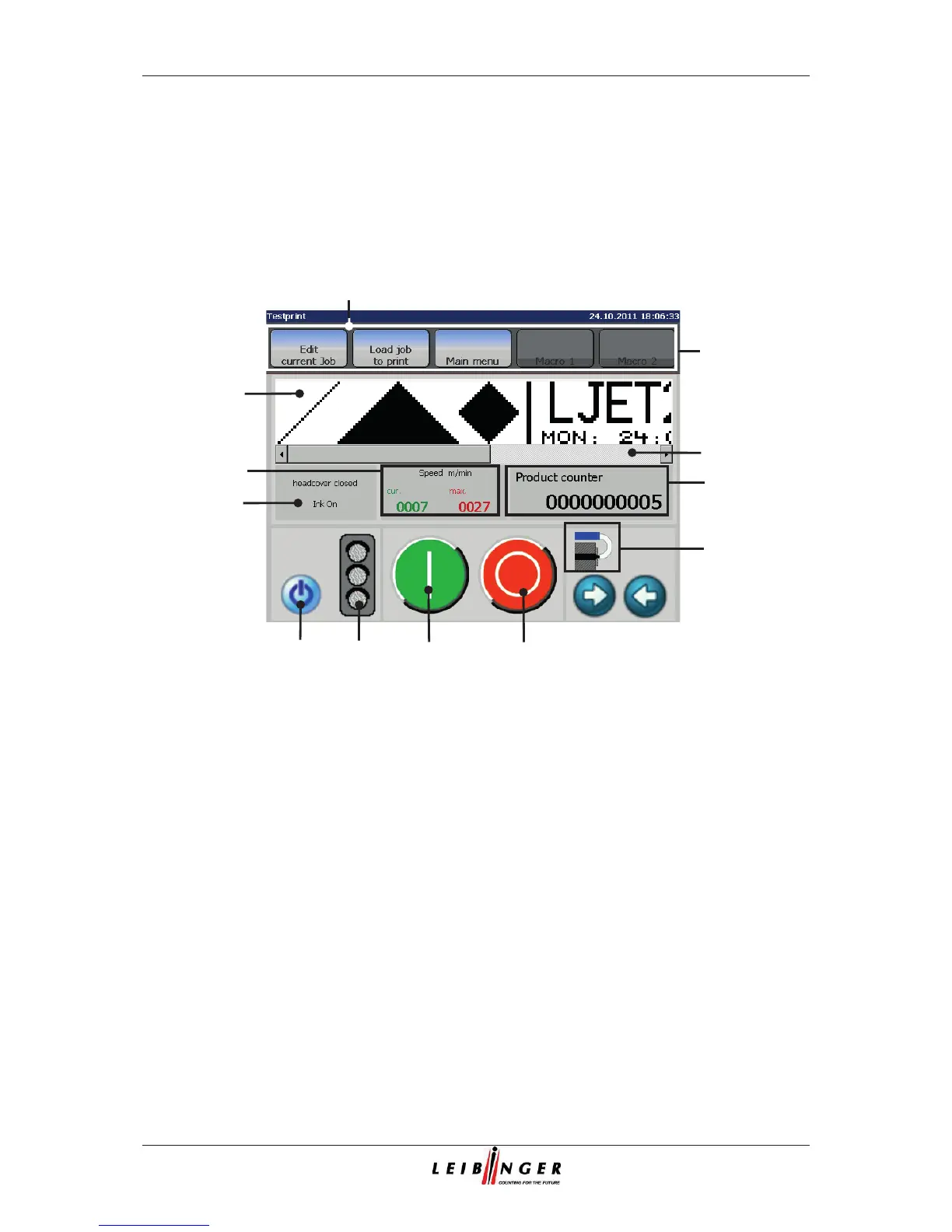

Figure 15
Basic menu (Construction)
1 – Title bar
7 – Status field <Product counter>
2 – Display area
8 – Status field <Nozzle>
3 – Scroll bar of the display area
9 – Device status (traffic light)
4 – Menu bar
10 – Button <Off/Shut down>
5 – Status field <Printing speed>
11 – Button <Printstart>
6 – Status field <General>
12 – Button <Printstop>
 Title bar (1): The title bar is displayed at the top of the main menu and contains the
name of the active print job, the current date and the current time as well as the
appropriate information if the password prompt is activated.
 Display area (2): In this area the printing data of the loaded job which should be
currently printed or loaded is displayed in the WYSIWYG-mode.
 Scroll bar of the display area (3): You can view the whole display area if necessary
by using the scroll bar.
