Group 6 Operation – Elements and procedures Page 51
JET2 neo Release R1.07 en
6. Operation
6.1 Construction/Structure of the device
The high-performance LEIBINGER JET2 neo is manufactured of a solid two parts
stainless steel cabinet. Due to the two parts construction you will get a thermal
separation between the hydraulic- and electronic section. The device consists of the
following main components.

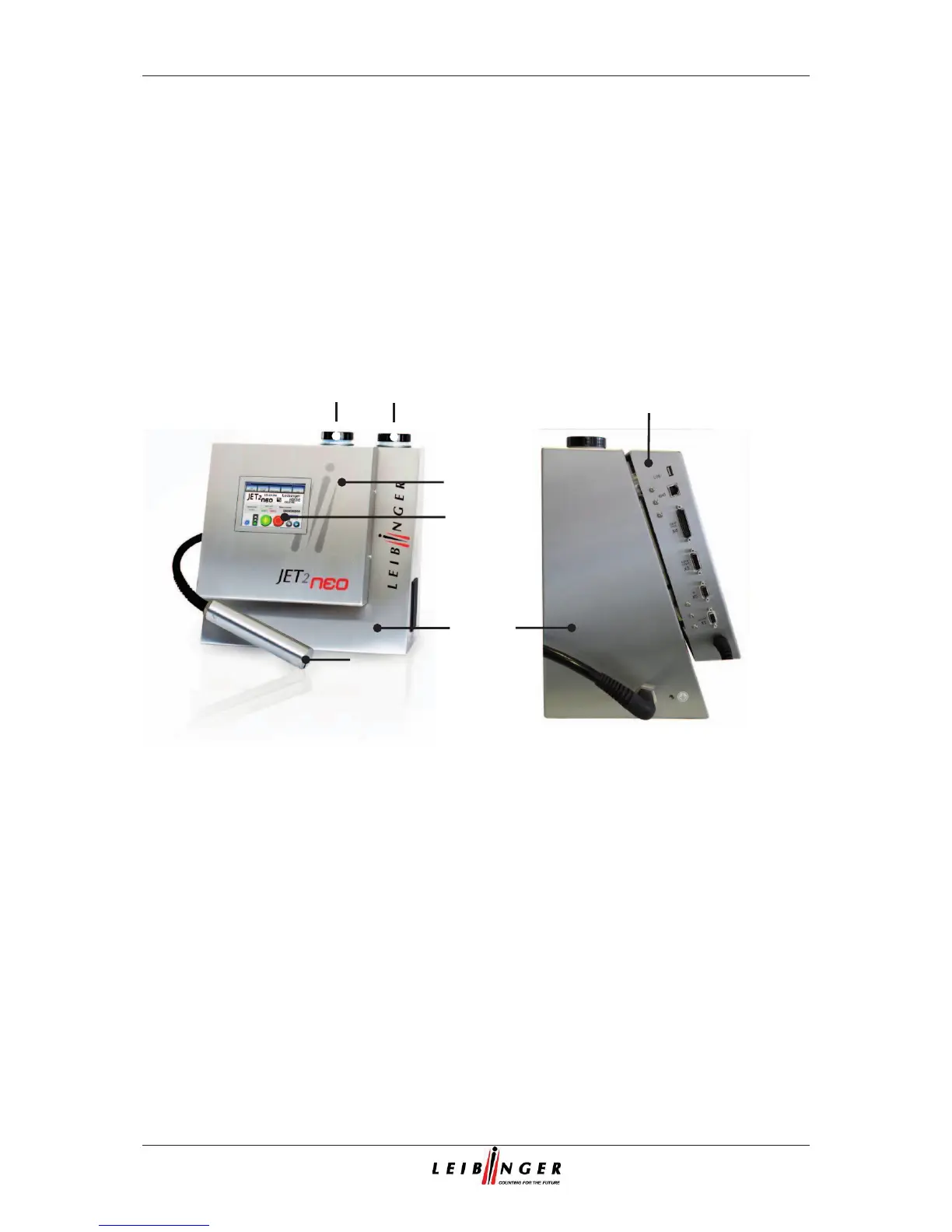

Figure 12
Equipment configuration (General view)
1 – Electronic cabinet
4 – Reservoir tank „Solvent“
2 – TFT – Touch Display
5 – Reservoir tank „Ink“
3 – Hydraulic cabinet
6 – Print head with umbilical
In the closed electronic cabinet you will find the essential electronic components as
power supply, the TFT-Touch Display as well as the controller board.
The central arranged TFT-Touch Display describes the interactive interface for the
operator. This central entry medium with its 5.7” color display with backlight allows
clear, self-explaining operator guidance without additional keys and switches.
In the hydraulic cabinet you find all components which are required for the
transportation and preparation of ink as well as the two reservoir tanks for ink and
solvent. The unpressurized tanks can be refilled without interrupt procedure, odorless
and splash-free during the operation.
1
6
4
3
5
1
3
2
